T1000

Description

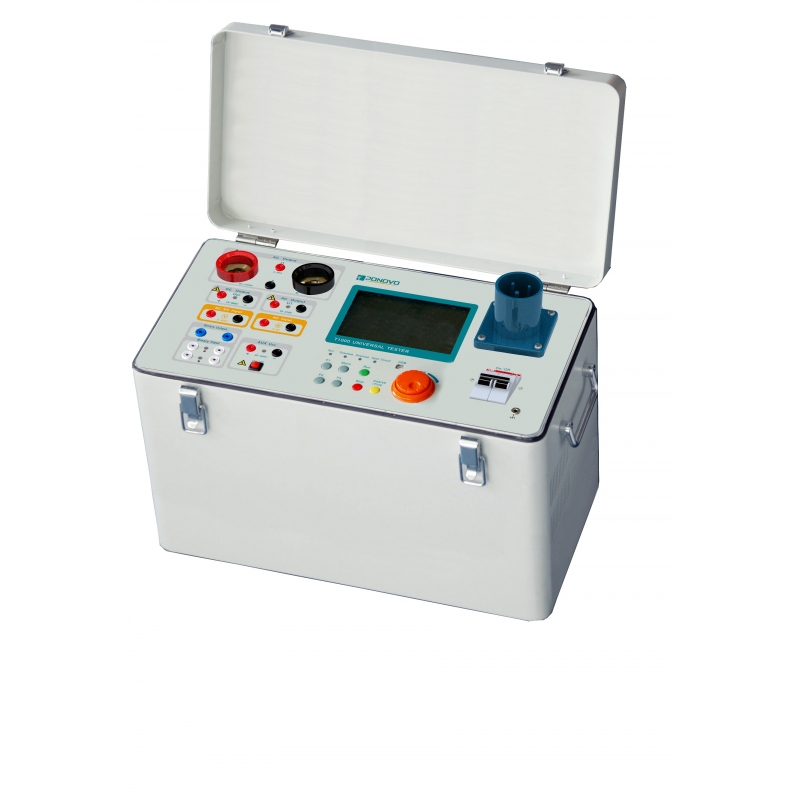

T1000 primary injection test set has a light weight and 2 minutes output time at 1000A features. This ideal primary injection test set with LCD display, quick control button, and rotating mouse, makes it very easy and convenient to operate.

Features:

·       2 minutes continuous output at 1000A.

·       Flexible control over output, such as manual, ramp, etc.

·       Independent Aux DC supply.

·       In-built multi-meter facility.

·       Typical CT testing functions are also included.

·       Weight: 30kg.

Main Specifications

AC Current (I1)



Range

1000A/7000VA

Accuracy

0.5%

Load time

120s at 1000A

AC Voltage (U1)



Range

250V/750VA

Accuracy

0.5%

Load time

Continuous

DC Voltage (UDC)



Range

300V/750W

Accuracy

0.5%

Auxiliary DC supply

20-240V

Voltmeter

0-600V AC/DC

Ammeter

0-6A AC/DC

Binary input

2

Binary output

1

Dimension

260*330*500mm

Weight

30kg
