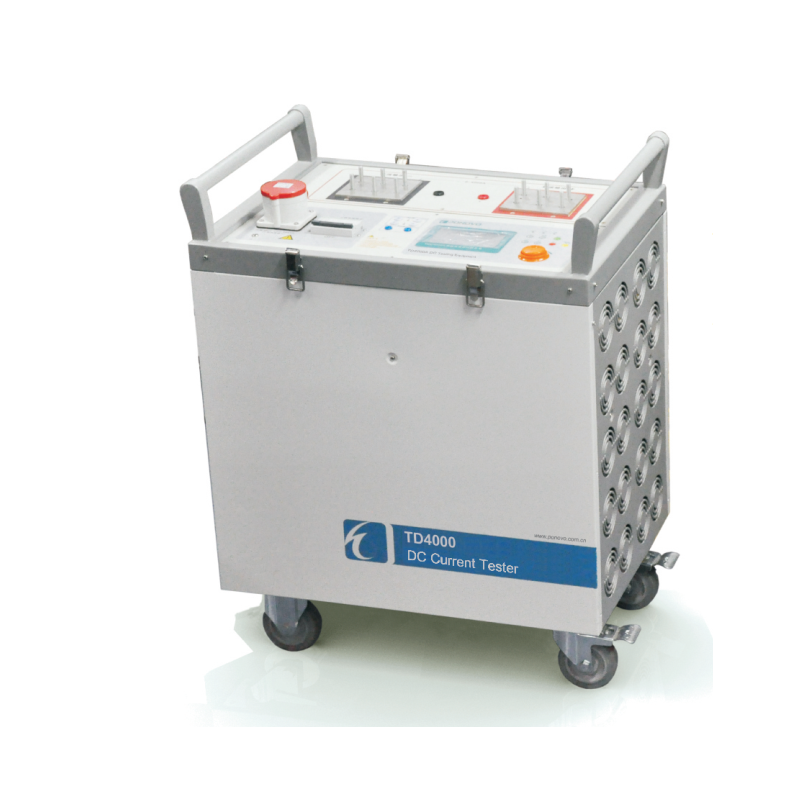

TD4000

Description

TD series testing equipment consists of control unit and DC high current output unit. TD4000, the DC test equipment has an output 0-4000A with 0.1% high accuracy.

Features:

·       Manual and auto test by using software.

·       Output DC current waveform by using USB port.

·       Multi high current connector for busbar.

·       Easy panel control with LCD display and rotary encoder.

Main Specifications

Output range

0-4000A

Port voltage

Max 5V

DC current output accuracy

0.1%

Display accuracy (rd)

0.2%

Display accuracy (rg)

0.05%

Binary input

2

Binary output

1

Power supply

3x380VAC, 22kVA

Weight

110 kg
