OEM HV Supplies

Description

The PPD Series DC and the TPFT Series AC power supplies are designed for OEMs requiring high voltage supplies to include in their product design, for deployment in factory testing manufactured products, or to provide a testing service or some other application. HVI produces many shapes and sizes of AC and DC high voltage supplies from 5 kV – 500 kV, 5 mA to 5 A.

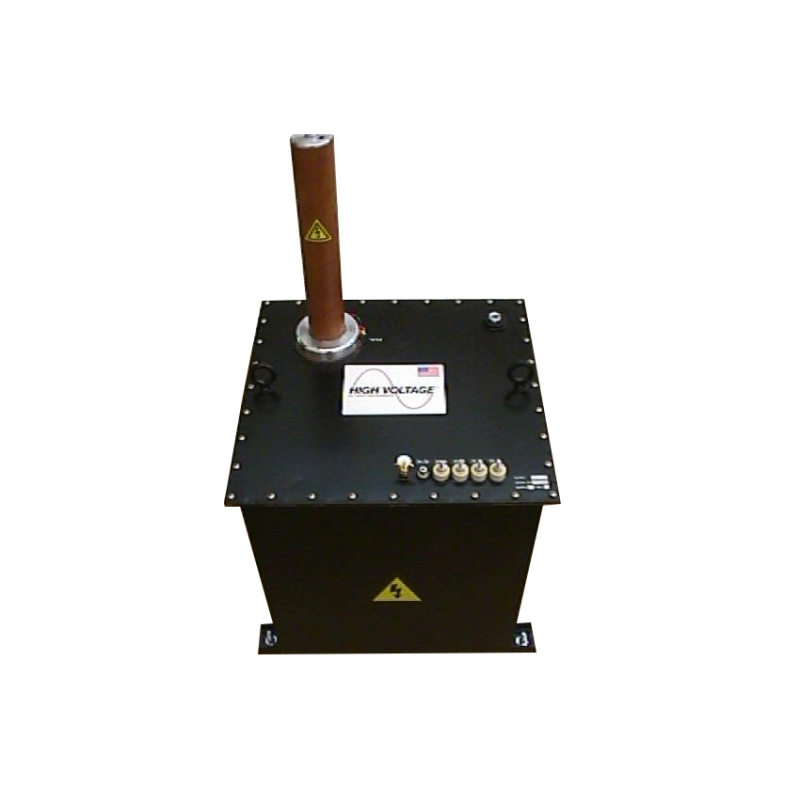

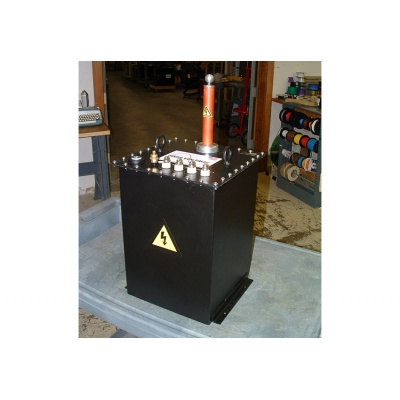

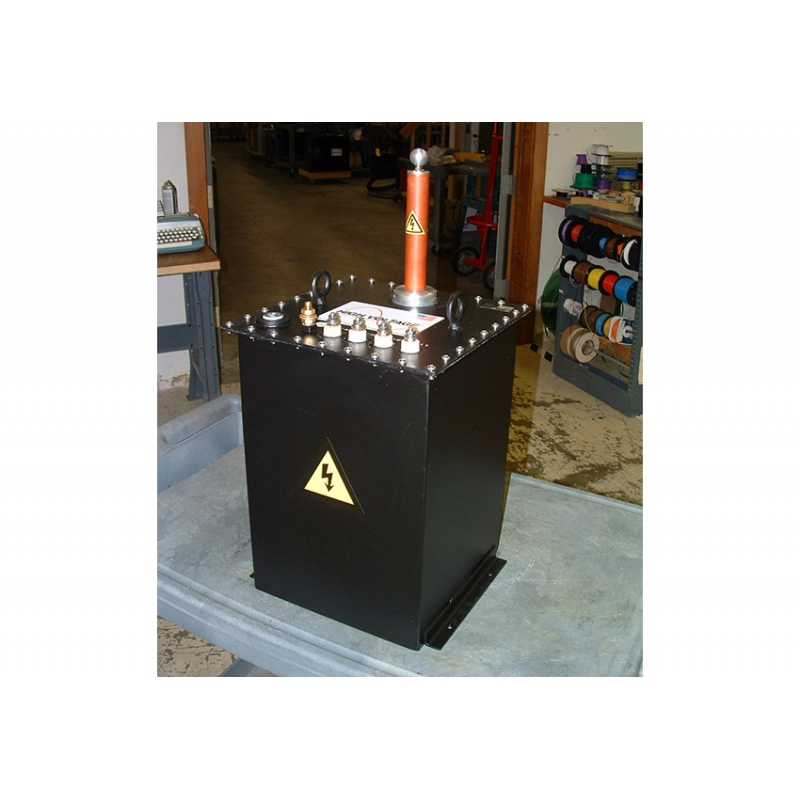

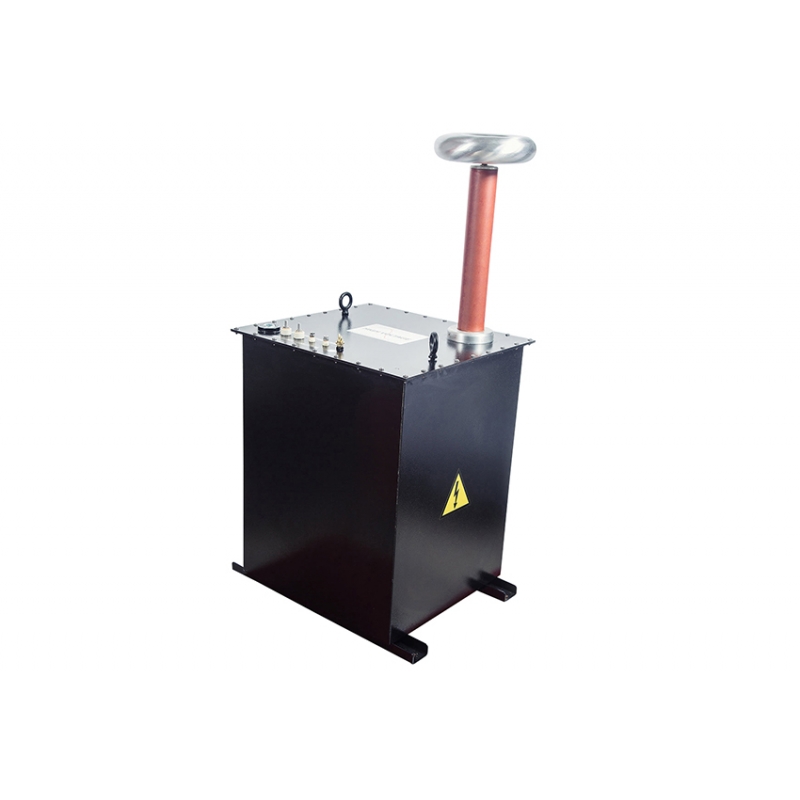

The ITO Series is a custom-engineered and produced line of isolation transformers designed to provide up to 100 kV DC isolation between circuits. These oil-insulated transformers are housed in steel tanks and are available in single or three phase configurations.

Features

All HVI power supplies are designed with oil insulated transformers, rectifiers, resistors, and other required components. Many models come standard, while others are custom designed and manufactured. Some are <10 pc corona free for partial discharge testing applications. Contact HVI sales at 518-329-3275 or sales@hvinc.com to discuss your specific needs.

  • Power ratings up to 3 kVA
  • Frequency input range 30 Hz – 180 Hz
  • Oil insulated to provide consistent operating conditions
  • Low loss designs to minimize thermal rise
  • Low capacitance between windings to reduce stored energy
  • Conservatively designed to offer long life under continuous duty
  • HVI custom-designed HV bushings are the smallest available
  • No standard models – made to customer specification

Specifications

Nearly any voltage and current rating within the typical specification limits shown below is available.

LV Input:

60 – 300 V AC, 30 – 180 Hz

HV Output:

Cable receptacles for I/O or single bushing

Output:

60 – 300 V AC @ 10 A

Isolation:

100 kV DC between windings

Custom supplies are available, and the power supply sections of most HPA Series models are available. Please contact the factory for more details.

Applications

The ITO Series is designed primarily for imaging applications, providing isolation for x-ray tubes, filaments, armature drives, etc.
