VLF-4022CM(F)

Description

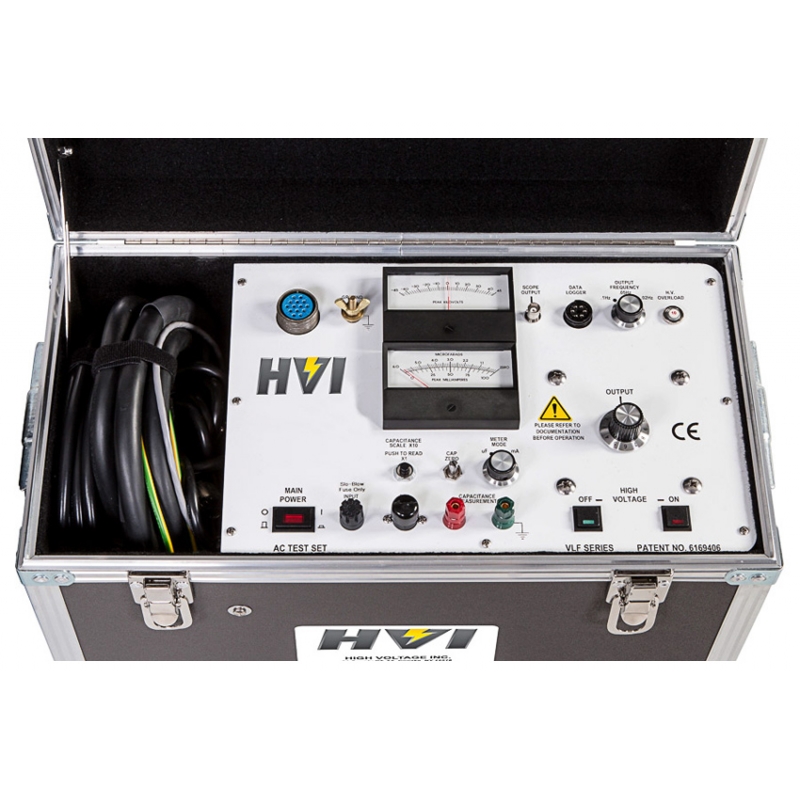

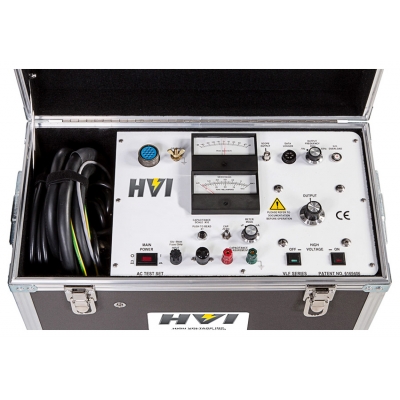

VLF-4022CM(F) has a 44 kVac peak output suitable for testing cables rated up to 25 kV. Its high load capacity can test over 10 miles (16 km) of cable, depending on type. This model includes a charging current and load capacitance meter, and a center zero peak kilovolt output meter. Two-piece construction makes it easy to transport and store.



Specifications

Input: 120 V, 60 Hz, 5 A peak, 2.5 A average
(F) 230 V, 50/60 Hz, 3 A peak, 2 A average

Output: 0 – 44 kV AC peak, 0.1/0.05/0.02 Hz sinusoidal

Duty: Continuous

Load Rating: 1.1 µF @ 0.1 Hz
                       2.2 µF @ 0.05 Hz
                       5.5 µF @ 0.02 Hz

Voltmeter: Center zero -45 – 0 – +45 kV AC peak

Current Meter: 0 – 100 mA peak

Load Capacitance Meter: 0 – 6 µF

Output Termination: Shielded RG/8U output cable – 20 ft. (6 m)
                                   Interconnect cable – 10 ft. (3 m)

Size & Weight(W x D x H)   : Controls: 22 x 11.25 x 15.25 in., 50 lb. 559 x 286 x 387 mm, 23 kg

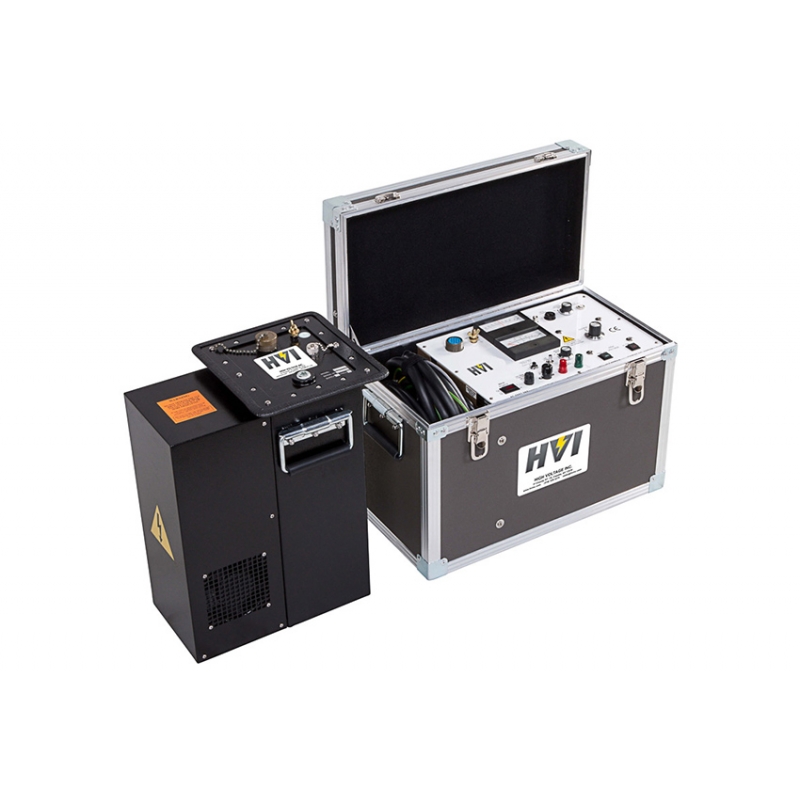

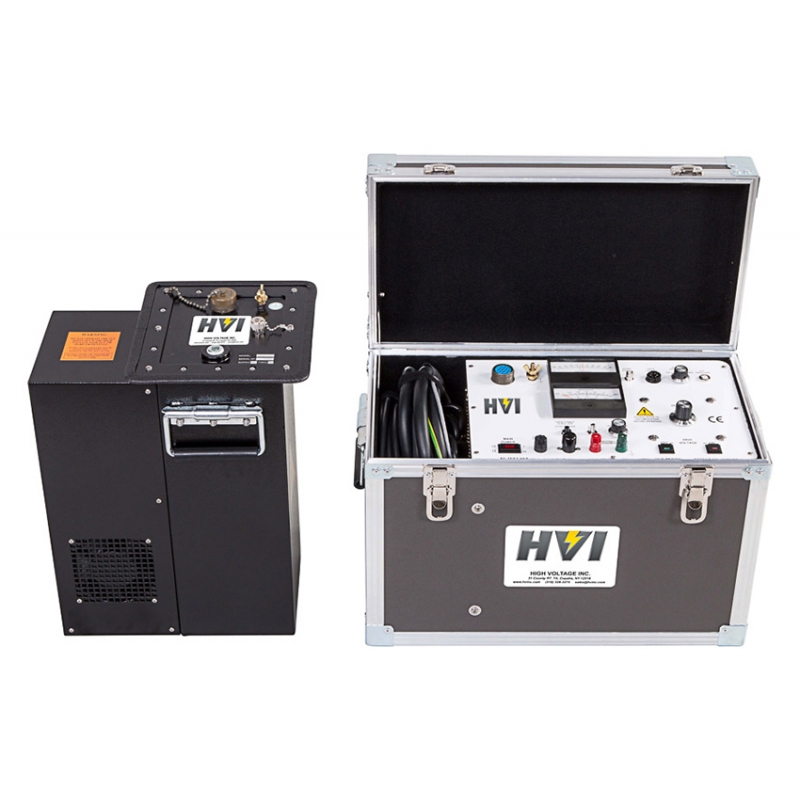

                                                  HV Tank:14.5 x 10.5 x 19 in., 72 lb. 368 w x 267 d x 483 mm, 33 kg
