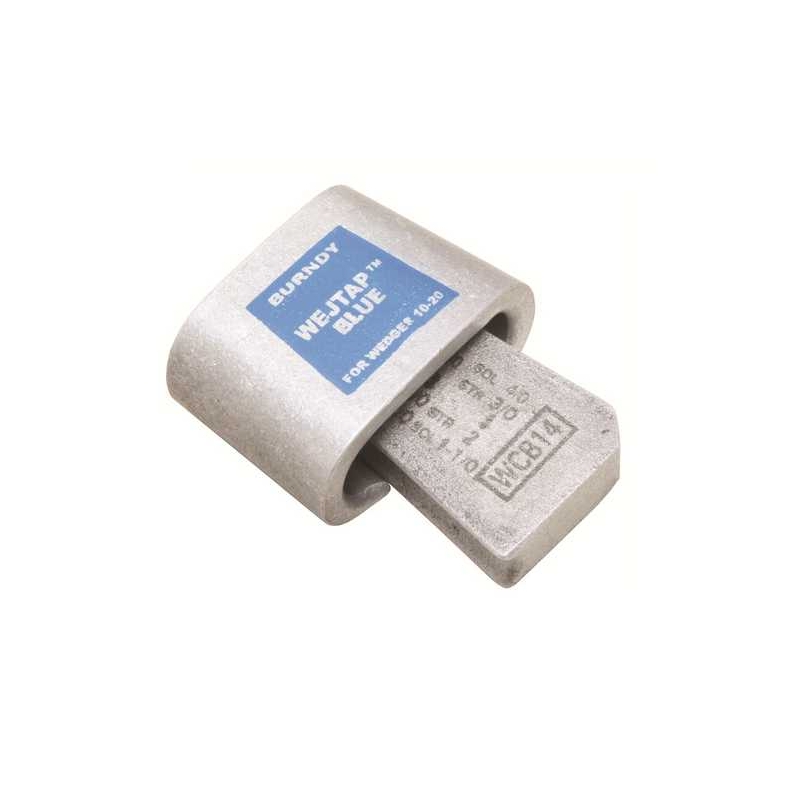

WEJTAP - Wedge Tap Connectors

Description

WEJTAPTM connectors have been subjected to extensive tests simulating the most severe service and weather conditions. The WEJTAPTM has been designed to operate cooler than the attached conductors.

C-member bodies are color-coded and the wedges are marked with nominal conductor run and tap ranges. WEJTAPTM connector packages are labelled with variety of common conductors with their nominal ranges.

·       WEJTAPTM connector wedges are marked with nominal ACSR, Aluminum, and Copper concentric standard conductors.

·       Red WEJTAPTM connector range Run 8-1/0 Tap 8-2.

·       Blue WEJTAPTM connector range Run 2-300 Tap 6-300.

·       Yellow WEJTAPTM connector range Run 266.8-1590 Tap 6-1590.

All WEJTAPTM wedges contain a clearly defined chamfer on the large end of the run conductor groove to identify the “large run” groove. Installers will appreciate the convenience of visual or hand identification for correct wedge positioning.

WEJTAPTM wedges are driven between the run and tap conductors and activate the spring characteristics of the “C” shaped body. This action maintains contact pressure even when the connection s subjected to severe climatic and electrical conditions.
