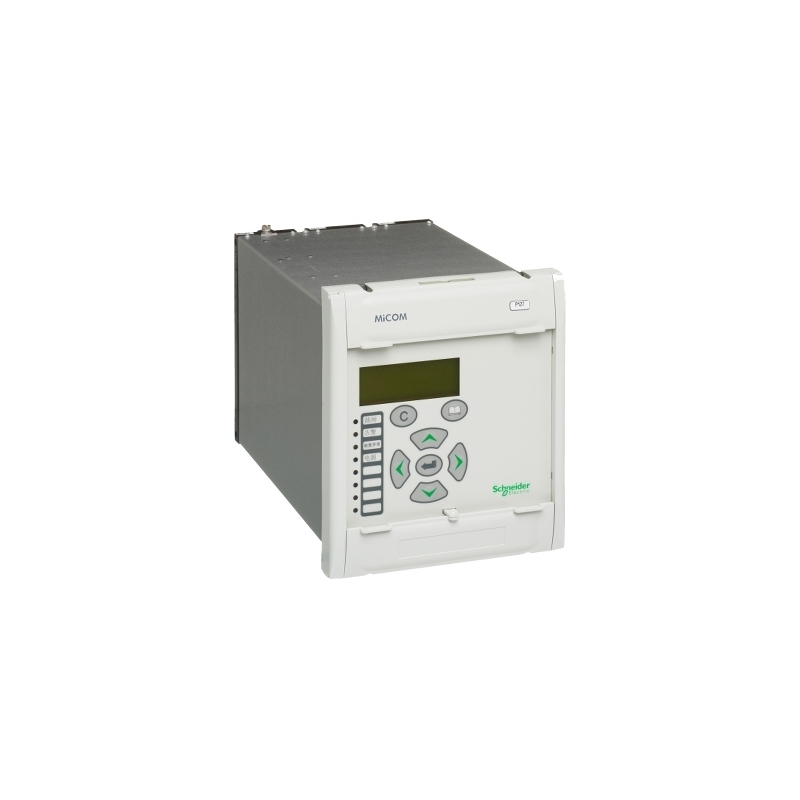

MICOM P22X

Description

Motor and Overcurrent Protection Relays

MICOM P22X range of protection relay is designed for motor protection applications and include a complete set of protection functions. Models available: MICOM P220, MICOM P225

Features

MiCOM P22x is a timesaving and cost-effective, as well as reliable and increasing motor efficiency

Protection for motor current, voltage and temperature

MiCOM P22x performs a complete set of motor protection functions on current, voltage and temperature measurements. In addition to these basic functions, the relay carries out large number of other functions that enable it to protect and run the motor more effectively. System reliability is further enhanced via checks on bus voltage prior to start-up, supervision of trip-circuit wiring continuity and protection against circuit-breaker failure.

Functions against high inertia loads and anti-backspin ensure that the rotor stops before the motor can be re-started. The
MiCOM P22x relay provides a true RMS based thermal image allowing efficient protection against overload phenomena due to the presence of harmonic components.

Comprehensive functions for a large range of applications


The
MiCOM P22x series provides comprehensive protection functions for a large range of applications. It is available in both rack and compact design for optimized installation costs. MiCOM P22x improves monitoring conditions, reduces the need for documentation and training, and frees up users’ time.

Standard Manufacturers Warranty: 2 years
