Manual Hoist

Description

Manual hoists are used in various construction and maintenance works performed on electrical systems. They have locking devices and a gradual load control, provided for use in two different positions (left or right of the load application axis).

Hoists With Nylon Straps

01 and 02-ton hoists are offered with plastic end cap for manual work using the rubber glove method.

WARNING

These hoists shall not be used as insulating tools for live line works. For that purpose, the nylon straps shall be used with the insulating link sticks for hoists and rope blocks, according to the recommended safety distances. The nylon straps can be ordered separately as replacement parts.



Cat. No.

Description

Approx. Weight (lb)

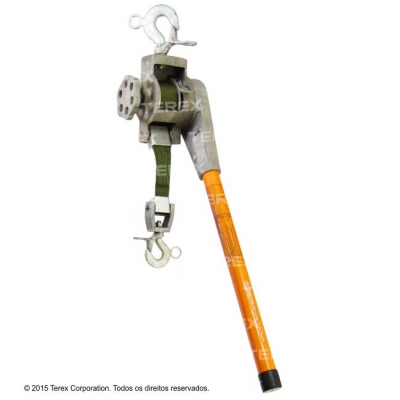

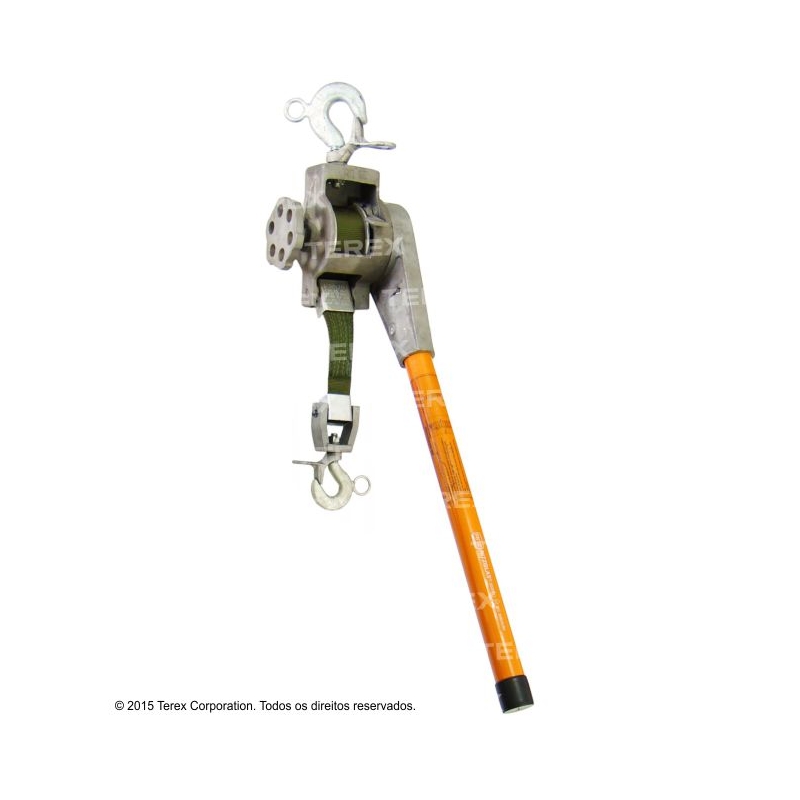

 RC309-0323

Hoist with nylon strap and regular handle, work load up to 1 ton

13.89

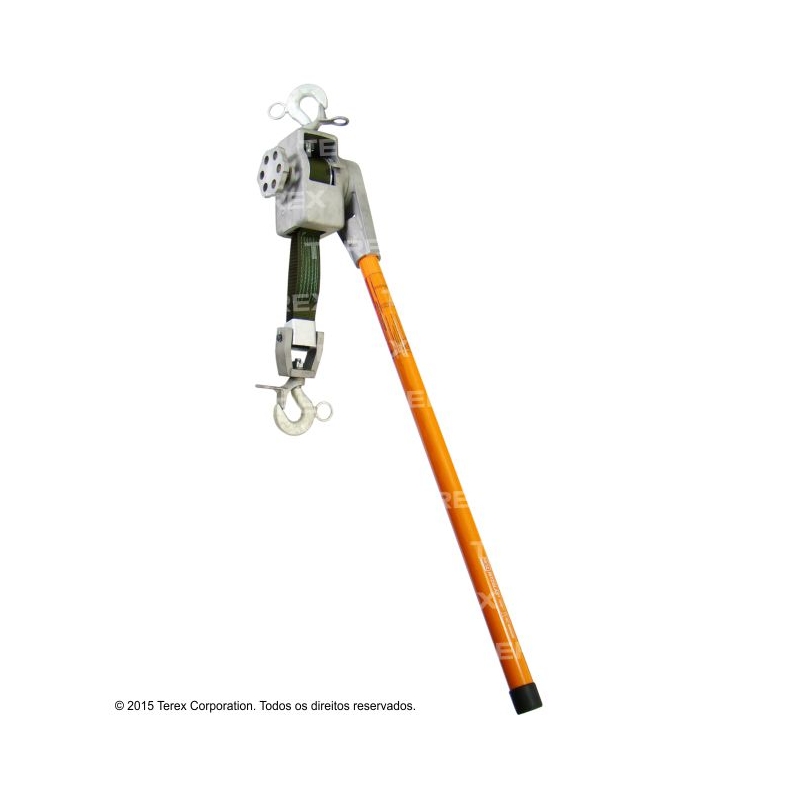

 RC312-0000

Hoist with nylon strap and regular handle, work load up to 2 tons

17.20

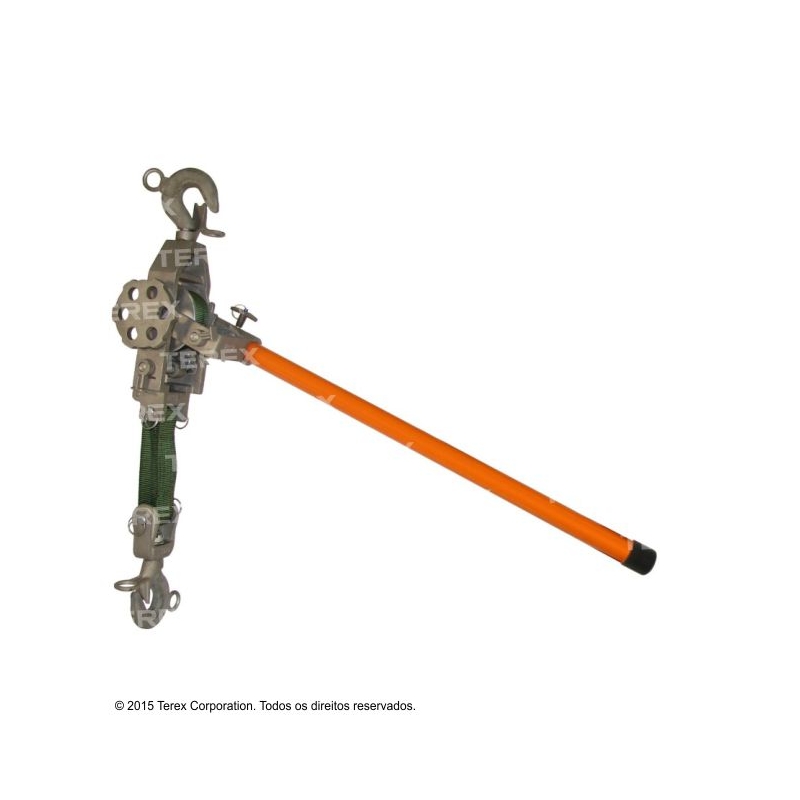

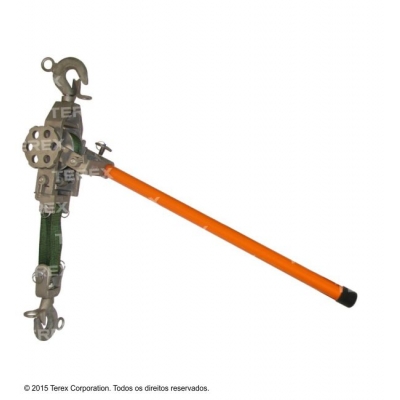

 RC309-0451

Convertible strap hoist, handle with plastic cap

11.68

LOAD CONVERSION



These models allow the work load conversion to be either 0.75 ton or 1.5 ton, simply by modifying the nylon straps arrangements, as follow:

For load capacity of 0.75 ton, attach the load hook sheave to the loop at the loose end of the strap.



For load capacity of 1.5 ton, attach the load hook sheave to the center of the strap when folded with the strap end fixed to the hoist body (Pic. 2).

Distances between hooks

Rated at
0.75 ton.

Rated at
1.5 ton.

Minimum

1.79 ft

1.79 ft

Maximum



8.99 ft

4.49 ft

Chain Rachet Hoist



Light weight and practical, these hoists provide for higher productivity when working in confined areas. The handle system is suitable for operations in all load positions.

In order to ease the load attachment and alignment, the hoist is provided with forged steel hooks with safety lock system and 360° operation.

For safety purposes, the chains are released for freewheel operation only under no-load condition.

These hoists have two control levers: the first one to coordinate the movement and direction. The second one to activate the safety lock system.

The control levers are easy to operate, even with the use of rubber gloves.

CHAIN RATCHET HOISTS



Cat. No.

Rated Work Load
(ton.)

Approx. Weight (lb)

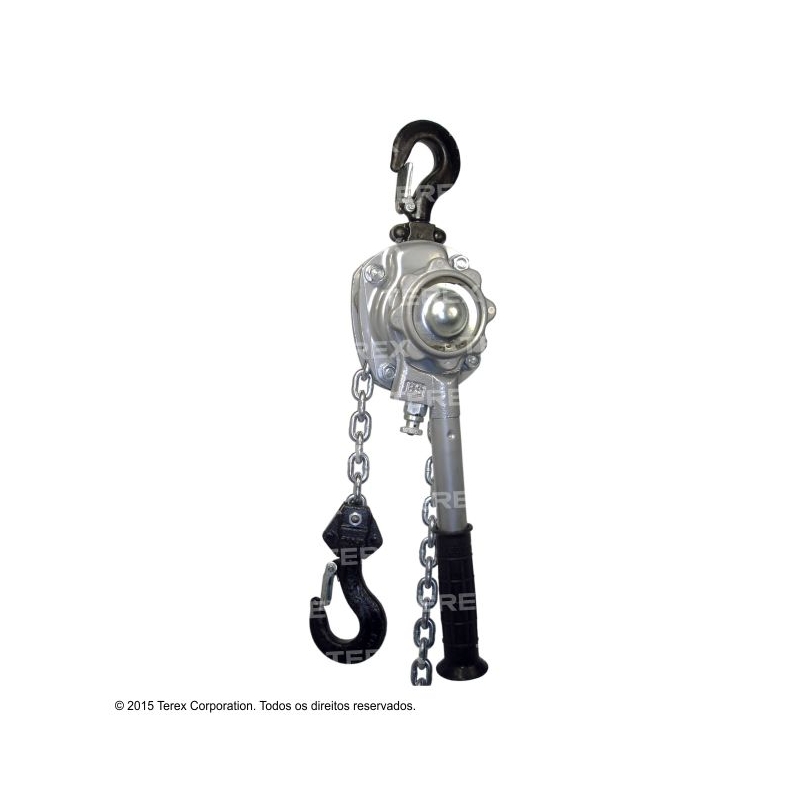

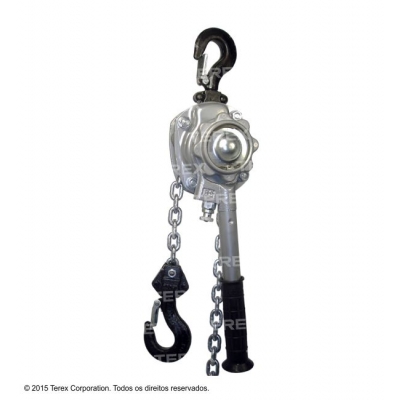

 750E

0,75

16.09

 1500E

1,50

25.35

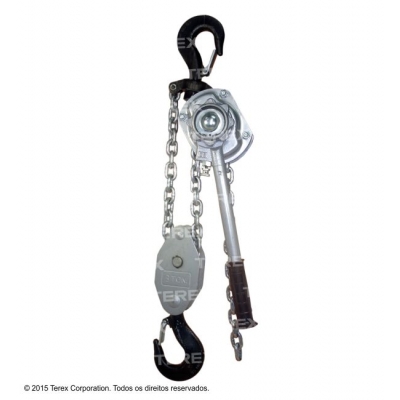

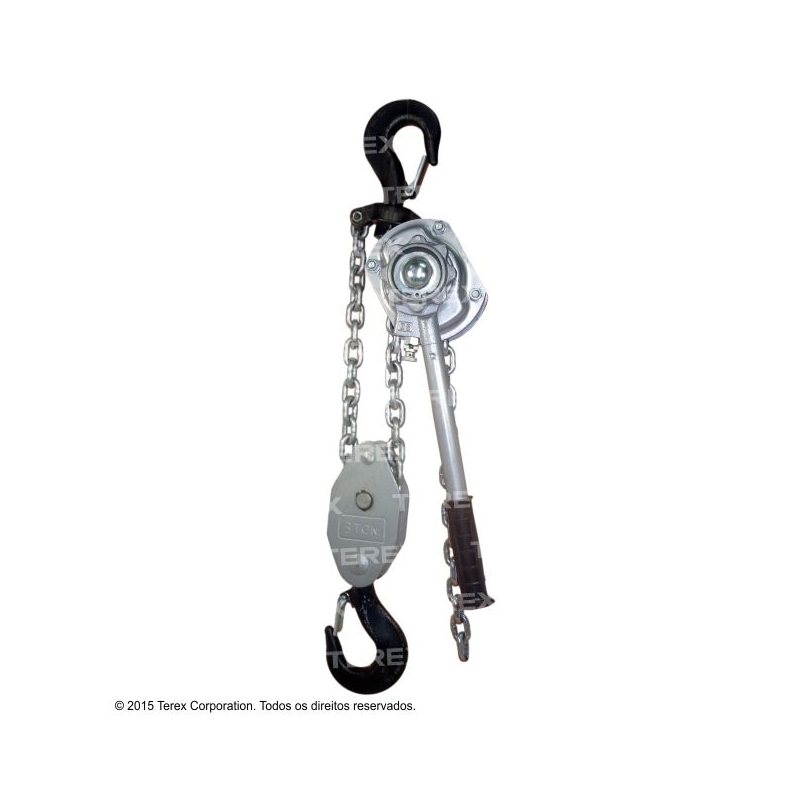

 3000E

3,00

37.48
