Rope Block

Description

Housing and sheaves are made of thermoplastic material and assembled with forged hooks that have safety locks. Hooks spin freely for easy attachment and alignment of load.

When only blocks are purchased, a pair is formed by having one block with becket and one without becket.

Common Rope Blocks

Equipped with eye-hooks for application by the hot stick method.

Different lengths of rope are available upon request.

Example of a customized length:

RC400-0914/50

Two double blocks, complete, mounted with 50 m (164 ft) of diam. 1/2” polypropylene rope (RM1895-3).

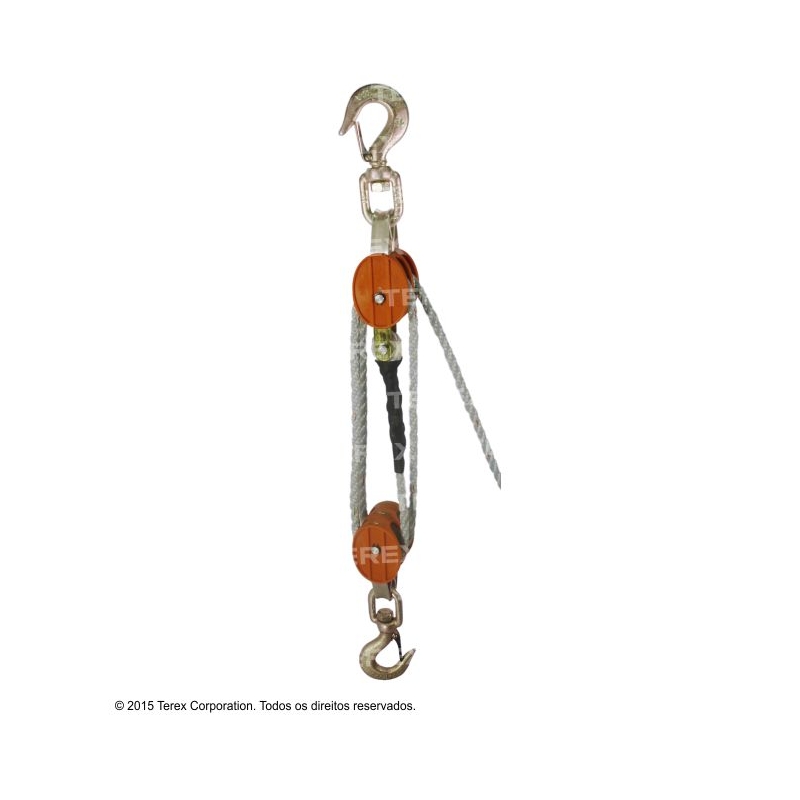

Light Rope Blocks

Light-weight, compact and resistant, these blocks are intended for use on electrical and telecom systems for load lifting, cable pulling, mast guying etc.

Provided with 15 m (49 ft) of polypropylene white rope, diam. 3/8” (RM1895-2).

Rope Block



Cat. No.

Description

Rated
Work Load (lb)

Approx Weight (lb)

 RC400-0914

Two double blocks, complete, mounted with 38 m (124 ft) of rope
(RM1895-3)

3500

15.87

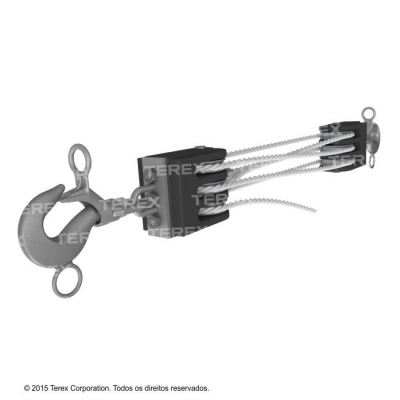

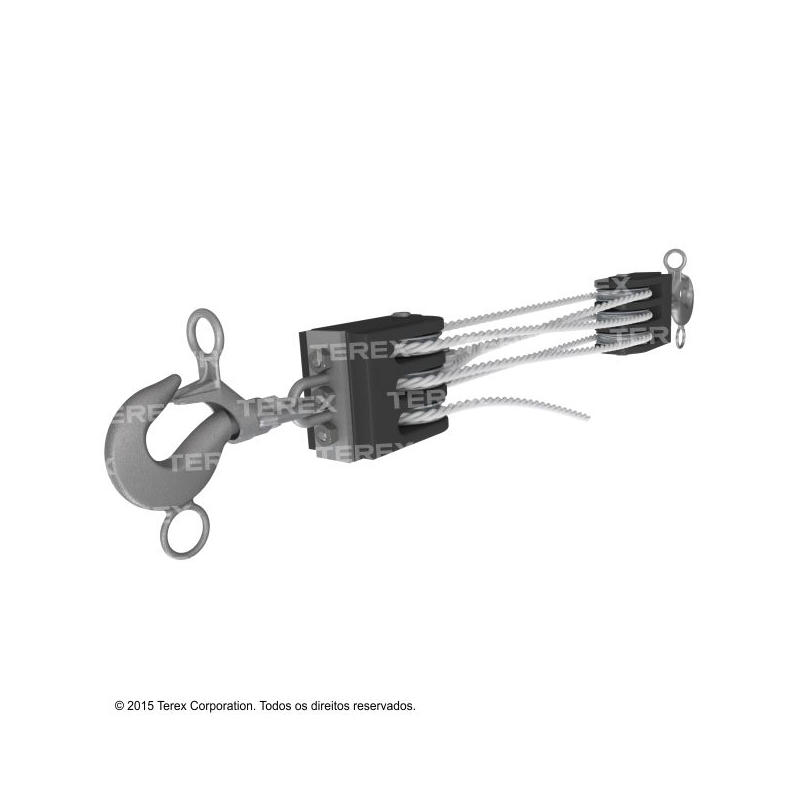

 RC400-0915

Two triple blocks, complete,
mounted with 45 m (147 ft) of rope
(RM1895-3)

3500

17.42

 FLV07777-1

Light double blocks, complete,
mounted with 15 m (49 ft) of rope
(RM1895-2)

880

4.63
