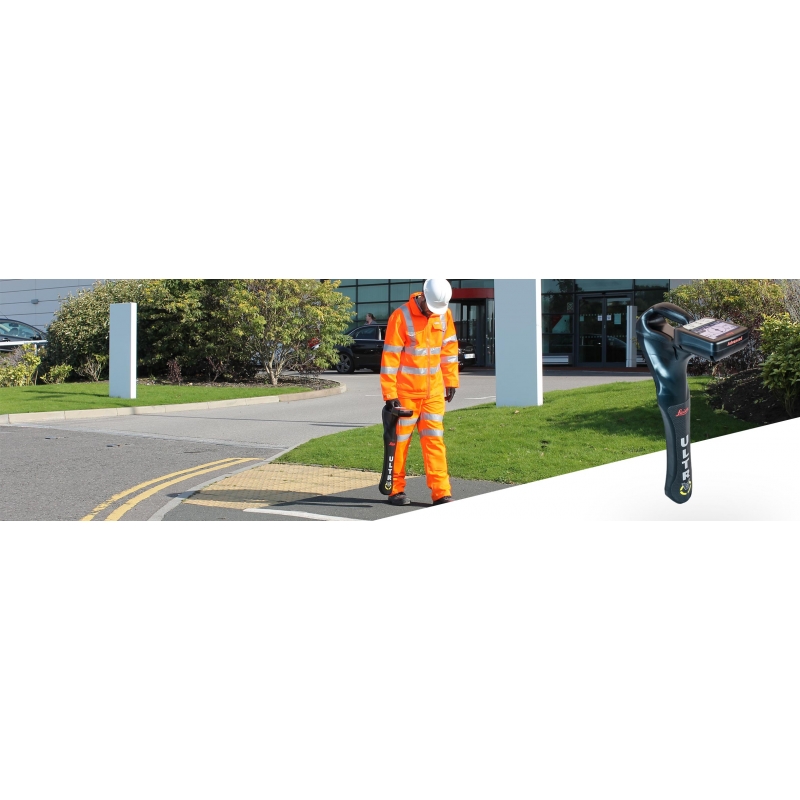

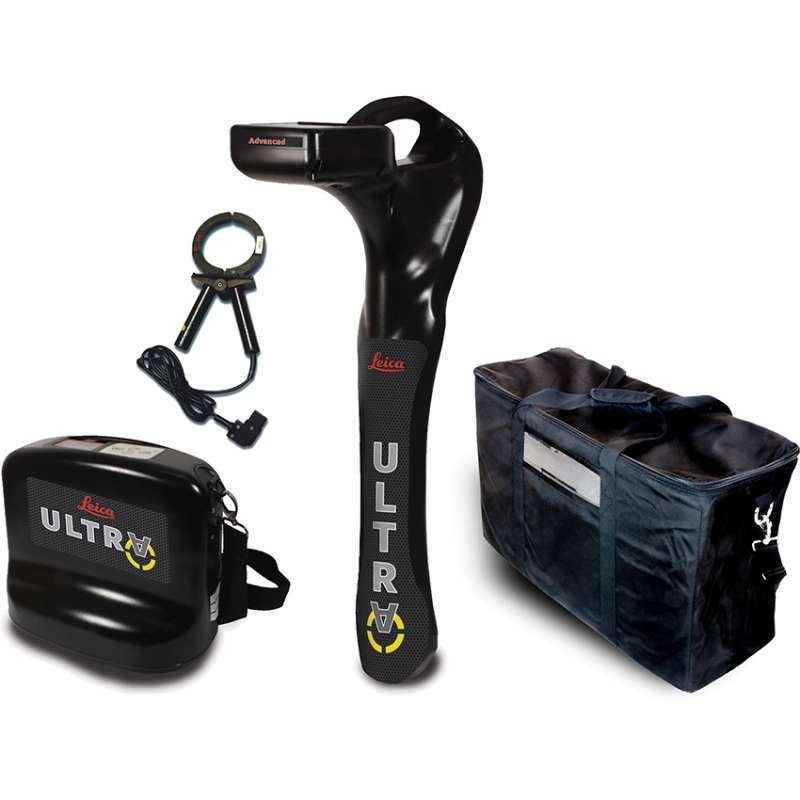

Leica ULTRA is a precision locating system that integrating intelligent signal processing with unique flexible operating modes.

Some existing underground infrastructure networks can be complicated. Complex pipe and cable routes are continually expanding on a global scale and it has never been more important to obtain precise information about their positions.

Specific optimization for the utility locating industry

- System locater can be configured for different project environments and has more than 100 programmable operating frequencies available.

- Feature Ambient Interference Measurement (AIM), digitally analyses the surrounding area of noise and recommends the best frequencies for accurate results.

- Offset Measuring feature, the ULTRA system can locate the target line when direct access from above is not possible. The feature allows the software to calculate the horizontal offset.

- Control the transmitter directly from the receiver with Bluetooth communication link between the ULTRA receiver and transmitter.

- Advance mode (output transmitter power = 12-watt).

- Superior battery life, by using Alkaline batteries, transmitter 100 hours, receiver 30 hours.

- Maximum depth up to 6 meters.
