Description
These auxiliary arms are rated at 272 daN (600 lb), with the three balanced conductors and 68 daN (150 lb) at each wireholder, for unbalanced conductors.
The auxiliary arms RH4862-6, RH4862-8 and RH4862-51 are used to change crossarms, insulators or poles on short spans up to and including 15 kV phase-to-phase. Two RM4740-5W saddles can be used to mount the mast to the pole, which must be ordered separately.
Two mast pole lengths are available:
- 1.52 m (5 ft) mast (RH4862-6 and RH4862-8 crossarms) provides a lift of 0.76 m (2.5 ft) above the top saddle when the saddles are mounted at a minimum recommended distance of 0.46 m (1.50 ft) apart.
- 3.05 m (10. ft) mast (RH4862-51 crossarm) provides a lift of 1.17 m (3.80 ft).

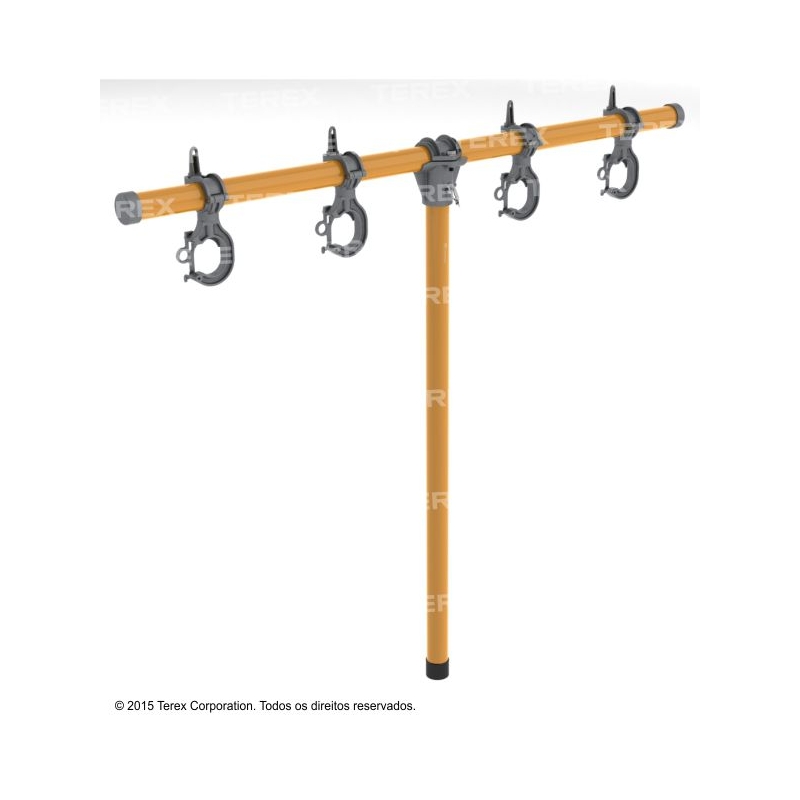

RH4862-6 – AUXILIARY ARMS
|
Item
|
Qty.
|
Cat. No.
|
Description
|
Approx. Weight (lb)
|
|
01
|
01
|
FLV21310-1
|
Crossarm stick, diam. 64 mm x 1.78 m
(2.5" x 5.80 ft) insulated length
|
11.24
|
|
02
|
01
|
FLV17928-1
|
Long mast diam. 64 mm x 1.35 m
(2.5" x 4.4 ft) insulated length
|
6.22
|
|
03
|
01
|
FLV05613-1
|
Eye head to set the connection of the mast with the crossarm stick
|
2.87
|
|
04
|
04
|
RM4805-16
|
Suspension wireholder without insulator
|
2.38
|
RH4862-8 – AUXILIARY ARMS
|
Item
|
Qty.
|
Cat. No.
|
Description
|
Approx. Weight (lb)
|
|
01
|
01
|
FLV17928-1
|
Long mast diam. 64 mm x 1.35 m
(2.5" x 4.4 ft) insulated length
|
11.24
|
|
02
|
01
|
FLV21310-2
|
Crossarm stick diam. 64 mm x 2.39 m (2.5" x 7.80 ft) insulated length
|
11.24
|
|
03
|
01
|
FLV05613-1
|
Eye head to set the connection of the mast with the crossarm
|
2.87
|
|
04
|
04
|
RM4805-16
|
Suspension wire holder without ins
|
2.38
|

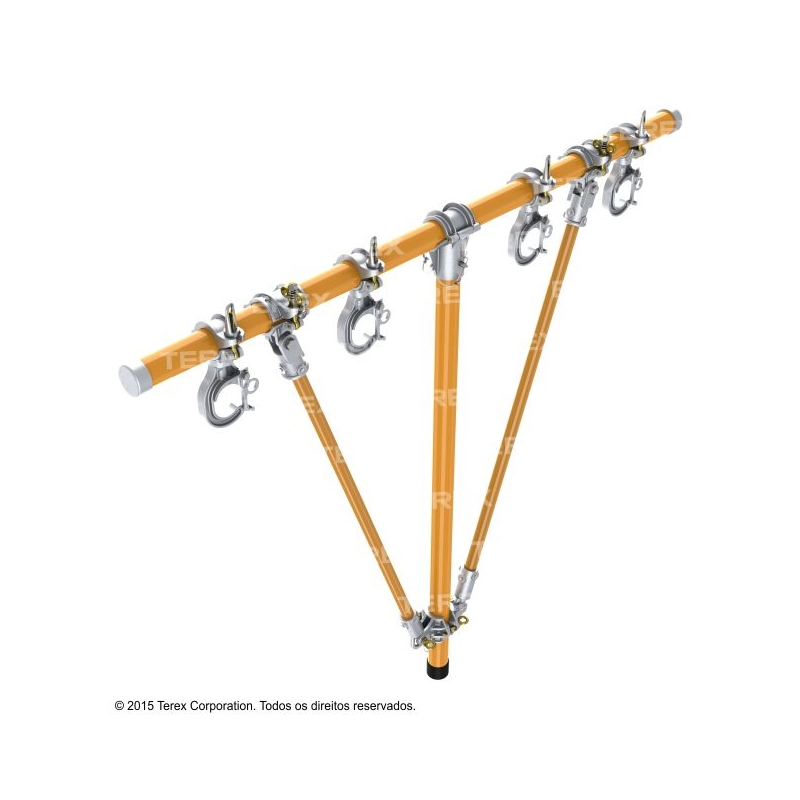

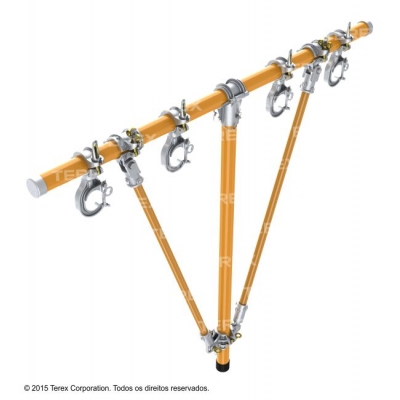

RH4862-51 – MAST FIBERGLASS STICK
|
Item
|
Qty.
|
Cat. No.
|
Description
|
Approx. Weight (lb)
|
|
01
|
01
|
FLV17928-2
|
Long Mast diam. 64 mm x 2.83 m
(2.5" x 9.3 ft) insulated length
|
6.22
|
|
02
|
02
|
FLV03457-13
|
Support stick diam. 38 mm x 2.03 m (1.5" x 6.7 ft) insulated length
|
15.12
|
|
03
|
02
|
RM4741-3
|
diam. 64 mm (2.5") clamp
|
2.20
|
|
04
|
01
|
RM1728-5
|
diam. 64 mm (2.5") wire-tong pole clevis
|
3.31
|
|
05
|
01
|
FLV05613-1
|
Eye head to set the connection of
the mast with the crossarm stick
|
2.87
|
ACCESSORY
|
Cat. No.
|
Description
|
Approx. Weight (lb)
|
|

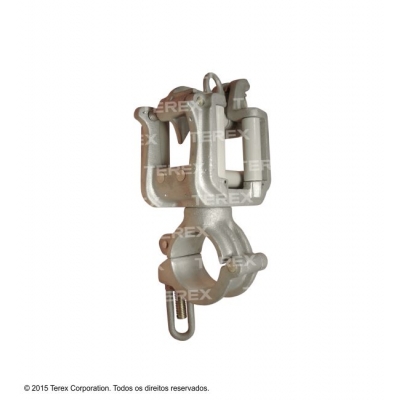

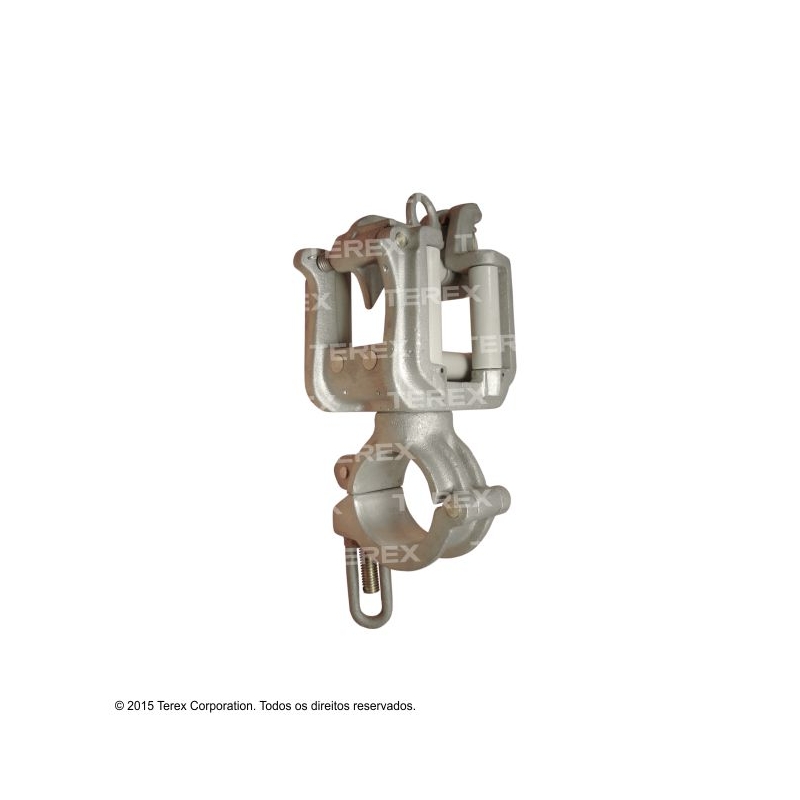

RC400-0268
|
Roller wireholder, 2" max. opening, for attachment to the
auxiliary arm assembled on Guindauto vehicule or other
similar units
|
4.19
|
|

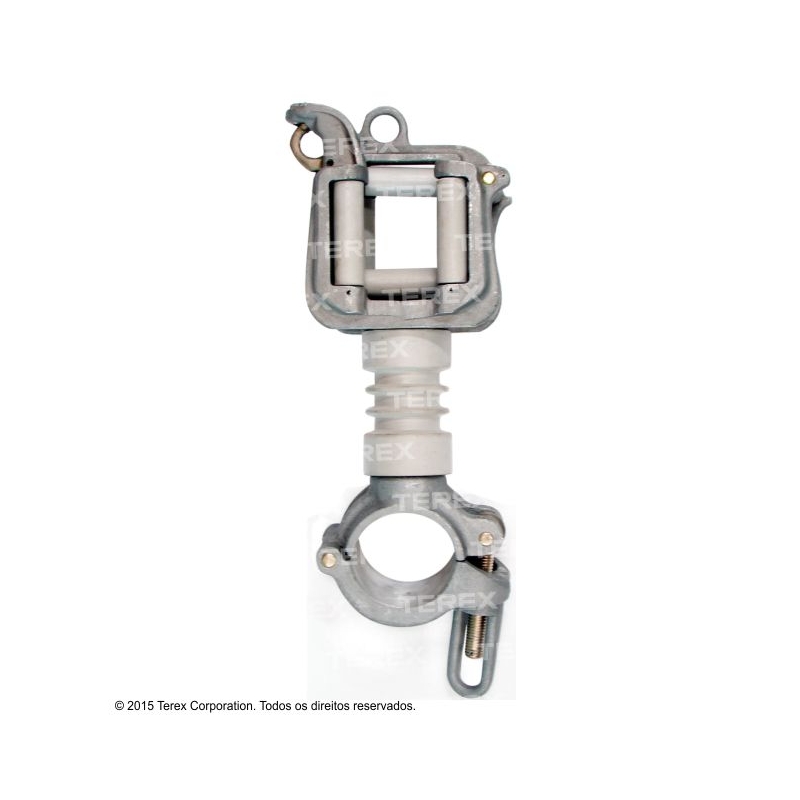

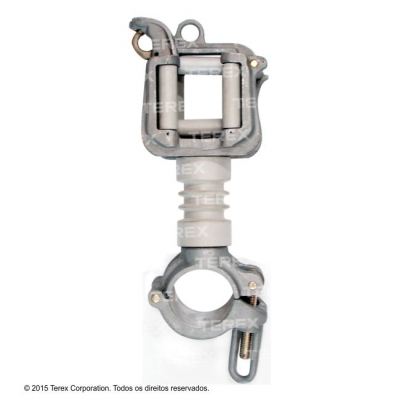

RC400-0269
|
Roller wireholder, 2" opening, for attachment to the
auxiliary crossarm with RM4805-7 Epoxy insulator
|
5.51
|
