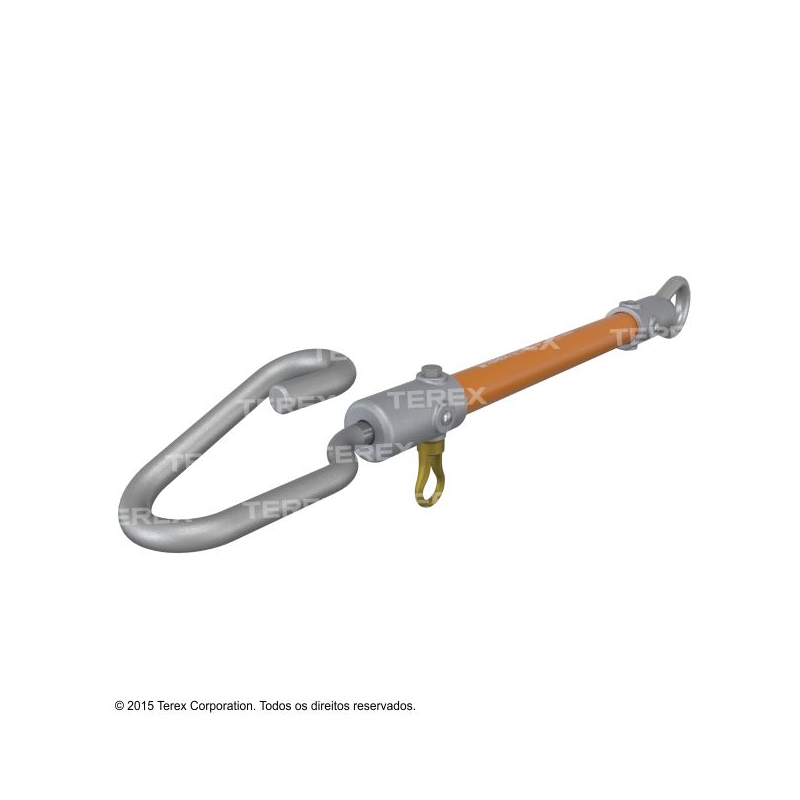

The Spiral Link Stick is used in place of a strain link stick in close places where the lineman cannot safely install a strain link stick by hand. A lifting eye on the head ferrule enables the lineman to guide the Spiral Link Stick to the conductor with a hotstick. The Spiral Link Stick is composed of a 32 mm (1-1/4") Ritzglas® pole, a spiral shape hook made of special hot galvanized steel. This provides a strong and suitable tool for work loads of conductors up to 1510.5 kcmil ACSR (approx. diam. 38 mm - 1.5"). Ferrule castings are of heat-treated aluminum alloy.

Butt-swivels - for attaching rope blocks or hand lines - are forged of high quality steel and rotate freely on ball thrust bearing.

SPIRAL LINK STICK
