Heavy-Duty Suspension Link Stick

Description

The Heavy-duty Suspension Link Stick has been designed for suspension of conductors from diam. 25 mm (1") through 64 mm (2.5") and can be used with several types of lifting devices, at the structure end.

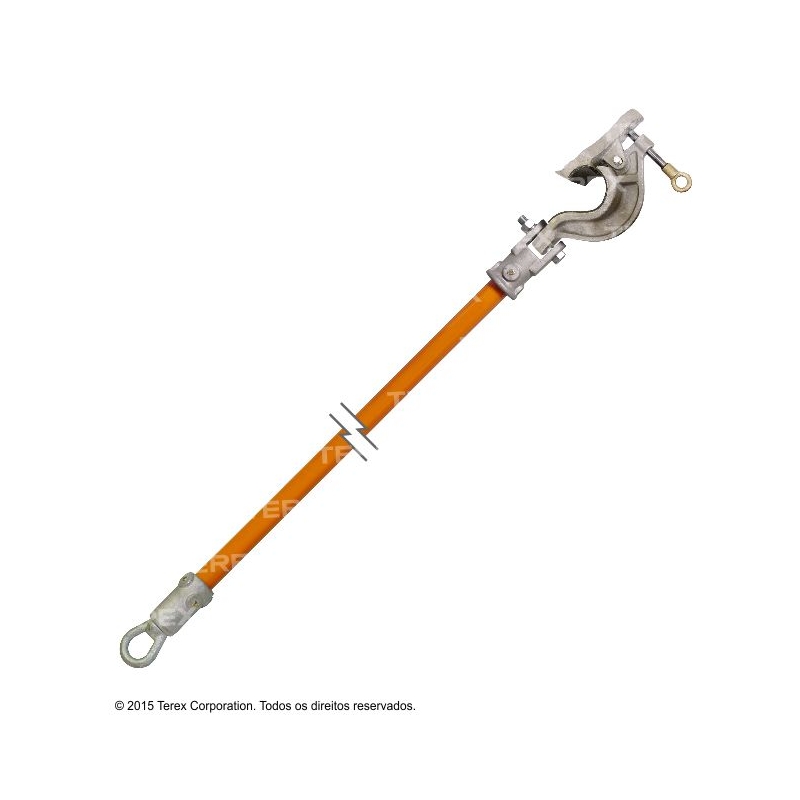

The Heavy-duty Suspension Link Stick is manufactured with diam. 38 mm (1.5") Ritzglas® poles. The main head in cast aluminum alloy with internal rubber coating (to avoid damages to the conductor) is attached to one of the ends. At the other end, it is provided with an aluminum alloy head with forged steel butt-ring.

HEAVY-DUTY SUSPENSION LINK STICK

Cat. No.

Heads for Conductors
(DIam.)

Dimension

Work Load (lb)

Approx. Weight (lb)

Diam.
(in)

Insulating
Length (ft)

 RH4719-84

3/4” a 1-3/4”

1.5"

6.6

6500

11.02

 RH4720-84

1” a 2-1/2”

1.5"

6.6

6500

11.46
