Insulated Rubber Blanket

Description

Intended to protect linemen from accidents, when in touch with energized parts of structures, during live line maintenance.

They are versatile and permit linemen to cover typical irregular shaped components, such as: load-break switches, secondary racks, pin insulators, cold end strings, crossarms etc.

Made from special ozone and corona resistant rubber material.

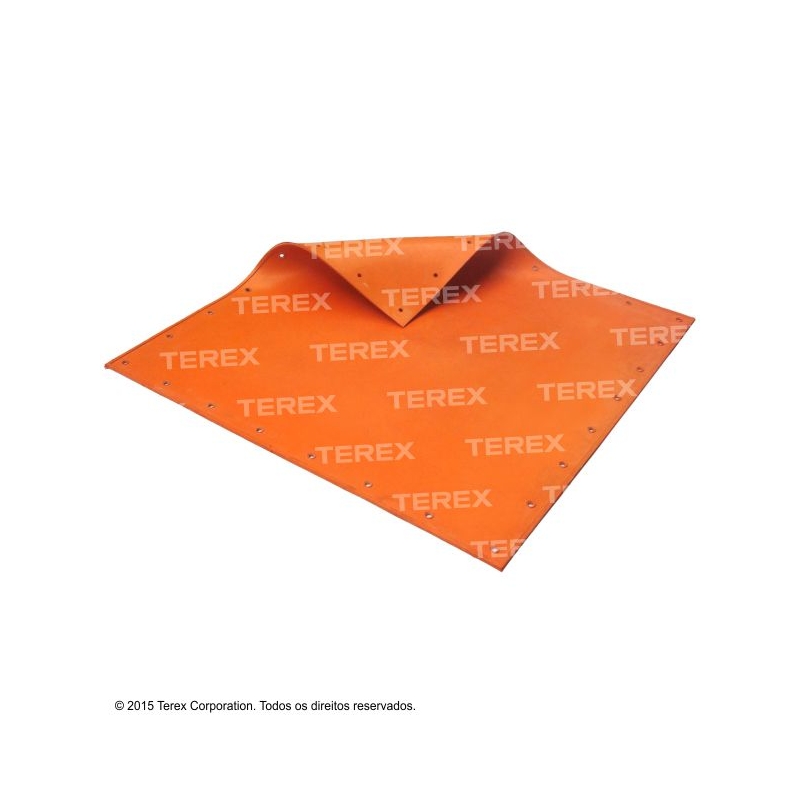

These blankets are made bright orange, type II (resistant to ozone effects). They are available in three models, for a wider number of applications: Solid Type, Slotted Type and Three-slot Type.

The Solid and Slotted Type have 28 eyelets along their borders and the Three-Slot Type has 11 holes, enabling them to be firmly fixed to the energized parts, using special plastic buttons (LIR-BLR).

Cover Pegs are also available. (refer to specific page of this product).

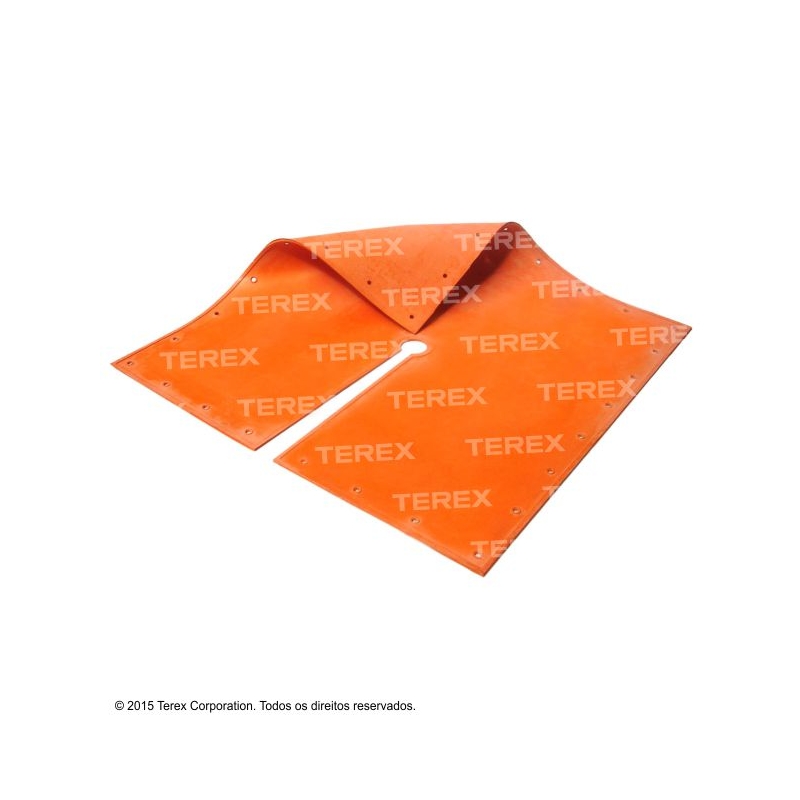

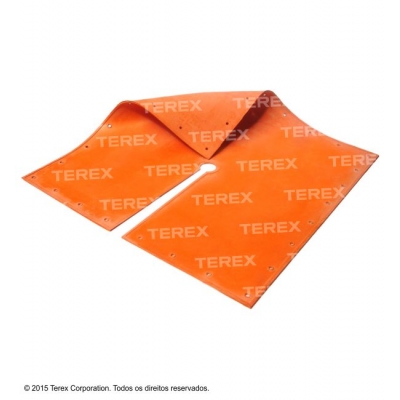

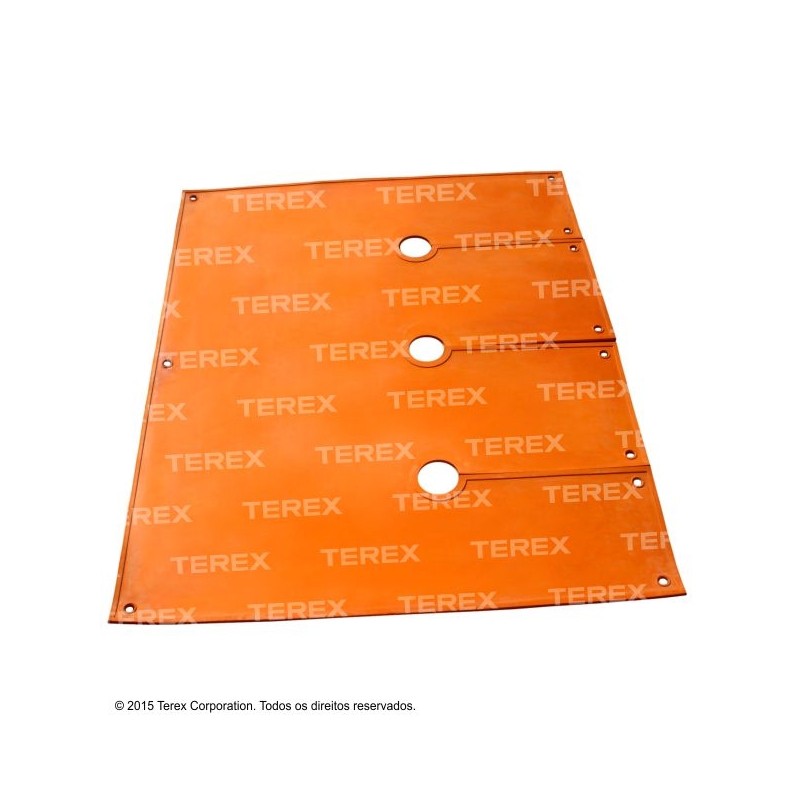

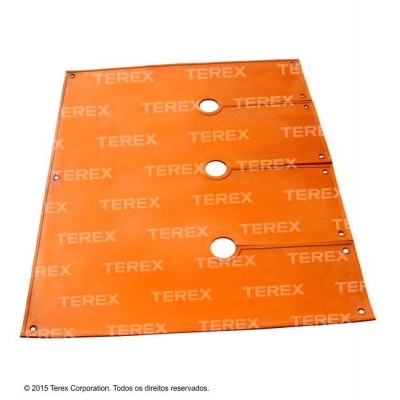

The Slotted Type has a 26.7 ± 1 mm wide slot from center to border and the Three-Slot Type has 18 mm wide slots, allowing special applications in quite diverse situations which require smaller folds.

INSULATED RUBBER BLANKETS

Cat. No.

Description

Nominal
Working
Voltage (kV)

Nominal
Test Voltage
(kV)

Approx.
Thickness (in)

Approx. Weight (lb)

 LR-4/II

Solid

36

40

0.15"

8.60

 LR-SP-4/II

Slotted

36

40

0.15"

8.38

 LR-TP-4/II

Three-slot

36

40

0.15"

10.71

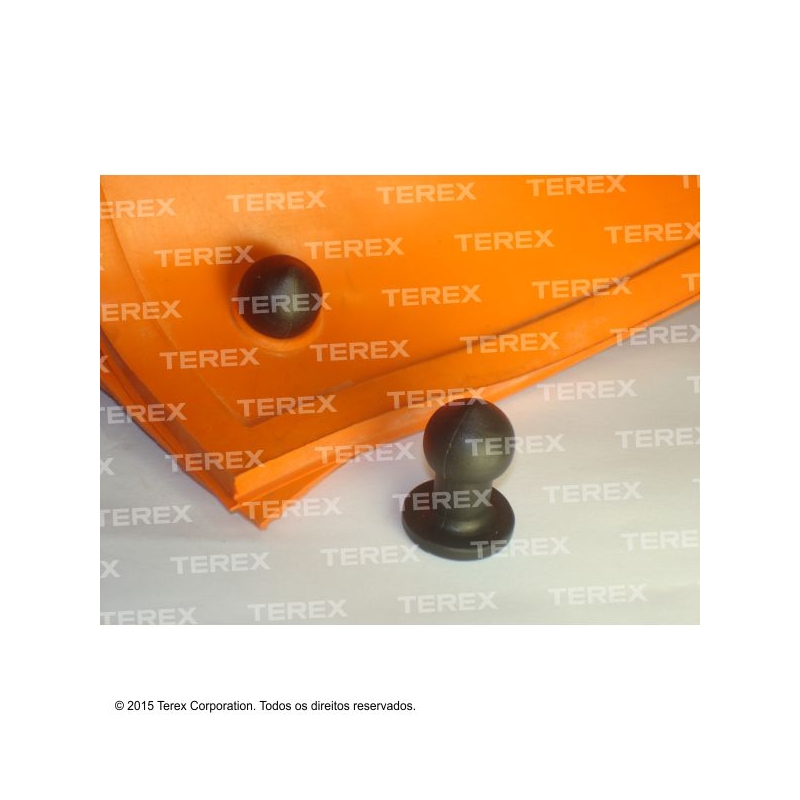

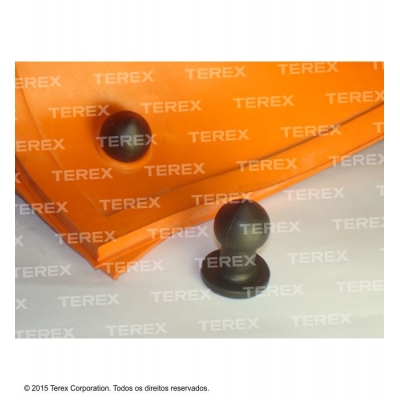

INSULATED BUTTON

Cat. No.

Description

 LIR-BLR

Plastic button for fixing of insulated rubber blankets

* order plastic pins separately. They are not supplied with the blankets
