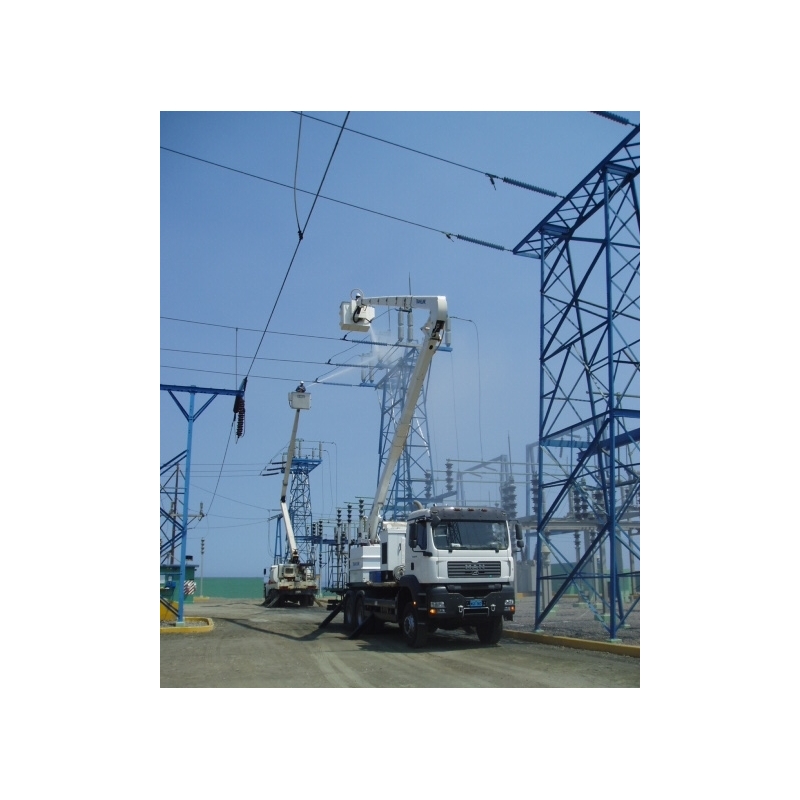

IW BOOM Series

Description

Standard Features - Boom Series

- Two person end-mount platform.

- Power assist control system with demand throttle.

- One hand operation at platform.

- Individual lever controls at base.

- Hydraulic platform tilt at base and platform controls.

- Hydraulic master / slave platform levelling.

- Insulated booms.

- Pilot operated closed centre hydraulic system.

- 135 litre hydraulic tank capacity.

- Lock valves on all hydraulic cylinders.

- 360 degree continuous rotation.

- Four hydraulic stabilisers with stabiliser /boom interlocks.

- Power by PTO unit fitted to vehicle with interlock indicator.

- Safety harness points (2) in cage.

- 12 volt auxiliary let down system at base.

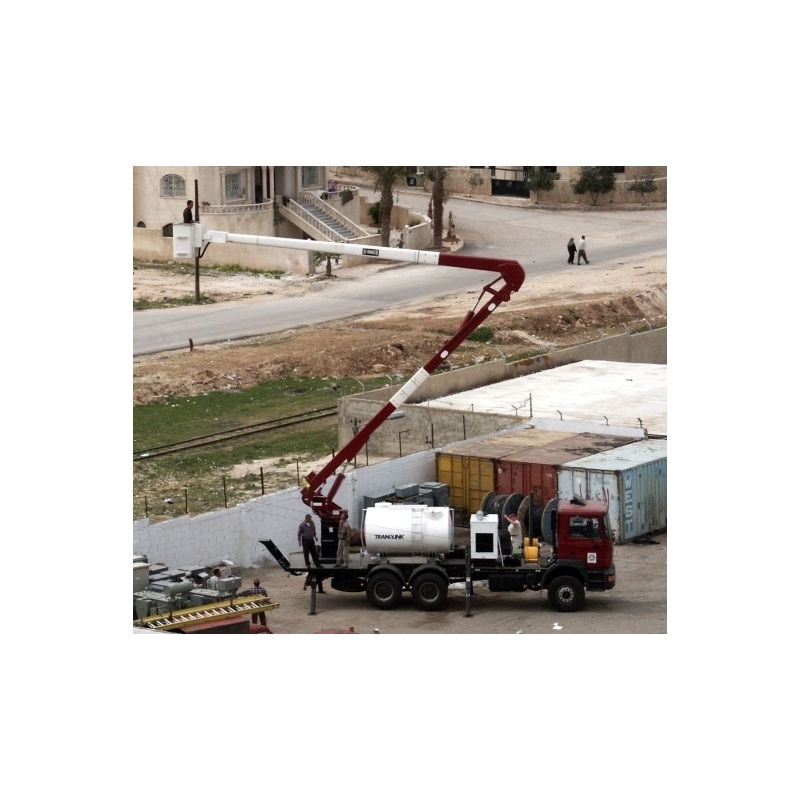

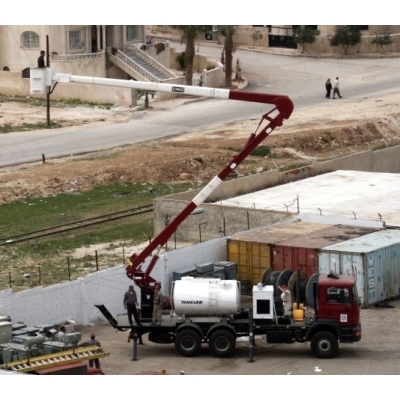

- Translink "plug and go" insulator washer control panel.

Boom Series Specification - Refer to Drawing Above



Ranger Model Code

IW-140

IW-160

IW-205

IW-220

Platform Height          A

12.4m

14m

18.5m

20m

Working Height          B

14.4m

16m

20.5m

22m

Maximum Outreach    C

8m

9m

11.9m

12.7m

Max SWL

318kg

272kg

318kg

318kg

Lower Boom Articulation

102o

102o

102o

102o

Upper Boom Articulation

163o

163o

163o

163o

GVW Minimum

10t

12t

15t

15t

Wheelbase Minimum

3.95m

4.5m

4.88m

4.88m
