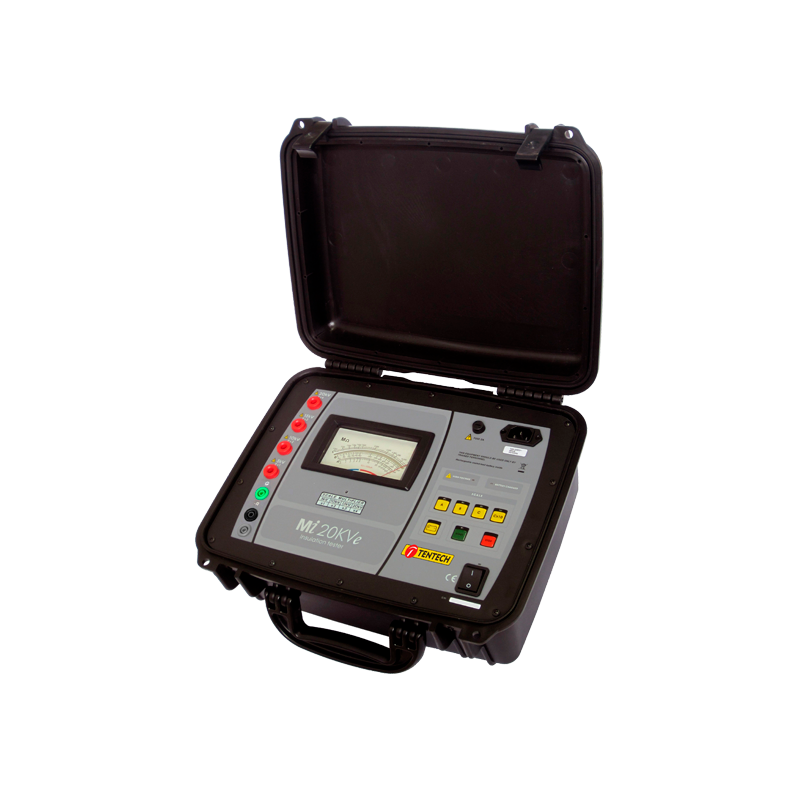

MI20kVe - High Voltage Insulation Tester

Description

- Insulation test up to 4 TΩ.

- 4 test voltages: 5kV - 10kV - 15kV - 20kV.

- GUARD terminal.

- Multiple scales for accuracy improvement.

- Portable, accurate, and rugged.

- IP65 protection (with closed lid).

- Rechargeable battery.

Description

The MI-20KVe High-Voltage insulation tester is a truly portable device that allows the measurement of insulation resistances using test voltages up to 20 kV.

It employs a state-of-the-art technology for the safe measurements of insulation resistances up to 4,000,000 MΩ with four test voltages: 5k V - 10 kV - 15 kV and 20 kV.

Readings are performed through an easy-toread analogue indicator, having a broad scale.

This equipment is specially well suited to test isolation resistances in transmission lines and medium voltage distribution systems, whether aerial or underground, as it allows to perform testing with voltages near to the operational value. Besides, it is an excellent auxiliary when detecting cable failures.

In order to maximize the operator's safety, this equipment was made within a plastic cabinet of high dielectric strength, with no metallic accessible parts. A light indicator warns about dangerous voltages presence, both in the equipment and in the element under testing, and switches off only when the discharge process has finished.

This minsulation tester has a GUARD terminal that allows to avoid the effects of parasitic resistances and surface currents on the insulation resistances under test.

Due to its reduced size and weight, its power autonomy and mechanical strength, this insulation tester is suitable for working out in the field, under severe weather conditions. It is powered with a rechargeable battery, with a charger for 110 V/220 V. In order to protect the equipment, the cabinet is water and dust resistant. Protection grade is IP65, and the insulation tester is supplied with a complete kit of high voltage test leads.
