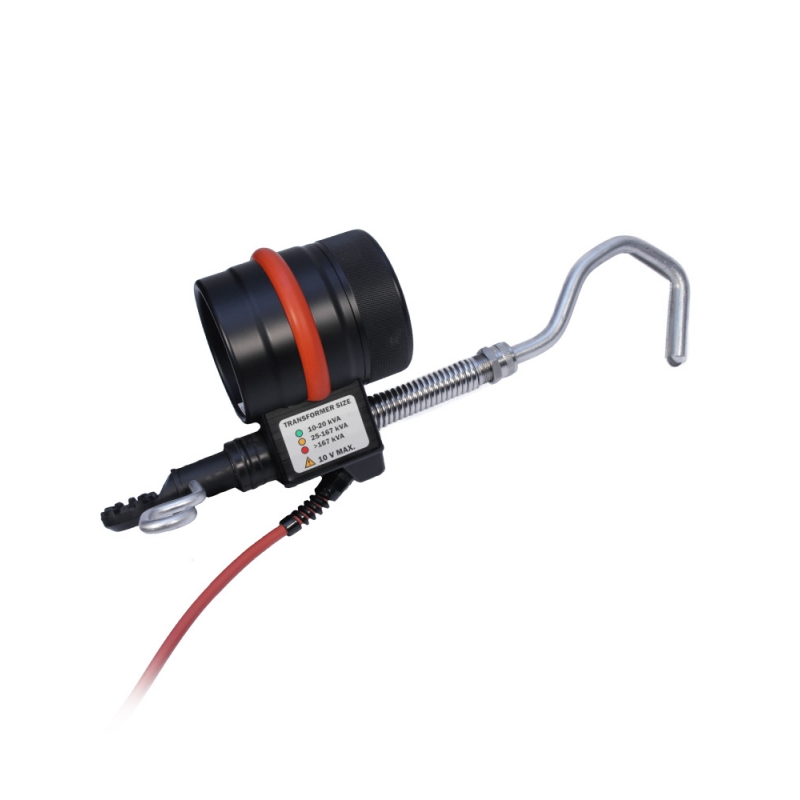

The DOC-2000^TM is intended for de-energised distribution transformer testing. It can determine the presence of short circuit in the distribution transformer primary winding and also short circuits on the secondary winding. The DOC-2000^TM is designed to be operated from an arial device from the ground at the end of the hot stick without disconnecting the transformer’s secondary windings.

Advantages:

- No need for disconnecting transformer secondary windings therefore saving time.

- Reduces risks of hazards when putting fuses back online when the transformer windings are shorted.

- Conformity with the requirements for safety (IEC-TC78)

Features:

- Transformers up to 167kVA single or three phase (Pole mount or Pad mount).

- Measurement by contact on the transformer primary bushing and neutral/ground.

- Used on de-energized transformers.

- Detects primary transformer short-circuits.

- Visual and audible warning.

- Automatic self-test & Auto shut-off.

- Low battery indicator.

- Operating temperature range -25^oC to 55^oC.
