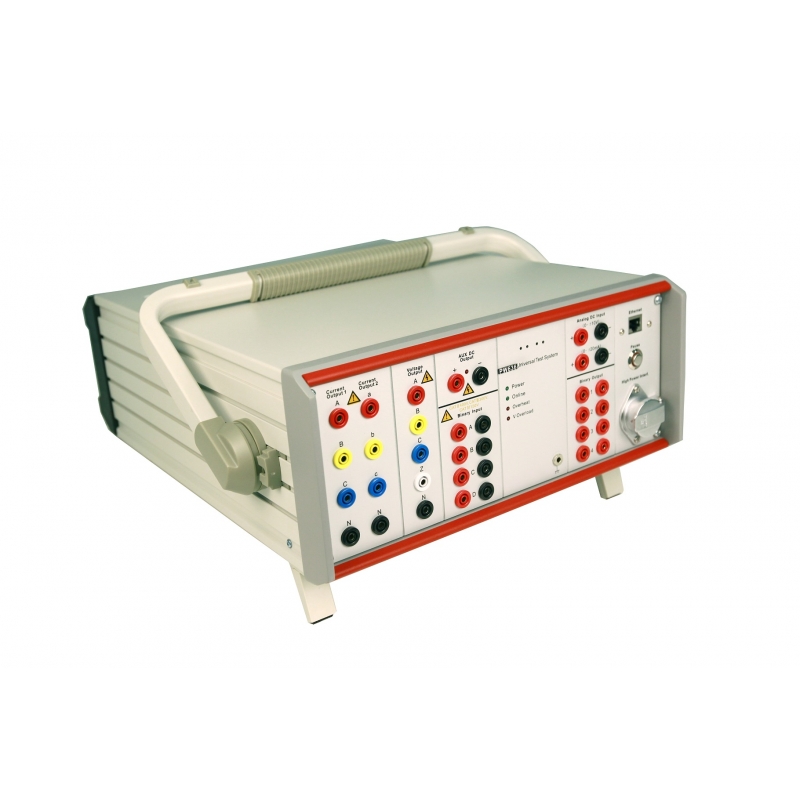

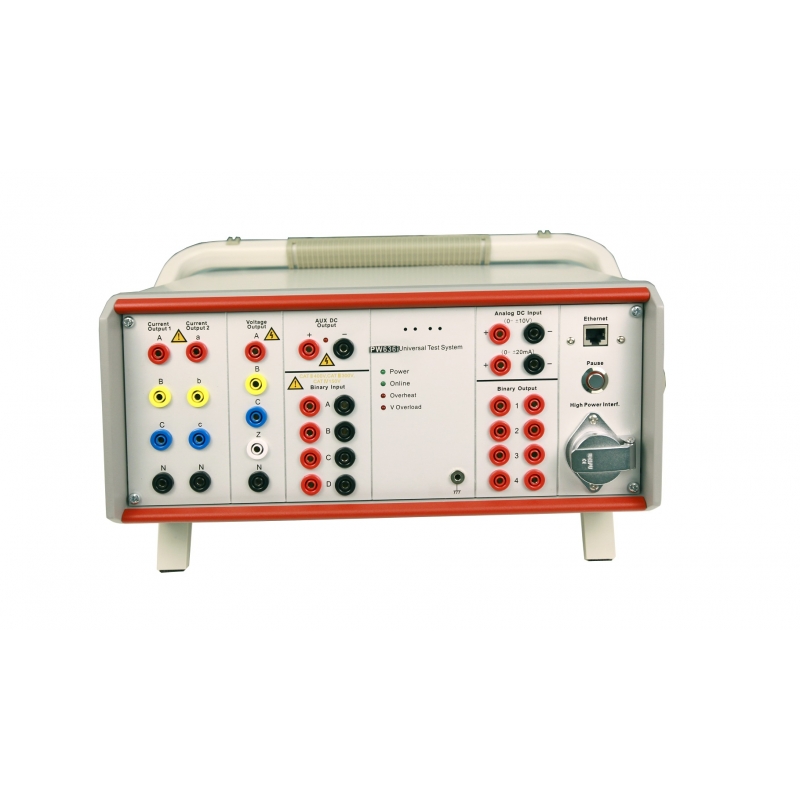

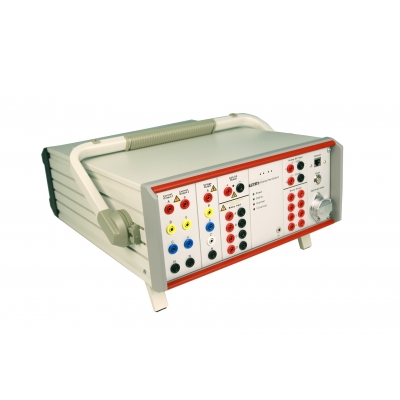

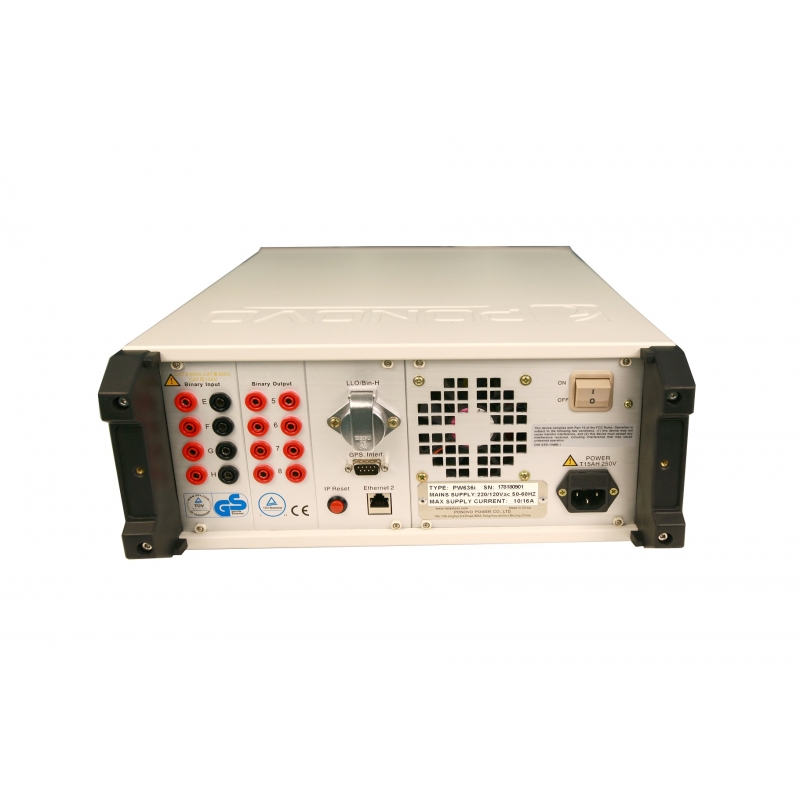

PW636i

Description

PW636i (6*32A, 4*300V) is a computer aided relay testing equipment. One of the most significant features of the relay test set is its high power capacity for its current amplifiers. It is the ideal relay test solution for applications which require large current output.

Features:

·       6*32A, 4*300V.

·       Aux DC (0-300V), DC measuring inputs.

·       12 binary inputs, 8 binary outputs.

·       Adjustable threshold (0-400V) for binary inputs.

·       Analog AC+DC measurement inputs.

·       Can be upgraded to support the test of IEC61850 complied relay.

Main Specifications

Current



Range

6 x 0-32A

Power(typical)

6 x 450VA at 32A

3 x 800VA at 64A

Accuracy (typical)

<0.05% rd + 0.02% rg.guar., at 0-32A

Voltage



Range

4 x 0-300 VAC 1x0-600VAC

4 x 0-±300 VDC 1 x 0-±600 VDC

Power (typical)

4 x 75VA at 300V

3 x 100VA at 300V

Accuracy (typical)

<0.03% rd + 0.01% rg, at 0-300V

Frequency



Sine signal

0.001 … 1000Hz

Transient signal

DC … 10.0kHz

Accuracy

0.3ppm

Phase angle



Range

-360o - +360o

Accuracy (typical)

0.02o

Auxiliary DC supply

0-300V

Power

88W at 110V, 176W at 200V

Binary input of 12 Nos



Number

8

Sample rate

0-400VDC threshold or potential free

Binary input counter type of 12 Nos



Number

4

Sample rate

100kHz

Binary output



Number

4

Type

Relay

Number

4

Type

Semiconductor

Low level output



Number

12

Accuracy (typical)

0.025%

DC measurement



Voltage measuring

0 … ± 10V

Current measuring

0 … ± 20mA

IEC61850 GOOSE

Optional

Dimension

360*157*427mm

Weight

20kg
