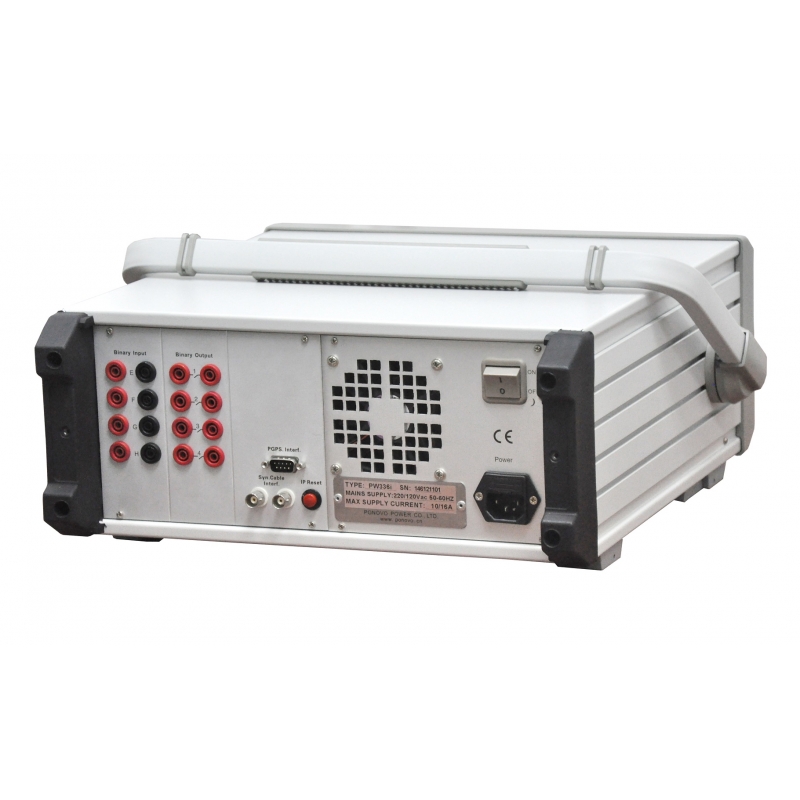

PW336i

Description

PW336i (6*15A, 4*150V) is a powerful secondary injection relay tester with 6-currents and 4-voltages sources. This advanced relay testing set is capable of testing differential relay easily without changing cable connection. Optional upgrade is available to support the test of IEC61850 relay.

Features:

·       6*15A, 4*150V.

·       Aux DC (0-300V), DC measuring inputs.

·       8 binary inputs, 4 binary outputs.

·       Adjustable threshold (0-400V) for binary inputs.

·       In-built analog monitoring and recording function.

·       Can be upgraded to support the test of IEC61850 complied relay.

Main Specifications

Current



Range

6 x 0-15A

Power

6 x 150VA at 15A

3 x 240VA at 30A

Accuracy (typical)

0.05% reading + 0.02% range

Voltage



Range

4 x 0-150 VAC 1x0-300VAC

4 x 0-±150 VDC 1 x 0-±300 VDC

Power

4 x 45VA at 150V

3 x 60VA at 150V

Accuracy (typical)

0.04% reading + 0.01% range

Frequency



Sine signal

0.001 … 1000Hz

Transient signal

DC … 10.0kHz

Accuracy

1ppm

Phase angle



Range

0 - +359.9o

Accuracy (typical)

0.05o

Auxiliary DC supply



Power

88W at 110V, 176W at 200V

Binary input



Number

8

Sample rate

0-400VDC threshold or potential free

Binary output

4

Recording & monitoring



Internal

In-built

IEC61850 GOOSE

Optional

Dimension

360*157*367mm

Weight

20kg
