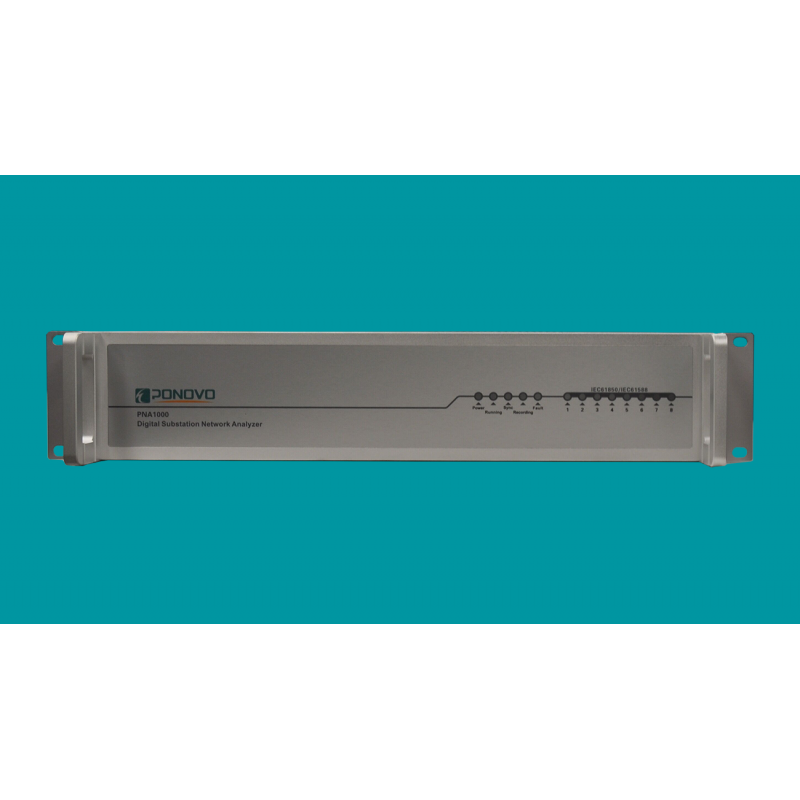

PNA1000 is a 24-hours online monitoring and analyzing system for intelligent substation based on IEC61850. It is applied in the digital substation for network communication system, communication process, and real time monitoring of different messages.

It analyses, warns, and records the whole process, data, and the abnormal incidents.

Features:

·       Warn and detect the fault in substation by monitoring network communication process and status.

·       Warn and exclude the hidden danger by monitoring and analyzing the network messages in station level and process level.

·       Provide complete data and analysis method to substation operation, fault device in station and secondary system fault by visual data and abnormal incident’s record.
