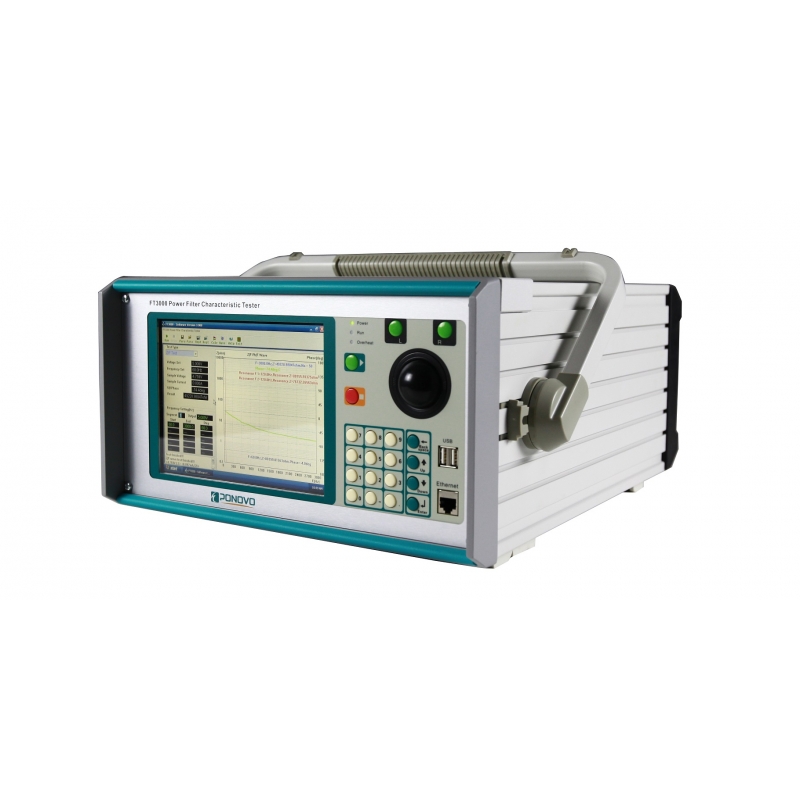

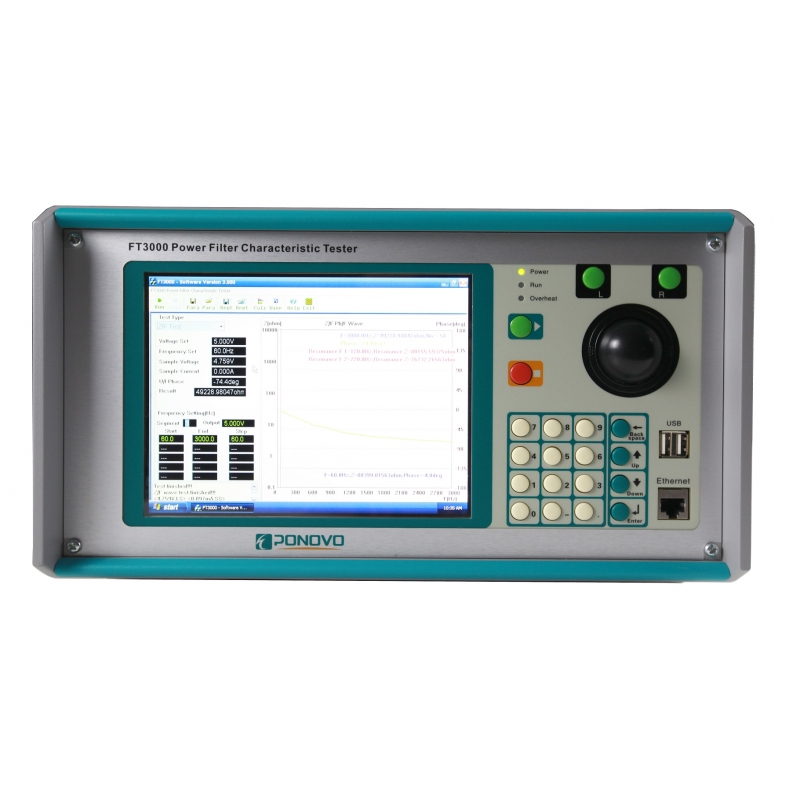

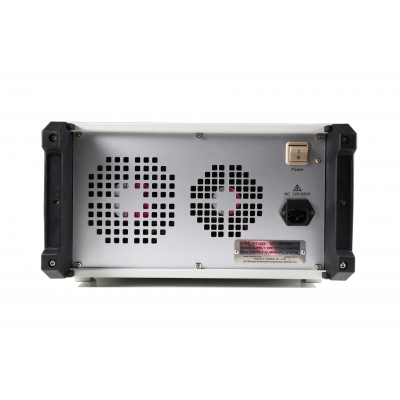

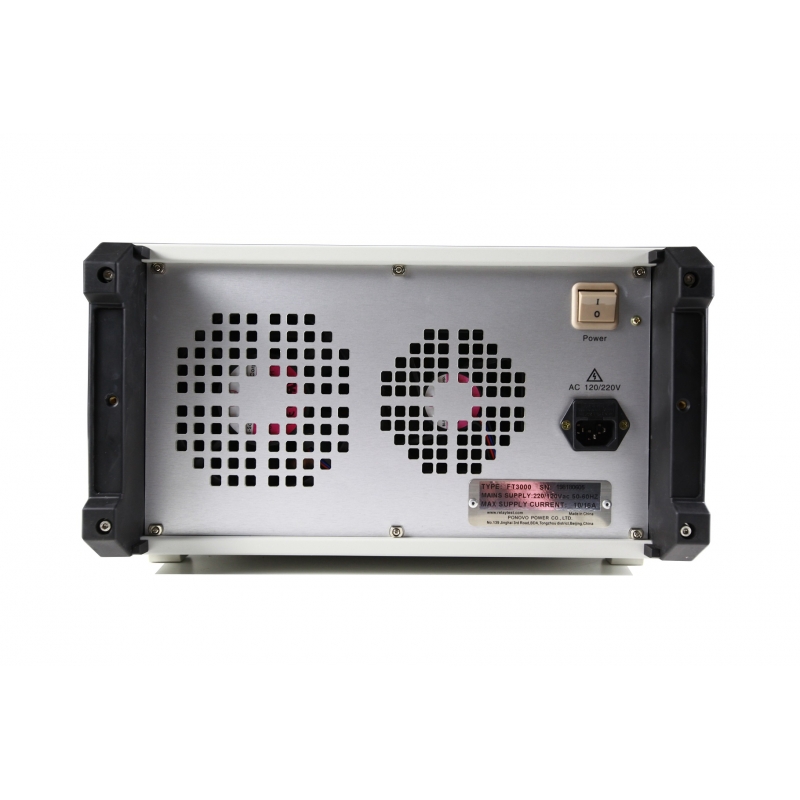

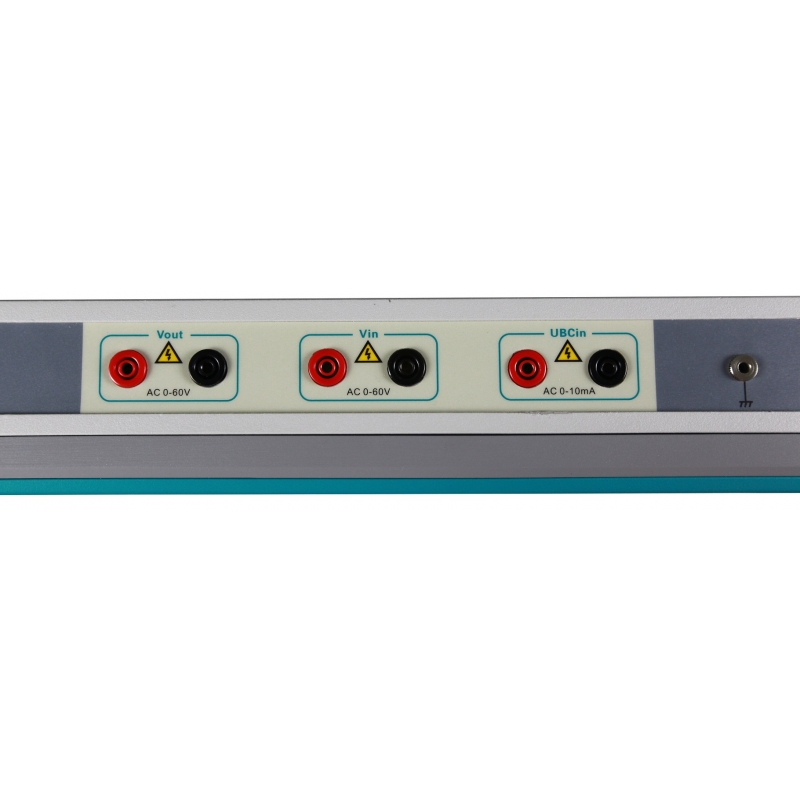

FT3000

Description

Precise and automatic complete power filter amplitude frequency and phase frequency characteristic measurement. Automatically measure power filter by parameters of the reactor, capacitor, and resistor. Compensate and measure capacitor group with unbalanced current: 0.01mA-10mA.

Features:

·       Quickly and accurately on testing all parameters of power filter by this single device.

·       High precision: field test accuracy can reach 5%.

·       High efficiency: compared to the traditional testing method, this method saves much more time and saves more labor force.

·       Safe and reliable: using high-frequency low-level signal does not generate dangerous high voltage.

Main Specifications

Signal source technical parameters

Max output voltage

60V RMS

Max output current

5A

Output frequency

5Hz-3000Hz

Frequency control step

0.1 Hz

Measurement system technical parameters

Voltage



Accuracy

0.5%

Frequency

5-3000Hz

Amplitude

0.2-60V

Current



Accuracy

0.5%

Frequency

5-3000Hz

Amplitude

0.01-10A

Impedance measurement accuracy

0.5%

Impedance measurement range

1ohm-6kohm

Phase measurement range

1o

Inductance measurement accuracy

0.5%

Inductance measurement range

2mH-10H

Capacitance measurement accuracy

0.5%

Capacitance measurement range

0.5-500microF

Unbalance current measurement accuracy

0.5%

Frequency output

100-3000Hz

Amplitude output

0.01-10mA

Other



Operation

Off-line operation/External PC operation

Communication Port

USB/100M Ethernet

Self Protection

Overload/Overheat

Report

1000 Reports

LCD

8.4” TFT

Dimension

364mm x 200mm x 475mm (WxHxD)

Weight

11.8 kg
