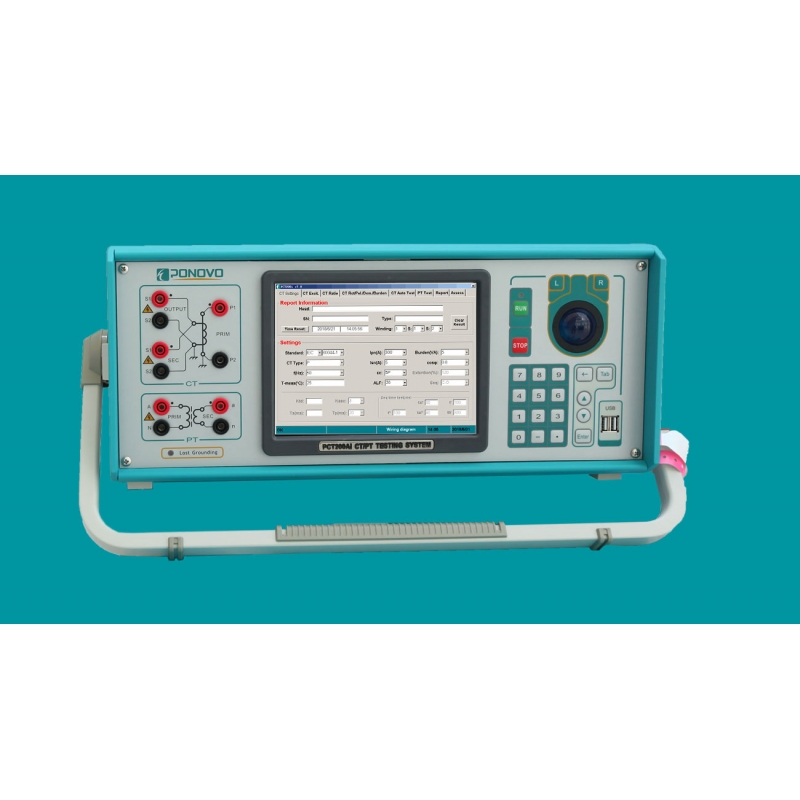

PCT200Ai is a current transformer test set that can finish carious tests of different transformer. Compared with PCT200i, PCT200Ai has better accuracy and it is the only CT analyzer that has passed the tests held by Wuhan High Voltage Research Institute. The max permissible error of the ratio measurement is ±0.05% and max phase measurement is ±2 min.

Features:

·       Able to test M/P/TP type CT and PT.

·       Ratio check up to 30,000:1 and 45,000:5.

·       Knee point check up to 45,000V.

·       Standards: IEC60044-1. IEC69944-6, IEC61869-2, ANSI/IEEE C.57.13.

·       Result will be saved directly in Excel format.

·       Report can be transferred to flash disk via USB port.

Main Specifications
