Features and Benefits

The FPA-12/066F is a PD free AC hipot test set provides continuously adjustable output voltages for overvoltage withstand testing of the following:

-Motor windings

-Generator windings

-Bus duct switchgear

-Circuit breakers

-Reclosers

-Vacuum bottles

-Hot sticks

-Other high voltage insulation requiring AC

Features:

-Continuously adjustable output voltage

-Adjustable overload, 10-110% of rated output current

-Fixed 120% primary overload

-Zero start and external interlock provision

-Keyed EMERGENCY OFF pushbutton

-Top mounted safety lights indicating POWER ON and HIGH VOLTAGE ON conditions

-Secondary connected analog voltmeter, TWO range scale

-Triple range analog current meter

-Dual full kVA output 0-12 kV AC, 500 mA, and 0-6 kV AC, 1000 mA

-Guard/ground return mode switch

-Burn reactor with ON/OFF switch

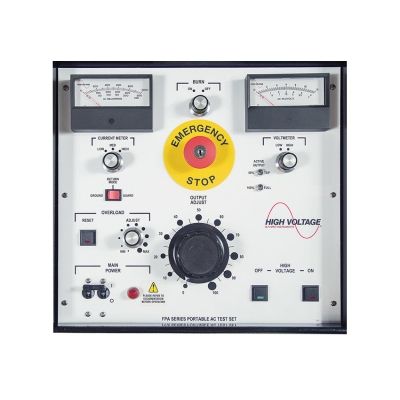

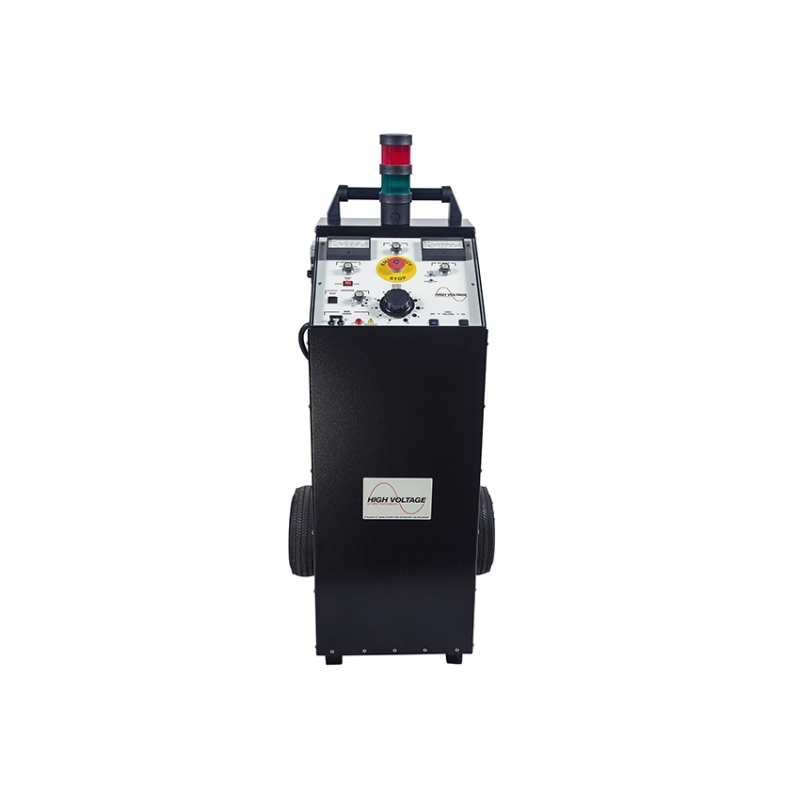

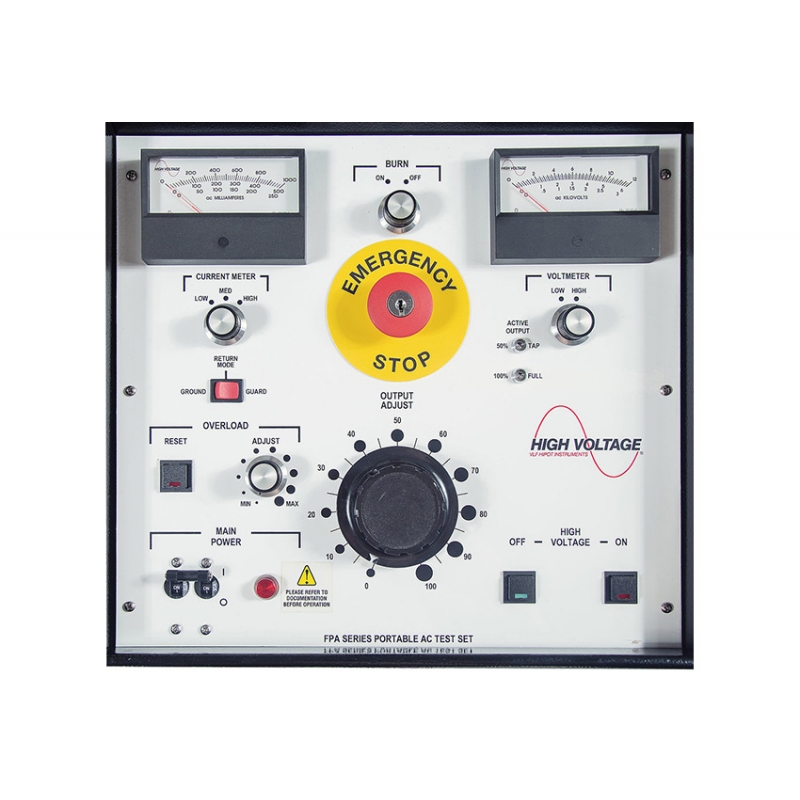

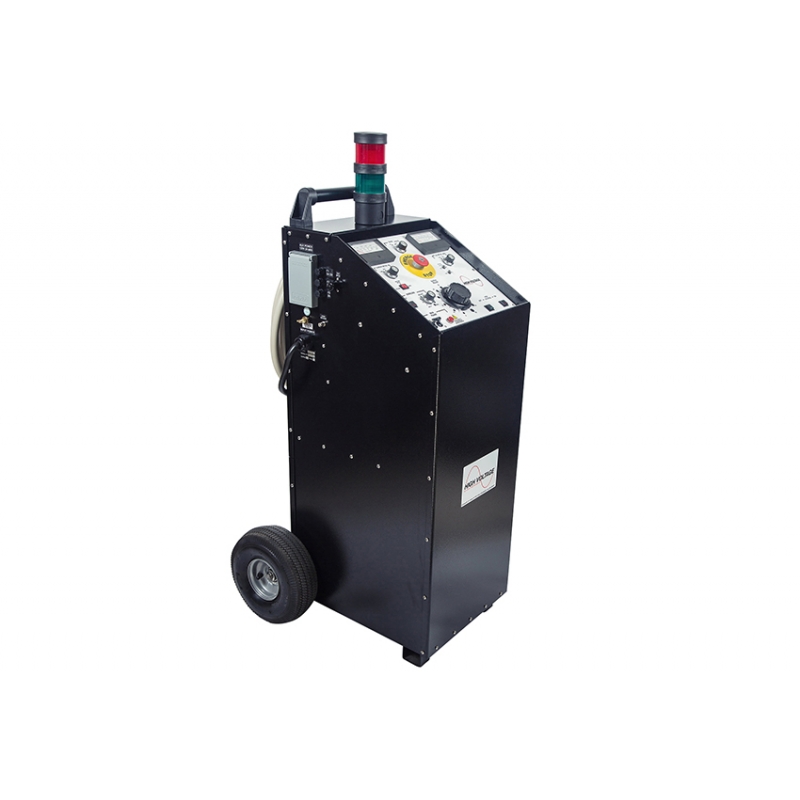

-One-piece mobile design in heavy-duty hand truck type cabinet (215 lbs.)

-Transit protected meters prevent meter damage between test sites

Specifications

Input: 230 V, 50/60 Hz, 30 A, single phase

Output: 0-6 kV AC, 6 kVA resistive load (1000 mA)
              0-12 kV AC, 6 kVA resistive load (500 mA)

Duty: 6 kVA: 1 hour ON, 1 hour OFF
          5 kVA: continuous

Distortion: <5%

Meter Accuracy: 2% FS Accuracy

Voltmeter: 3.5”, scaled 0-3/6/12 kV AC (RMS)

Current Meter: 3.5″, scaled 0-250/500/1000 mA AC

Distortion: Less than 5%

Size & Weight(W x D x H): 23 x 23.5 x 46 in., 215 lb. 58 x 60 x 117 cm, 98 kg

Output Termination: 15 ft. long shielded cable
