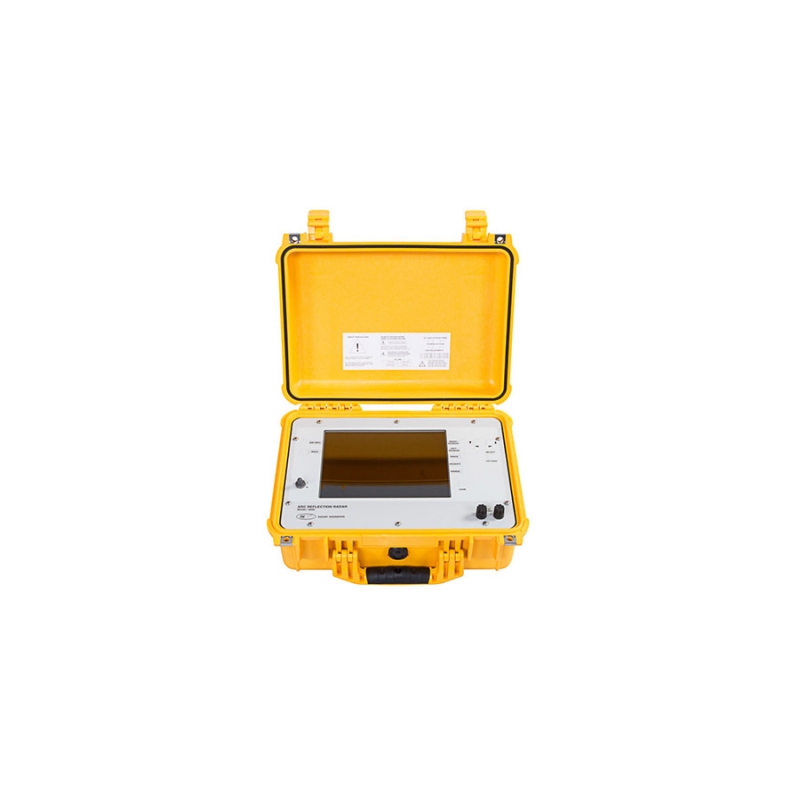

Radar Engineers Model 1669 is a portable Time Domain Reflectometer (“cable radar”) from Radar Engineers specially designed for use with thumpers connected to an arc reflection filter for “pre-locating” high resistance (pinhole) faults in buried primary power cables. This product integrates seamlessly with the CDS Series and the VT-33 thumper for pre-locating faults using the arc reflection method.

The 1669 also locates low resistance faults, splices, and opens on a stand-alone basis. Digital radar captures and holds the fault trace at the instant of the thump. Software then automatically positions a marker at the fault, and the distance to the fault is indicated on the screen. Model 1669 is also packaged in a rugged weather resistant plastic case and can be bolted to most hand trucks.

Features:

• Field portable
• Durable Pelican-style case
• Large 10.5″ sunlight-readable LCD display
• Arc reflection method
• Current pulse method (Optional)
• 3∅ comparison and difference
• Automatic cursor placement
• Built in memory to save waveforms
• RS232 serial port to download data to PC

Specifications

Power: 115/230 V AC, 50/60 Hz

Modes: Arc reflection
               Current impulse (optional) Direct L 1
                3 Ø comparison and difference

Display: 10.5″ diagonal color LCD display, sunlight readable

Velocity Factor: 25.0% – 99.9%

Markers: Two movable vertical markers measure the distance between any two points; distance readout continually updated

Resolution: ≈3 feet or 0.4% of selected range

Zoom: For ranges 3,000 feet and above

Memory: 30 waveform memories

Pulse Width: Automatically increases with range

Range: TDR: 500 – 48,000 feet
              CI: 1,500 -192,000 feet (metric measurement available)

Serial Port: RS232 port for computer interface

Size & Weight(W x D x H): 16.25 x 13 x 6.75 in., 15 lb. 41 x 33 x 17 cm, 7 kg
