PTS-600(F)

Description

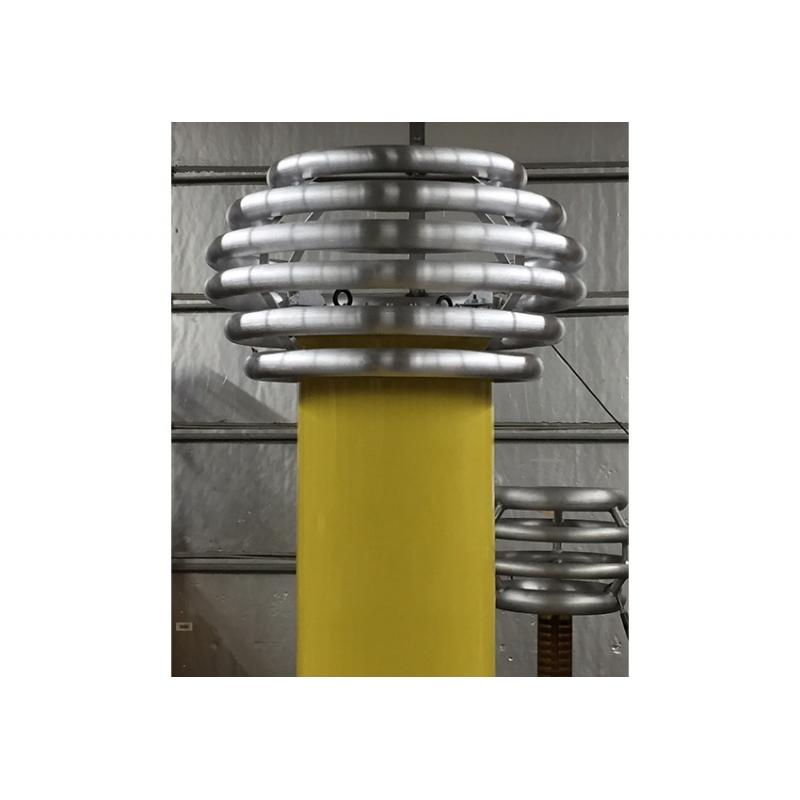

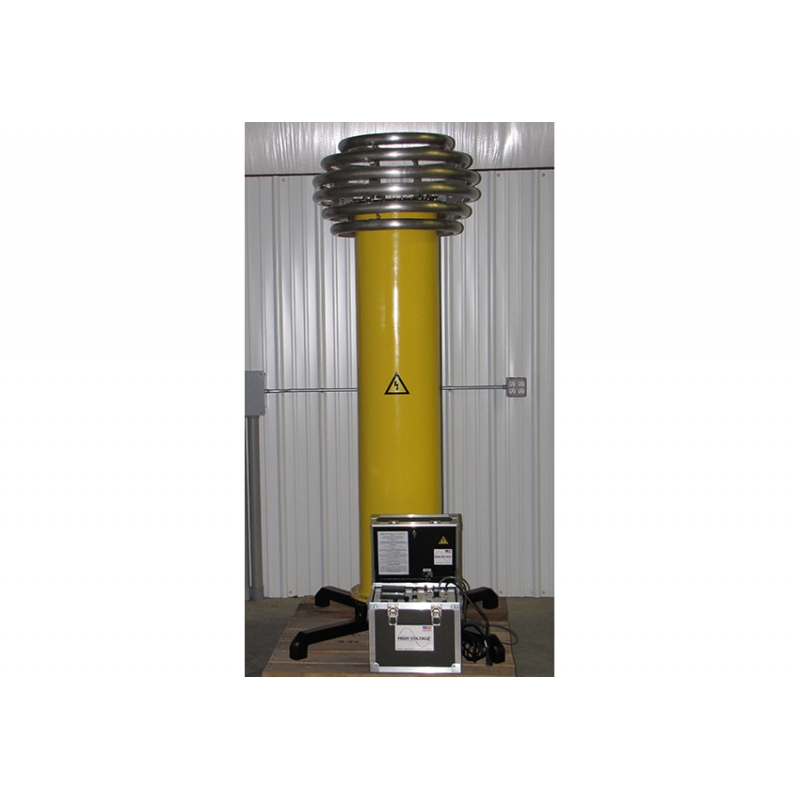

The PTS-600 and PTS-600F are CE marked DC Hipots designed as a two-piece system with a small, portable controller and a single piece high voltage section housed in a fiberglass cylinder with a spinning output.

The PTS-600(F) is designed to be rugged and reliable, equipped with all the features needed for portable maintenance testing of new or service aged electrical apparatus and cables.



Features:

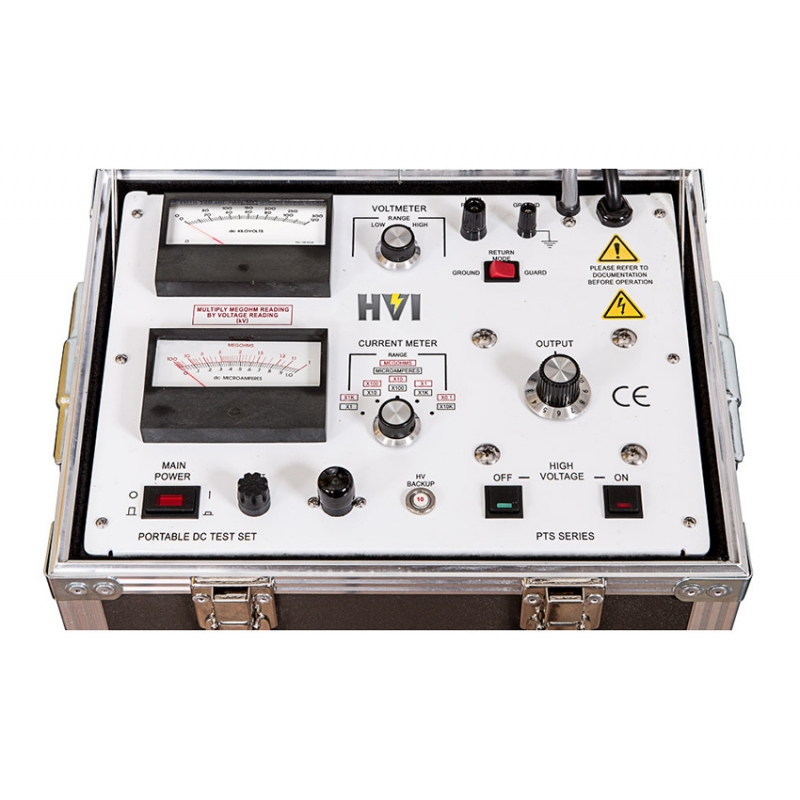

-Two range voltmeter and five range current meter

-MΩ readings at any output voltage (w/analog meters)

-Insulated return guard circuit to bypass stray leakage currents

-Rugged case (field) with cushion grip handles and storage for leads

-Internal discharge resistors to assist external bleed resistors

-External safety interlock provision

-Automatic transit protected meters rated 100 uA for durability

-Benchtop or field controller available, analog or digital metering



Specifications

Input: PTS-600 – 120Vac, 50/60Hz, 30A
           PTS-600 – 230Vac, 50/60Hz, 15A

Output: 0 – 600 kV DC @ 3 mA with field controller or @ 5 mA with benchtop controller

Polarity/Ripple: Negative output, positive ground Ripple 2% – 3% depending on model

Duty: Continuous, capacitive charging

Voltmeter: 3.5″, scaled 0-300/600 kV DC ±2% F.S.

Current Meter: 3.5″, scaled 0-1.0 μA DC, ±2% F.S.

                         with multipliers of x 1, x 10, x 100, x 1 k, x 10 k Guard/ground load return

Megohmmeter: 100 – 1 MΩ w/x.1, x1, x10, x100, x1k ranges, w/analog meters

Size & Weight(W x D x H): Controls: 21 x 15.5 x 15 in., 70 lb. 535 x 395 x 382 mm, 32 kg
                                              Tank: 36 in. base, 15 in. dia. cylinder x 89 in. h, 580 lb.
                                              914 mm base, 381 mm dia. cylinder, 1105 mm h, 263 kg
