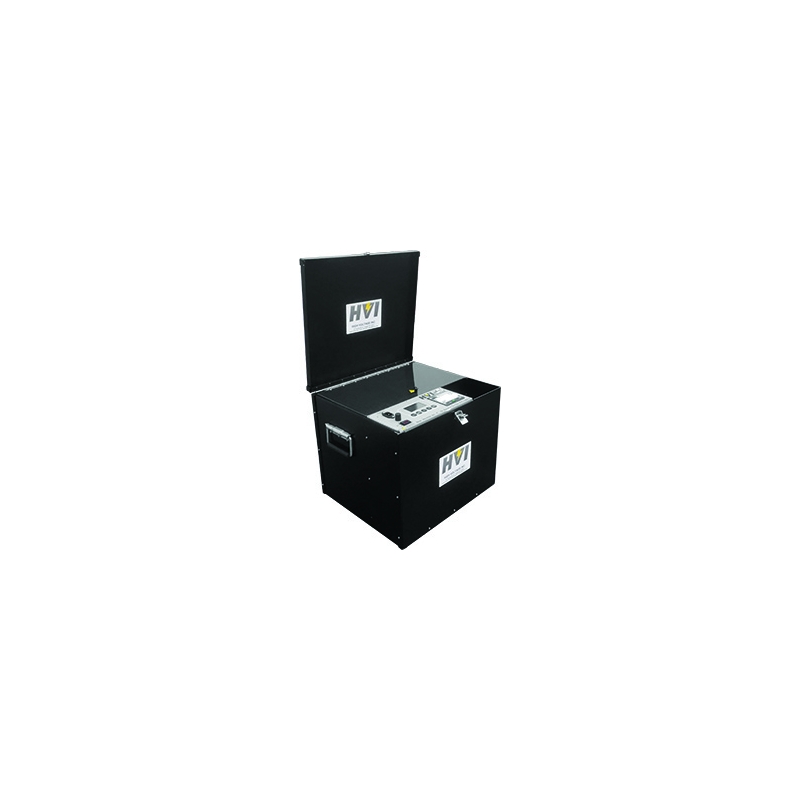

The DTS-100A and DTS-100AF are fully automatic liquid dielectric test sets, typically used for testing the breakdown voltage level of insulating oils, hydraulic oils, and other dielectric fluids. The most common world standards including ASTM D-877, ASTM D1816, and IEC 156 are preprogrammed into the controls for easy operation. Just hit the start button and the test is performed. Custom test sequences may also be programmed. Test results are stored internally and can be downloaded to a computer via RS232 or printed using the onboard thermal printer. Convenience features like a removable oil drip tray and rugged design make our DTS series ideal for field use.

• Clear and easy to use controls
• 128 x 64 dot matrix crystal display
• “12 preprogrammed standard test sequences; ASTM D1816/12, ASTM D877/13, IEC 156/95, IEC 156/63, ASTM D1816/84, ASTM D877/87, UTE C27-221/74, CEI 10-1/73, VDE 370, IRAM 2341/72, RVHP 1985, and PN-77/ED4408
• Internal memory holds last 50 tests w/ RS232 interface
• User definable test sequences
• Ambient temperature sensor
• English, German, Spanish, French, Greek
• Thermal printer included

Specifications

Input: 120 Vac, 60hz, 7A (DTS-100A)
           230 Vac, 50/60hz, 3A (DTS-100AF)

Output: 0-100 kVac, 800 VA resistive

Optional Test Cells (Sold Separately): TCD-N3 for ASTM D877, TCD-N5 for ASTM D1816, TCD-NI2 for IEC 156

Controls: 10 pre-programmed test sequences / User programmable test routines. 128 x 64 dot matrix crystal display / Intuitive, easy to use controls in English, German, Spanish, French, Greek / Thermal printer

Size and Weight: 18.5 x 16.5 x 16.5 in., 100lb 470 x 419 x 419 mm, 45kG

Output Termination: Dual high voltage sections with brass corona spheres in test chamber

Size & Weight(W x D x H): Control: 21 x 15.5 x 15.25 in., 80 lb. 534 x 394 x 387 mm, 36 kg
                                               HV Tank: 28 x 28 x 69 in., 1050 lb. 712 x 712 x 1753 mm, 476 kg

Output Termination: Top toroid

Test Cells

TCD-N3 – For ASTM D877, flat disc electrodes, 625mL sample size, 0.100-inch gap adjustment gauge

TCD-N5 – For ASTM D1816, spherical electrodes, 625mL sample size, 0.100, 0.080, and 0.040-inch gap adjustment gauges, includes motorized stirring assembly

TCD-NI2 – For IEC 156, spherical electrodes, 625mL sample size, 0.100, 0.080, and 0.040-inch gap adjustment gauges,
