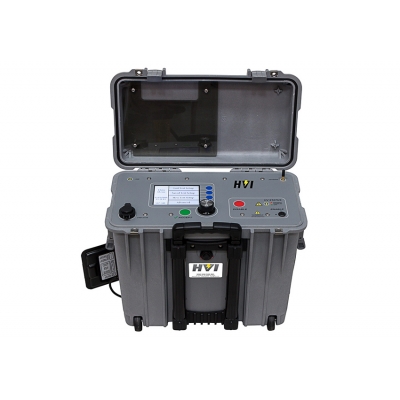

VLF-34E

Description

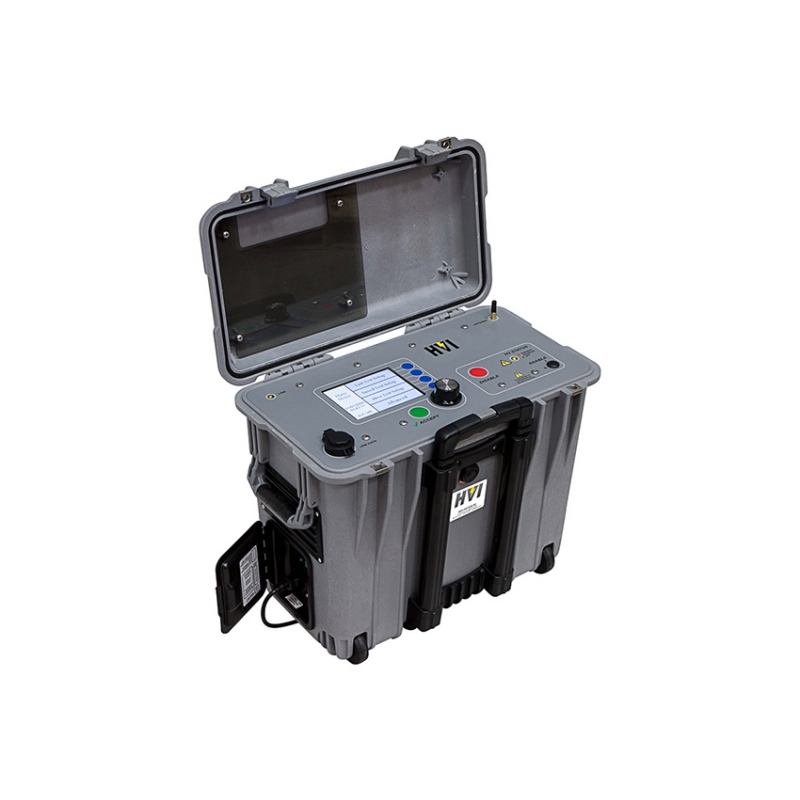

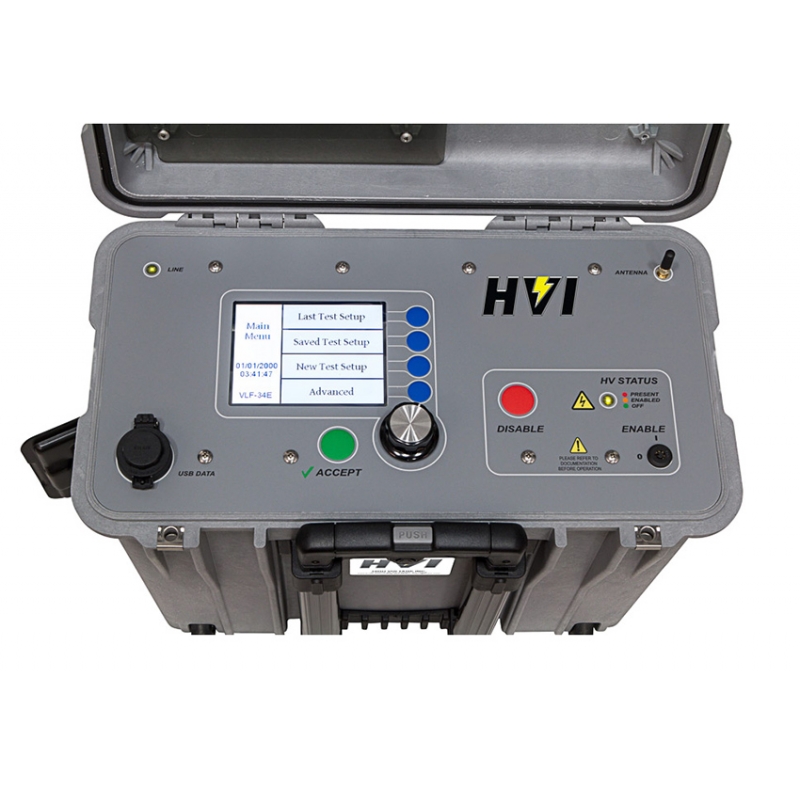

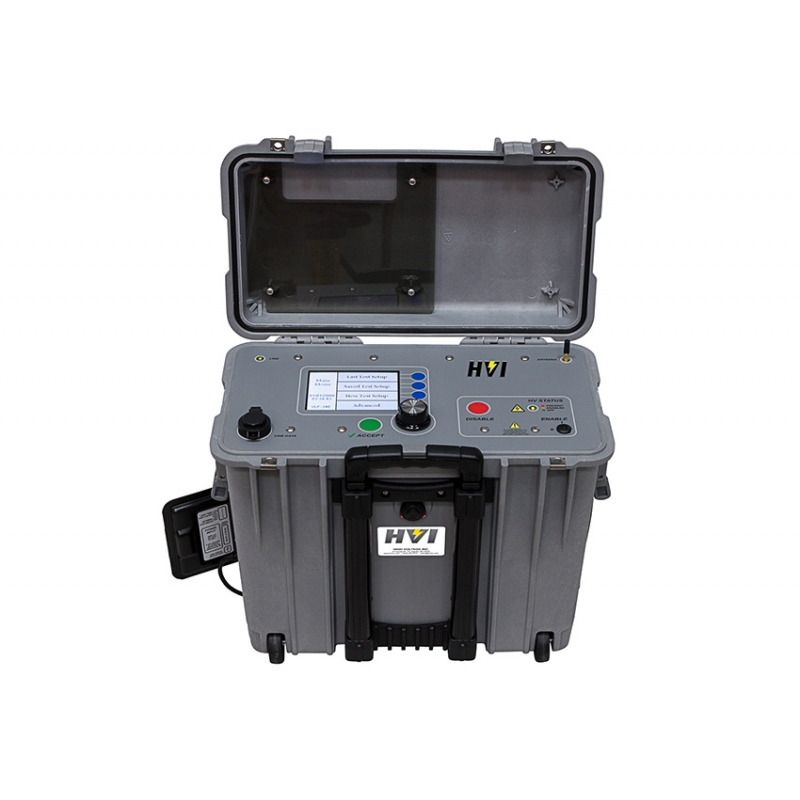

The VLF-34E is a top performer from the latest generation of HVI VLF AC hipots using a dry-type, air-cooled, solid state design with microprocessor control. Test programming, data retrieval, and custom PC software are intuitive and easy to learn. This unit is portable, affordable, and designed to withstand years of field use.

Its 0 – 34 kV AC peak/0 – 24 kV RMS output voltage meets world standards for maintenance testing up to 25 kV class cable, and its sine wave output pairs easily with the optional tan delta and partial discharge measurement systems.

Features:

  • VLF and DC output
  • Programmable test sequences
  • Automatic & manual control
  • USB port for exporting data
  • Wireless computer interface for remote control operation and data upload
  • Onscreen tan delta data display with optional TD-34E
  • XBee wireless for better signal sustainability and broader range than Bluetooth

Specifications

The VLF-34E meets the following specifications: IEEE 400.2, IEEE 400, IEC 60060-3, CENELEC HD 620/621, VDE DIN 0276-620/621. IEEE 433 for motors/gens.

Input: 115 V AC – 230 V AC, 50 Hz/60 Hz, 5 A max

Output: 0-34 kV AC peak/0-24 kV AC RMS, sinusoidal DC: +/- 34 kV square wave: 34 kV sheath tester

Duty: Continuous

Frequency: 0.1 Hz to 0.01 Hz

Load Rating: 0.5 µF @ 0.1 Hz @ 34 kV
                       1.0 µF @ 0.05 Hz @ 34 kV
                       5.0 µF @ 0.01 Hz @ 34 kV
                       µF rating increases at lower voltages
                       Ex: 0.77 µF @ 0.1 Hz @ 22 kV peak

Metering: Voltage kV peak or RMS

Current: mA peak or RMS

Calculated: Capacitance, resistance, flash overvoltage, time to failure

Size & Weight (W x D x H): 19.7 x 12 x 18 in., 45 lbs. 500 x 305 x 458 mm, 21 kg

Case: Hard Pelican-type case with extendable handle and wheels

Output Termination: 20’ RG8/U, Ground 20’ #2
