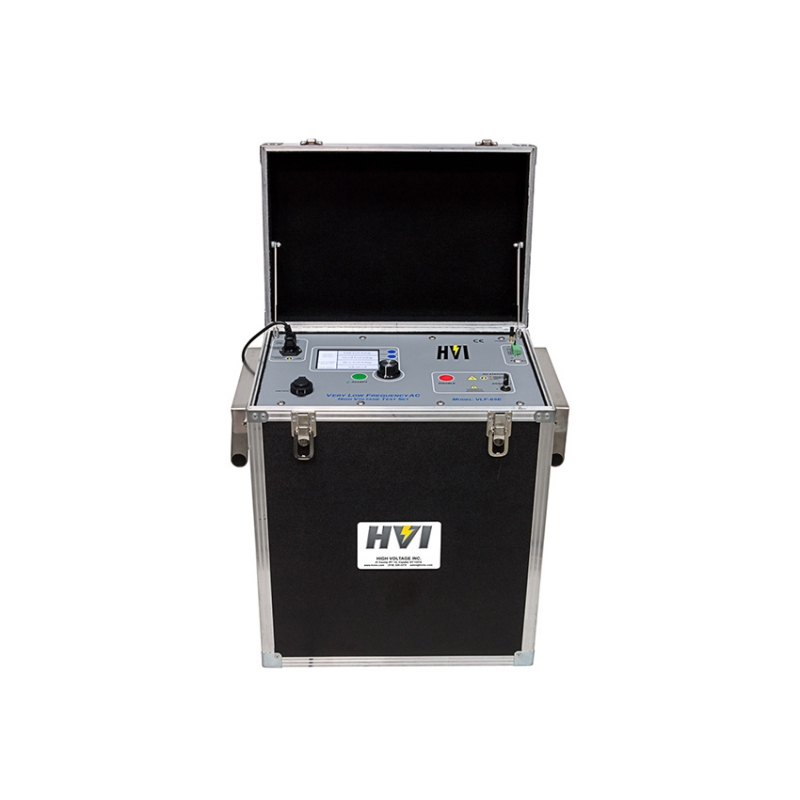

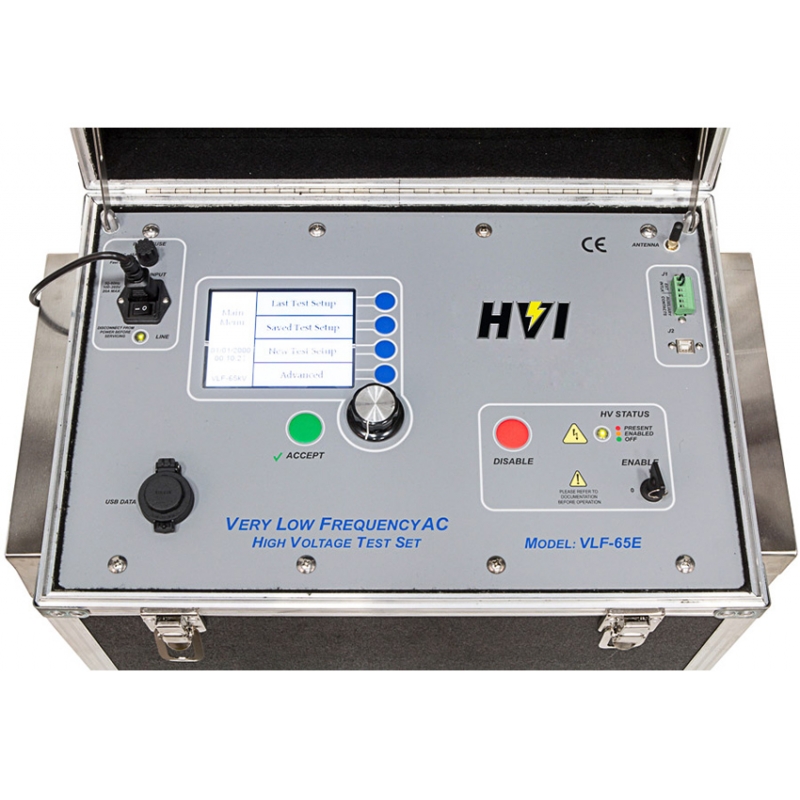

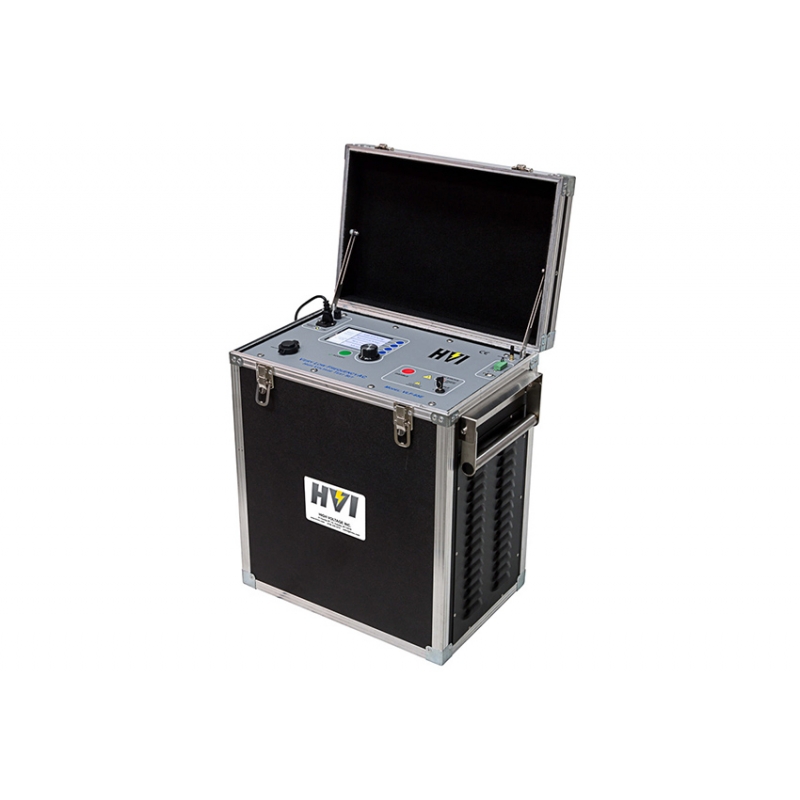

The VLF-65E is a top performer from the latest generation of HVI VLF AC hipots using a air-cooled, solid state design with microprocessor control. Test programming, data retrieval, and custom PC software are intuitive and easy to learn. This unit is portable, affordable, and designed to withstand years of field use.

Its 0 – 65 kV AC peak/0 – 46 kV AC RMS output voltage meets world standards for acceptance testing up to 35 kV class cable, and its sine wave output pairs easily with optional tan delta and partial discharge measurement systems.

Features:

• VLF and DC output
• Programmable test sequences
• Automatic & manual control
• USB port for exporting data
• Wireless computer interface for remote control operation and data uploadOnscreen tan delta data display with optional TD-65E
• XBee wireless for better signal sustainability and broader range than Bluetooth

 Specifications

The VLF-65E meets the following specifications: IEEE 400.2, IEEE 400, IEC 60060-3, CENELEC HD 620/621, VDE DIN 0276-620/621. IEEE 433 for motors/generators.

Input: 100 V AC – 265 V AC, 50 Hz/60 Hz, 20 A max

Output:  VLF sinewave: 0 – 65 kV AC peak/46 kV AC RMS @ 28 mA RMS
              VLF square wave: 0 – 65 kV AC peak @ 22 mA
              DC: 0 – ± 65 kV @ 22 mA
              Sheath test – programmable

Duty: Continuous

Frequency: 0.1 Hz to 0.01 Hz in steps of 0.01 Hz

Load Rating: 1.0 μF @ 0.10 Hz @ 65 kV
                       2.0 μF @ 0.05 Hz @ 65 kV
                       5.0 μF @ 0.02 Hz @ 65 kV
                       10.0 μF @ 0.01 Hz @ 65 kV
                       μF rating increases at lower voltages
                       Ex: 1.4 μF @ 0.1 Hz @ 47 kV peak

Voltmeter: Voltage kV peak or RMS, +/-1% accuracy

Current Meter: mA peak or RMS, +/-1% accuracy

Calculated: Capacitance, resistance, tan delta flash overvoltage, time to failure

Fault Response: Smart Fault Management – fault burning or shutdown on fault

Reports/Data: Up to 50 test records can be stored in non-volatile memory or removable USB memory stick

PC Interface: USB and XBee wireless

PC Software: Remote control & test data reporting

Size & Weight(W x D x H): 22 x 14.5 x 26 in., 150 lb 559 x 369 x 660 mm, 68 kg

Output Termination: 20’/6 m flexible x-ray, ground #2 – 20’/6 m #10 test leads, ground hook, line cords
