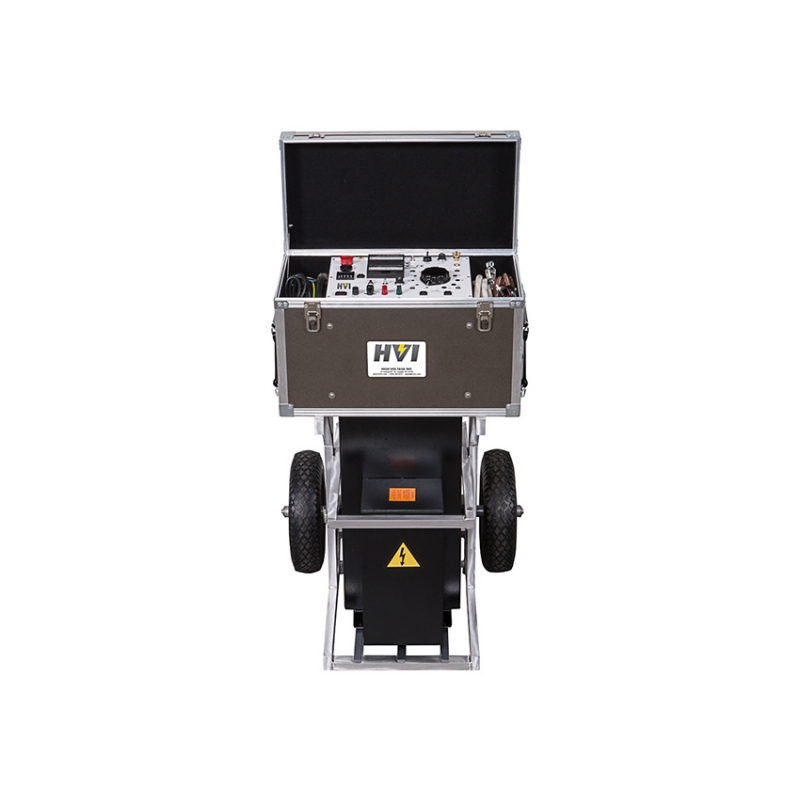

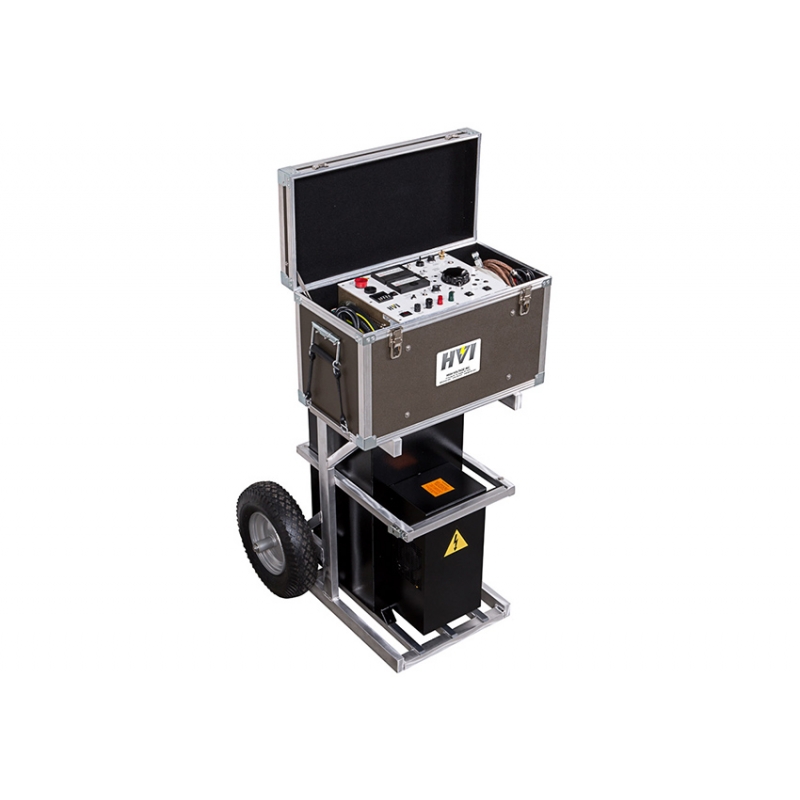

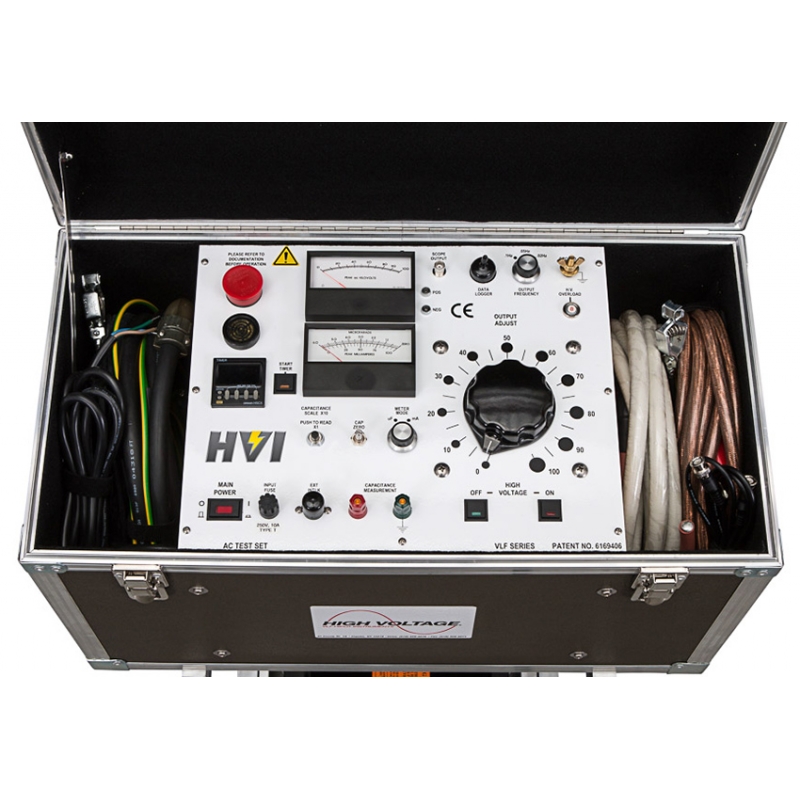

The VLF-90CMF is a higher voltage model designed to test cables rated up to 50 kV. This model includes a charging current and load capacitance meter, test dwell timer, and polarity indicating lights. Its two-piece design makes it easier to transport, and an optional hand truck is available for purchase.

Specifications

Input: 230 V, 50/60 Hz, 20 A peak, 15 A average

Output: 0-90 kV AC peak, 0.1/0.05/0.02 Hz sinusoidal

Duty: Continuous

Load Rating: 0.55 µF @ 0.1 Hz
                     1.1 µF @ 0.05 Hz
                     2.75 µF @ 0.02 Hz

Voltmeter: 0 – 100 kV AC peak

Charging Current Meter: 0 – 100 mA peak

Load Capacitance Meter: 0 – 6 µF

Test Duration Timer: Programmable

Output Termination: Shielded EPR output cable – 20 ft. (6m) Interconnect cable – 10 ft. (3 m)

Size & Weight(W x D x H): Controls: 26 x 13 x 16 in., 75 lb. 660 x 330 x 406 mm, 34 kg
                                             HV Tank: 15 x 21 x 29 in., 293 lb. 381 x 533 x 737 mm, 133 kg
