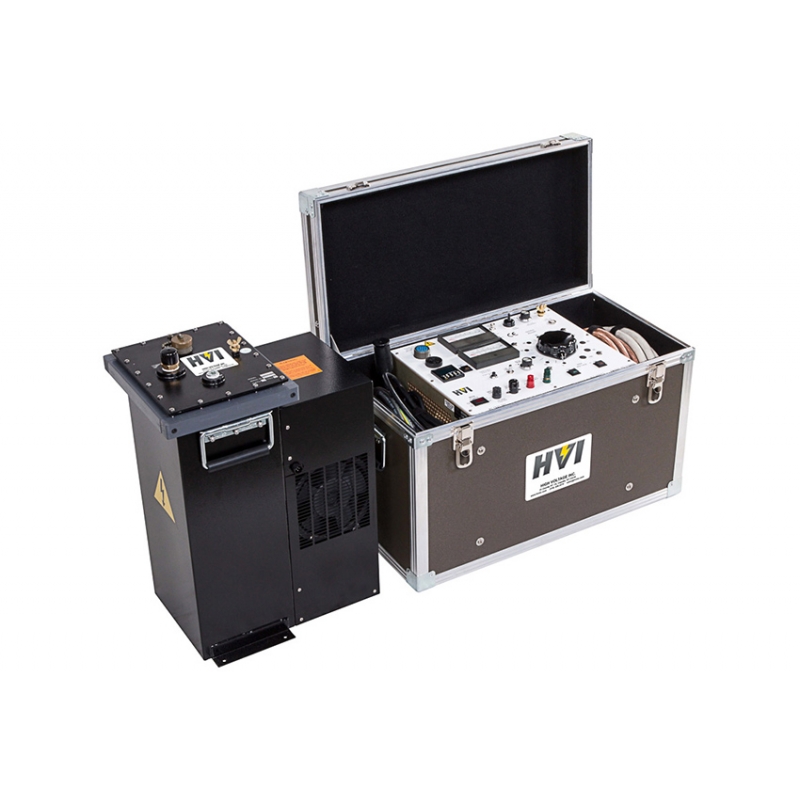

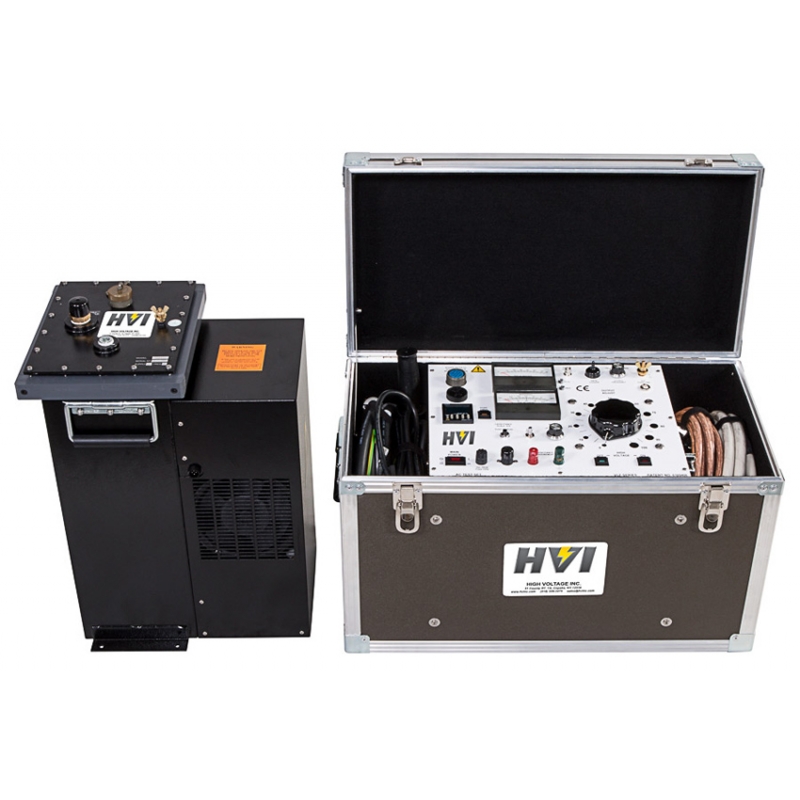

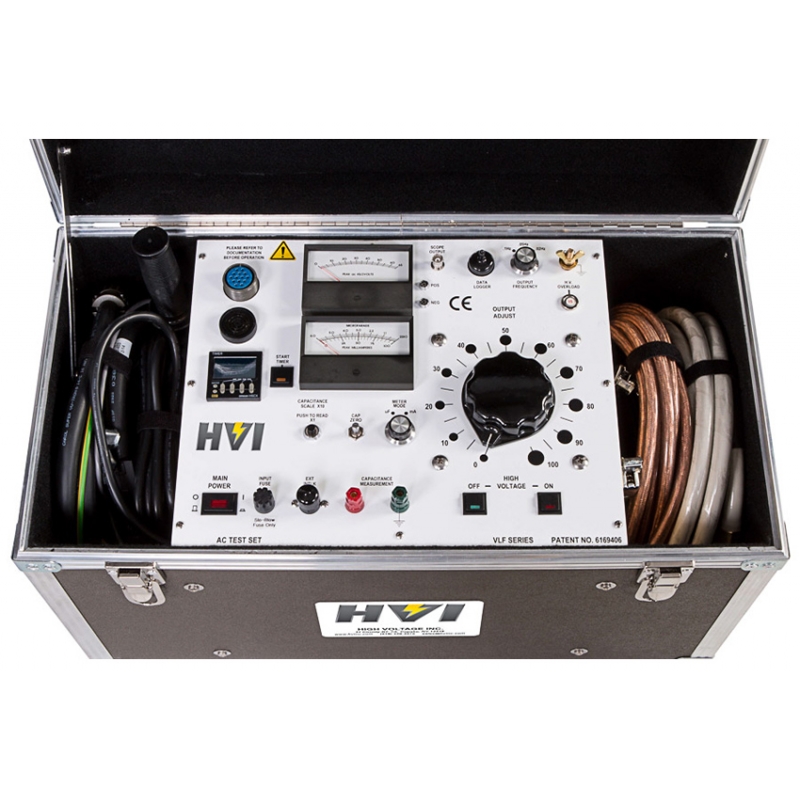

VLF-6022CM(F) has a 62 kV AC peak output suitable for testing cables rated up to 35 kV. Its high load capacity can test up to over 10 miles (16 km) of cable, depending on type. This model includes: a charging current and load capacitance meter, test timer, and polarity indicating lights. The two-piece construction facilitates easy transport and storage.

Specifications

Input: 120 V, 60 Hz, 15 A peak, 7.5 A average
           (F) 230 V, 50/60 Hz, 8 A peak, 4 A average

Output: 0 – 62 kV AC peak, 0.1/0.05/0.02 Hz sinusoidal

Duty: Continuous

Load Rating: 1.1 µF @ 0.1 Hz
                       2.2 µF @ 0.05 Hz
                       5.5 µF @ 0.02 Hz

Voltmeter: 0-65 kV AC peak

Charging Current Meter: 0 – 100 mA peak

Load Capacitance Meter: 0 – 6 µF

Test Duration Timer : Programmable

Output Termination: Shielded RG/8U output cable – 20 ft. (6 m) Interconnect cable – 10 ft. (3 m)

Size & Weight(W x D x H): Controls: 26 x 13 x 16 in., 75 lb. 660 x 330 x 406 mm, 34 kg
                                             HV Tank:15 x 10.25 x 21.5 in., 120 lb. 381 x 260 x 546 mm, 45 kg
