Multifunction Line Terminal Protection and Control Device for Auto reclose and Check Synchronism

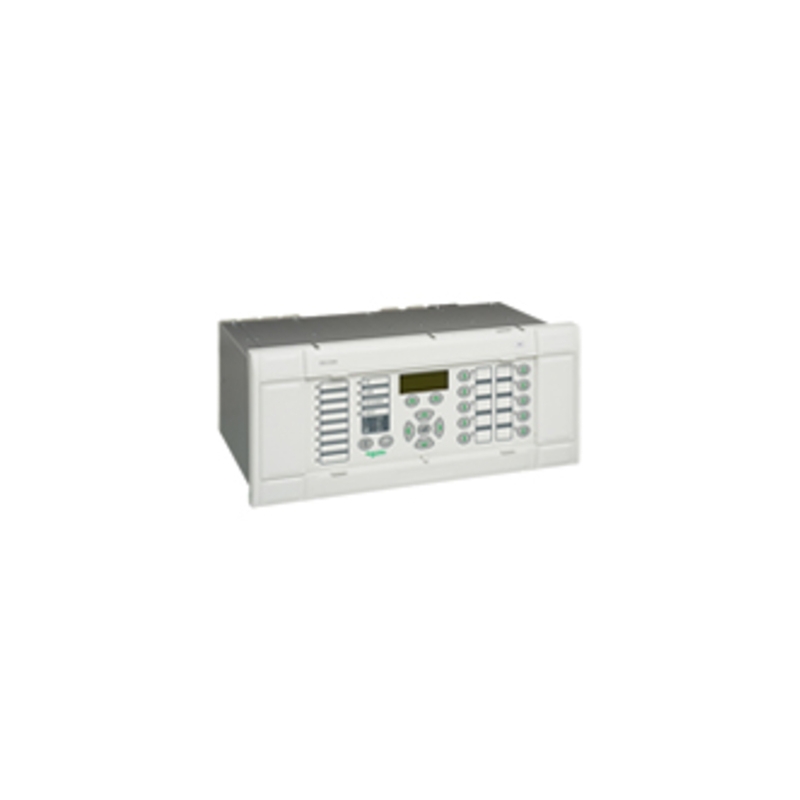

MiCOM P841 is a multifunctional line terminal IED for control and back-up protection in transmission and sub-transmission feeder bays. Models available: MiCOM P841

Features

MiCOM P841 Model A for Single Breaker Applications with 16 Inputs and 14 Outputs

MiCOM P841 Model B for Two Breaker Applications with 24 Inputs and 32 Outputs

Single or Three-phase auto-reclosing applications

MiCOM P841 Model A can be applied as a stand-alone solution for Auto-reclose and Check synch functionality for feeders controlled by a single circuit breaker.

MiCOM P841 Model B can be applied as a stand-alone solution for Auto-reclose and Check synch functionality for Dual circuit breakers applications such as ring bus/mesh corner formations and the breaker-and-a-half configurations.

Standard Manufacturers Warranty: 2 years

Advantages

The logic capabilities of the MiCOM P841 products are extremely versatile, for instance managing leader-follower reclosing schemes in case of dual breaker applications.

Transmission-class circuit breaker failure protection for one or two breakers. The breaker failure protection may be initiated from internal protection within the P841, and also from external devices.

Single pole and three-pole breaker operation is supported, with independent supervision & condition monitoring statistics for each pole

Trip circuit supervision, control, and interlocking schemes can be designed in graphical support software.

Ancillary applications include use of the P841 for binary I/O concentration, disturbance recording, or as a gateway to SCADA protocols and IEC 61850

Multiple protection elements are provided, such as directional overcurrent, earth fault, voltage and frequency. This allows P841 to be deployed as a back-up IED in transmission applications, or as the Main 2 protection solution for sub-transmission systems.
