Insulated Gin Pole / Cargo Boom

Description

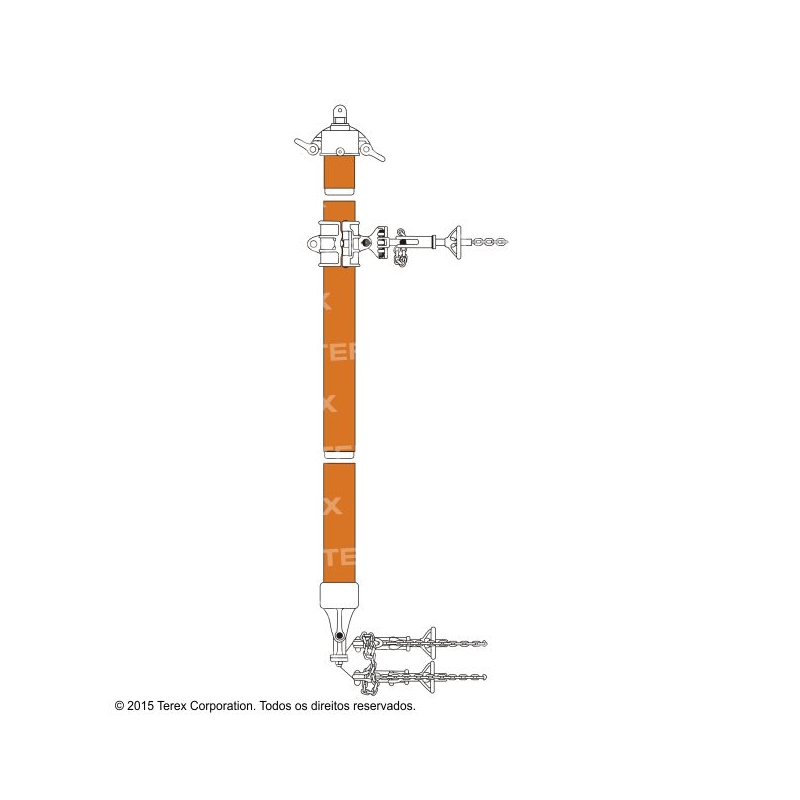

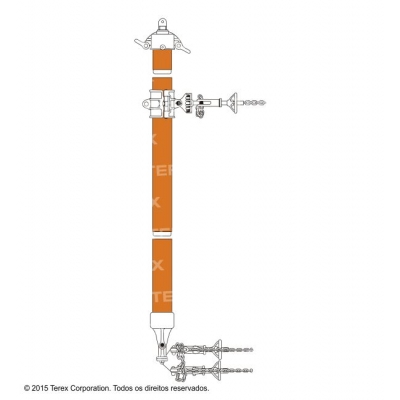

The gin pole for heavy load lifting is built with a Ritzglas square pole and has three chain tighteners with the respective adapters for attachment to the structures.

The square head on the top of the mast has two eye-hooks to facilitate load fixing. When a pole clamp is used at the top of the pole, it is possible to use a wire tong for better stabilization.

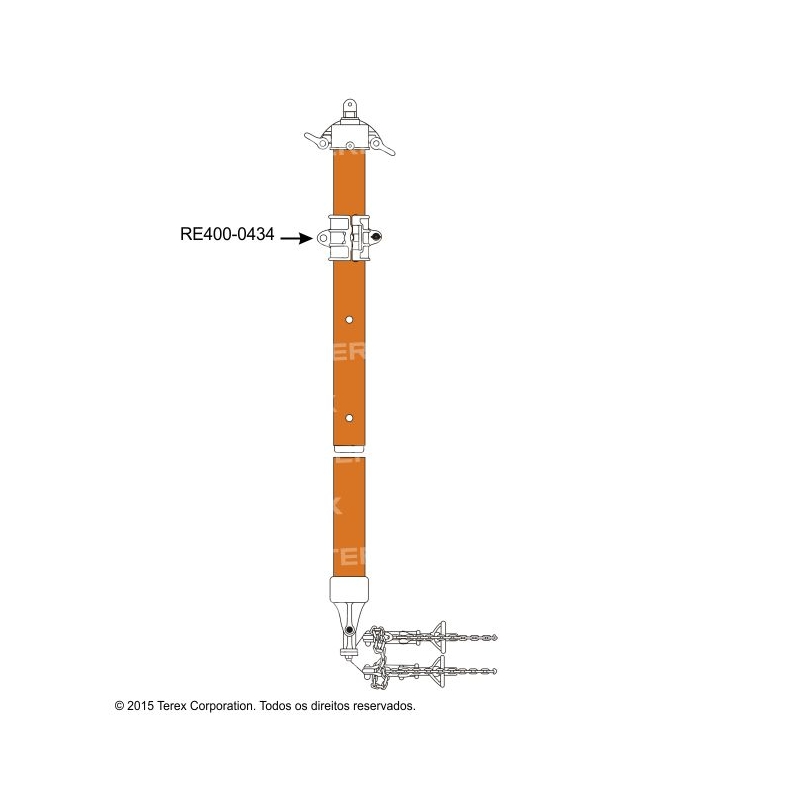

The cargo boom has a square pole clamp (RE400-0434) installed next to the pole end. This clamp can be adjusted in three different positions for a better load lifting and retention to the structure.

The base saddle allows pivoting the cargo boom up to 90°, i.e. from horizontal to vertical position and vice-versa, as well as 180° rotation. The top head is similar to the one of the gin pole.

NOTE: The rated work loads do not include the pulling force



GIN POLE



Cat. No.


(Diam.) (in)

Insulating
Length (ft)

Rated
Work Load (lb)

Approx. Weight (lb)

 RC400-0470

4" x 4"

7.5

5000

73.19

 RC400-0472

11.5

89.07



CARGO BOOM



Cat. No.


(Diam.) (in)

Insulating
Length (ft)

Rated
Work Load (lb)

Attachment

Approx. Weight

 RC400-0475

4" x 4"

15.50

1000

Pole

100.53

 RC400-0483

Tower

99.21



REPLACEMENT PART



Cat. No.

Description

Approx. Weight (lb)

 RE400-0434

Square pole clamp for cargo boom

8.82
