Rope

Description

Polypropylene ropes have as their main features, high mechanical strength, reduced stretching and light weight.

These ropes, like any other ropes for works on energized systems must be kept in clean an dry places.

Even considering that the ropes have a good dielectric strength when new, they are not considered insulated for works on energized system, therefore when in contact with energized parts, it is necessary to use an insulated pole in line with the rope.

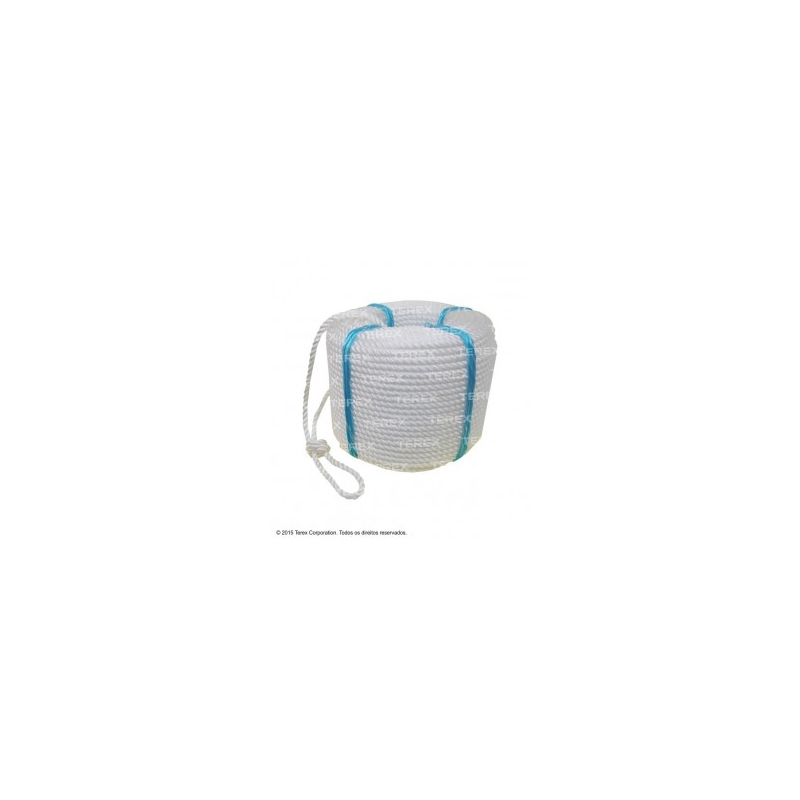

The ropes are supplied in white color, with polypropylene strands, threeleg- braided, in rolls of 220 m (720 ft).

ROPE



Cat. No.

(Diam.)
(in)

Rated
Work Load (lb)

Tensile
Strength (lb)

Approx. Weight (lb/m)

 RM1895-1

1/4"

236

1184

0.04

 RM1895-2

3/8"

507

2542

0.09

 RM1895-3

1/2"

886

4430

0,07

 RM1895-4

5/8"

1283

6415

0.26

 RM1895-5

3/4"

1618

8090

0.37

This bag is used for transportation and storage of ropes used in live line works to prevent contamination. Bags are also essential for easy handling of ropes during the tasks.

Made of waterproof canvas, it is provided with metallic rings and tightening rope around the top border for proper closing.



ROPE BAG



Cat. No.

Description

Approx. Weight (lb)

 FLV16364-1

Bag for transportation and storage
diam. 300 x 400 mm (0.98 x 1.31 ft) deep

4.19
