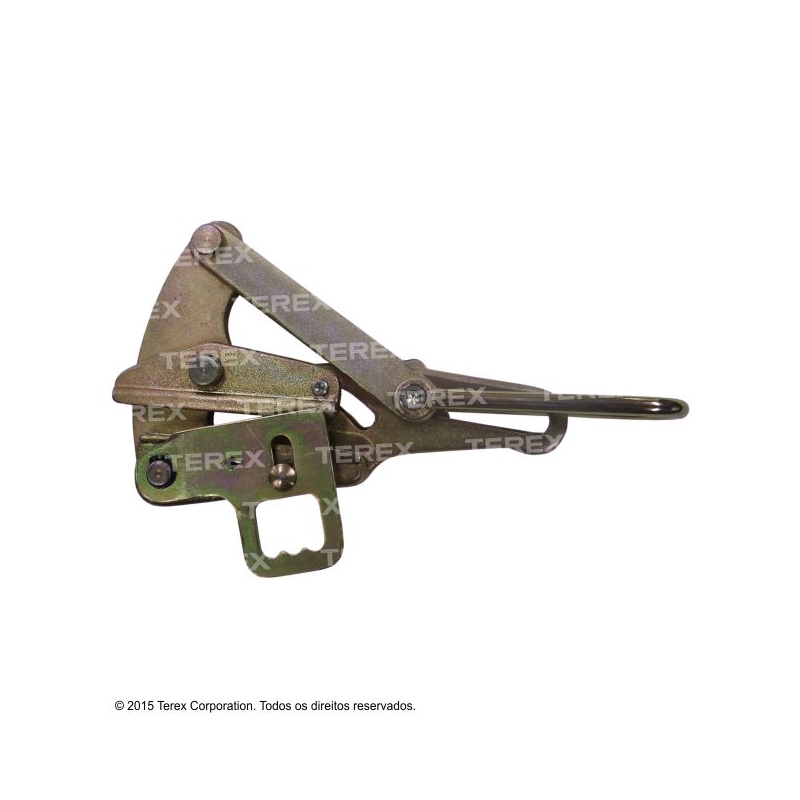

Wire Grip

Description

The wire grips are intended for conductors straining on live lines.

The movable grip on top provides its installation to the conductor by using an insulating hot stick and also, when loose, it can be used as a locking device, preventing it from falling off accidentally.

LIVE LINE WIRE GRIPS

LIVE LINE WIRE GRIPS



Cat. No.

Conductor (diam.)

Load Capacity

Gripper

Approx.
Weight (lb)



Minimum (in)

Maximum (ft)

Working (lb)

Rupture (lb)

Type

Material



51.E07.D20-CE

0.2"

0.4"

1764

4409

DC

Bronze

3.26



51.E07.D30-CE

0.3"

0.5"

1764

4409

4.19



51.E07.D40-CE

0.5"

0.7"

3748

7937

7.72



51.E07.D50-CE

18,80

0.9"

3748

7937

7.72



The double round shape gripper is suitable for alumunium and copper cables
