Tie Stick

Description

The tie sticks are made with a variety of heads to meet specific needs or the  lineman’s preference.

The hook sticks (rotary or not) are quick and easy to operate for handling of wire-formed loops. The rotary blade stick is used to handle wire-formed loops, which are not provided with eyes at its ends.

Tie Stick



Cat. No.

Description

Dimensions

Approx.
Weight

Diam.
(in)

Total
Length (ft)

Insul.
Length (ft)

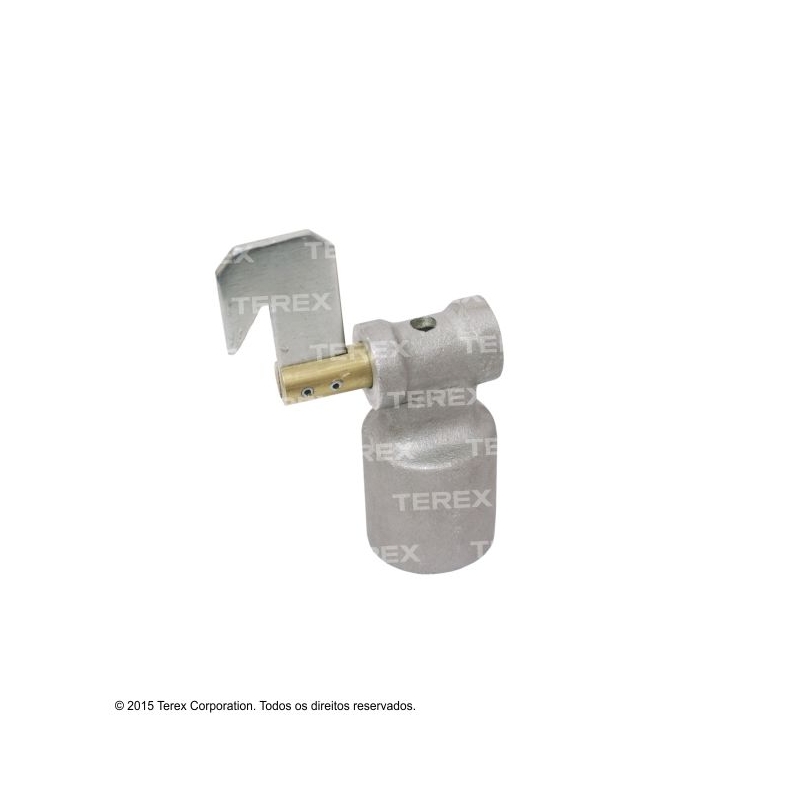

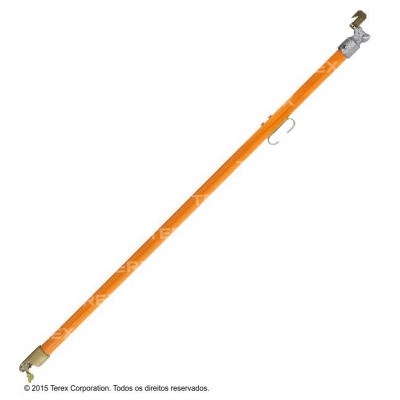

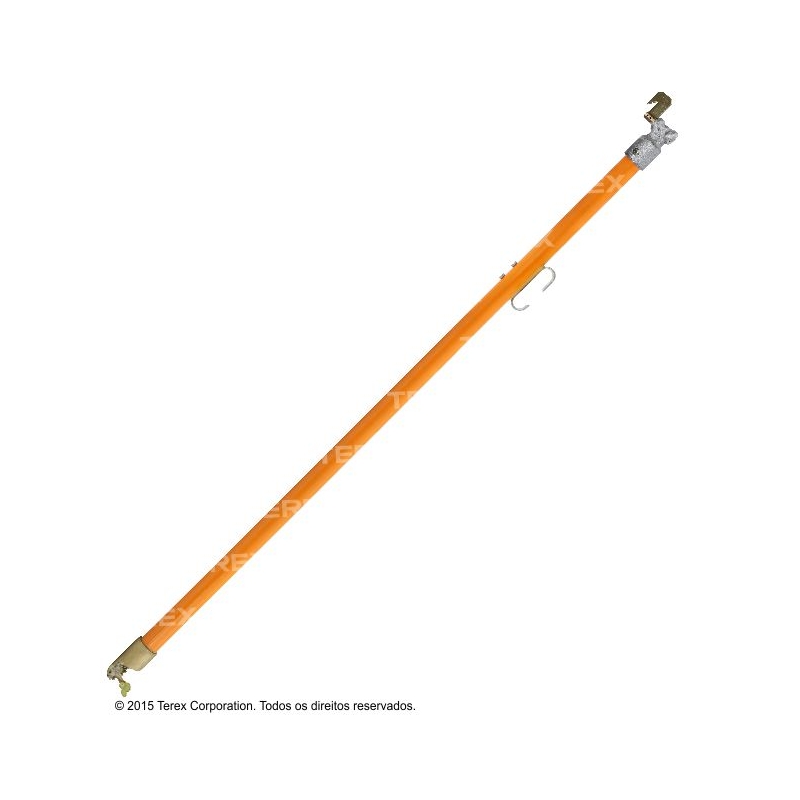

RH1855-19

With rotary prong and
universal head

1.25"

8.23

8.0

4.41

RH1855-25

With rotary prong
and rotary blade

1.25"

8.14

8.0

4.19

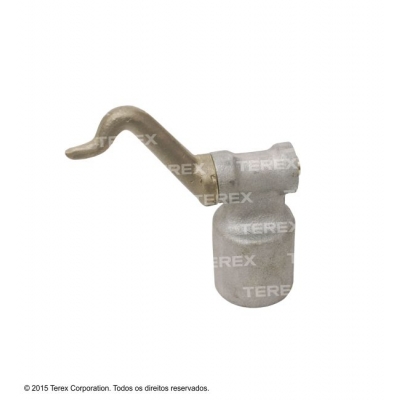

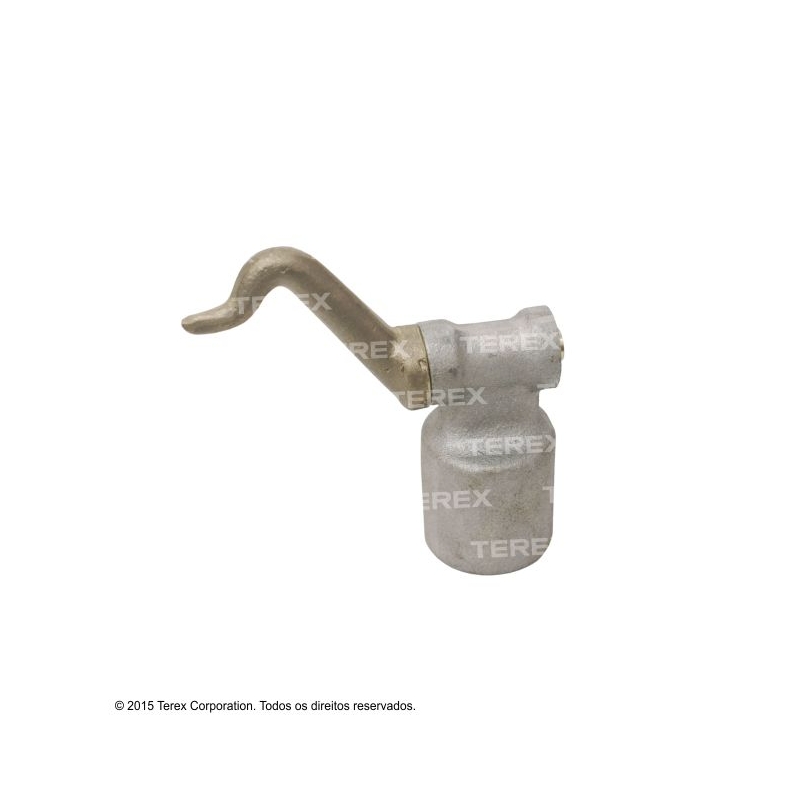

RH1855-26

With rotary blade and
universal head

1.25"

8.23

8.0

4.19
