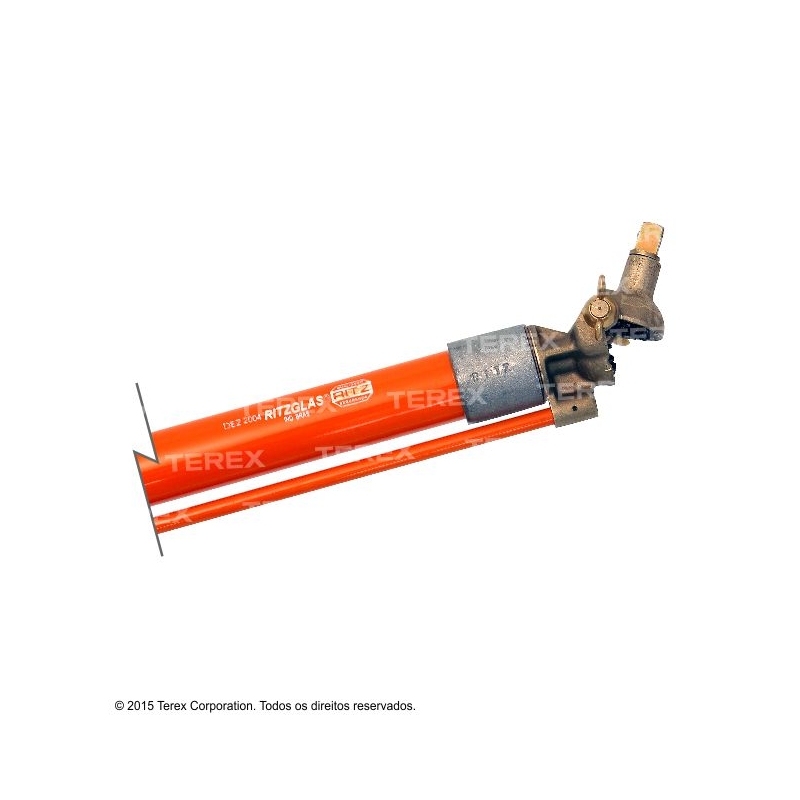

The articulated gears mechanism of the insulated wrenches allows linemen to adjust the tool socket to suitable angles, when working on high voltage systems, by the hot stick method.

The fiberglass control rod is responsible for the gear head stabilization, keeping it aligned, even when the pole rotates.

The ½” sq. drive is attached to the gear and enables attachment of sockets to operate nuts.

The angle of the wrench must be previously adjusted within a range of up to 140° in relation to the pole, through the two wing-nuts at the head.

The wrench head is made of cooper alloy and wrenches are made of a special heat treated steel. This versatile set is attached to the Ritzglas® pole, in order to guarantee necessary insulation.

WARNING

This tool has been mechanically rated only for adjustment of nuts, with max. torque of 2.0 daN.m (15 ft-lb). Tightening nuts, with proper torque, must be done with a flexible insulated wrench.

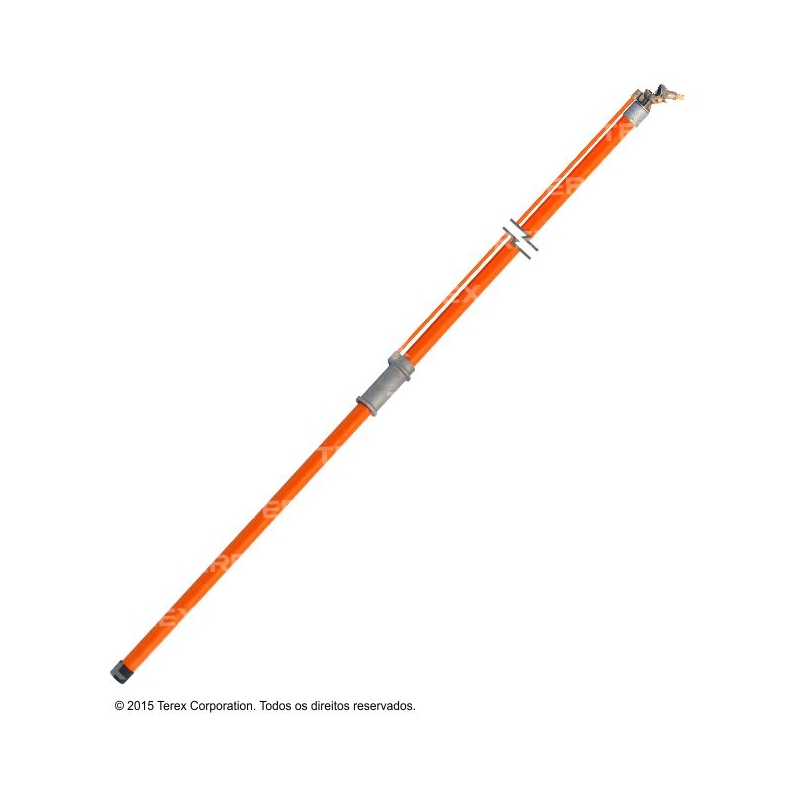

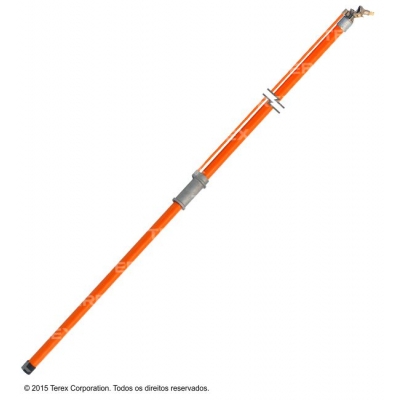

ALL-ANGLE COG WRENCH
