Wire Holding Stick

Description

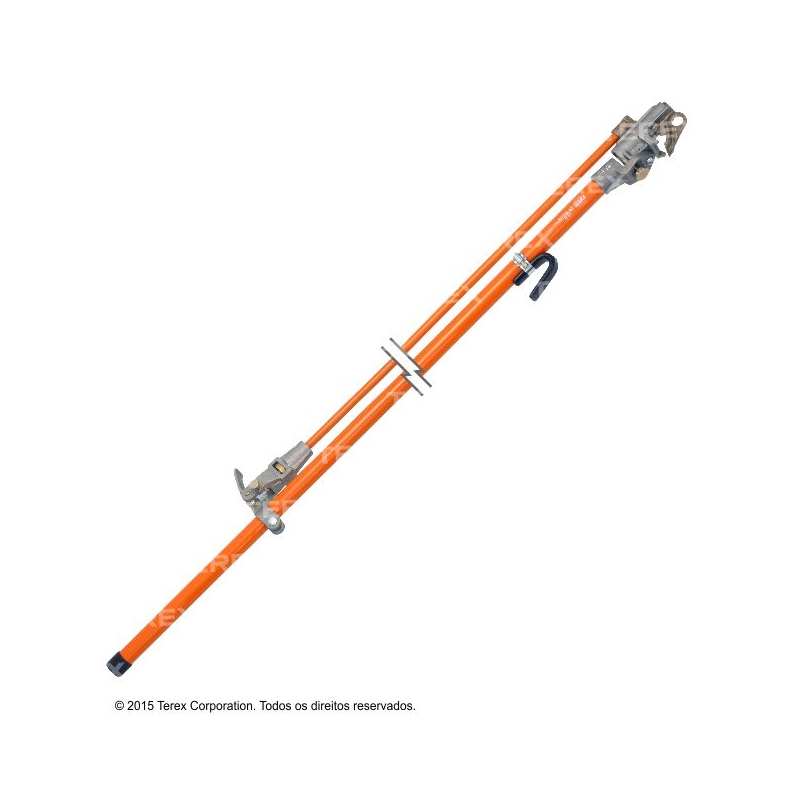

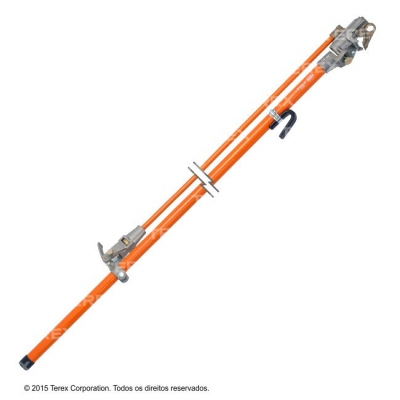

 The wire-holding stick is used on energized systems, observing the hot stick method procedures, to hold and position conductors and jumper cables, especially during splicing operations. Also, this tool is used to disconnect/ connect cables to pin insulators.

The control lever on the stick is used for gripping the conductor into the holding jaws. By using the threaded nut, it is possible to pre-adjust the wire-holding jaws opening, according to the conductor size.

The two threaded bolts have been designed to provide the control lever locking, after gripping the conductor.

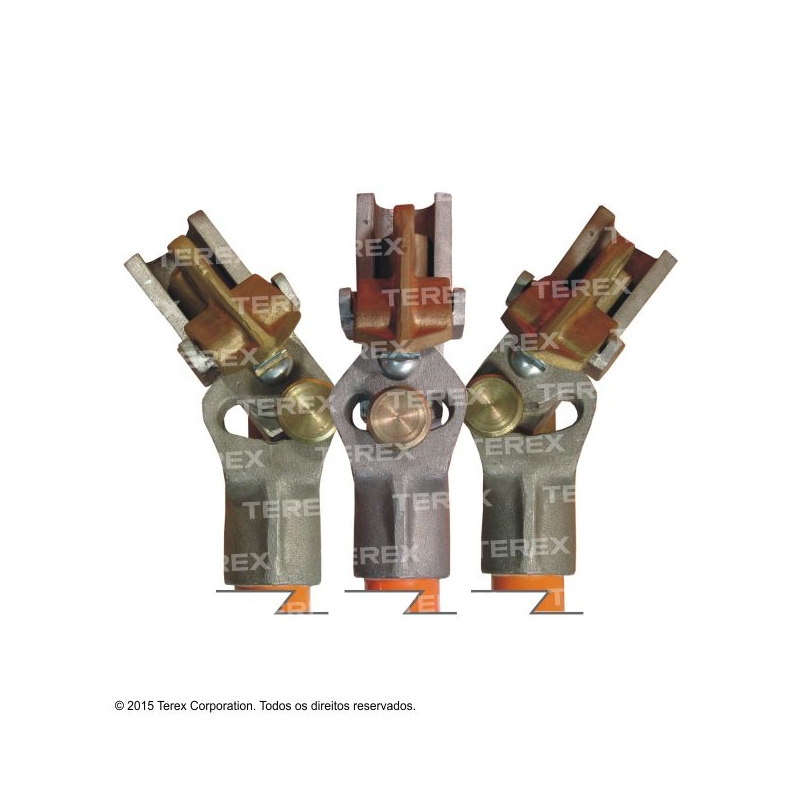

The head of the tool locks in three different positions (left, middle and right) allowing the lineman to handle the conductor from any angle. The gripper is suitable for 6 AWG (diam. 4 mm - 0.2") solid copper cables through 1590 MCM ACSR (diam. 38 mm - 1.5") aluminum cables.

WIRE HOLDING STICK

Cat. No.

Dimensions

Conductor Ø

Approx. Weight (lb)

Diam.
(in)

Total Length (ft)

Insulating Length (ft)

Minimum (in)

Maximum (in)

 RC403-3068

1.25"

6.5

4.5

0.2"

1.5"

7.28

 RC403-3069

1.25"

8.5

6.5

0.2"

1.5"

8.16
