Universal Pole - Product

Description

Ritzglas® Universal Poles are intended for use with the universal tools introduced later herein. Composed of two universal heads, which provide easy, quick and safe connection of all tools through this unique fitting, allowing linemen to have tools attached to the poles, in angles of up to 90°.

Depending on the universal tool, a universal adapter may be added (RM4455-84), to provide the necessary angle for works to be performed.

Universal poles with rubber storm skirts are intended for use under wet, i.e. emergency situations. Rubber skirts offer additional leakage distance by modifying the water path, avoiding tracking through the pole surface.

The rigid splice is used with some universal pole models, providing for easy transportation and keeping lengths suitable for the types of work to be performed.

All models are provided with Pole Hanger (RH1760-5).

Bags for conditioning and transport of all universal poles are available and should be ordered separately.

UNIVERSAL POLE

Cat. No.	Description		Dimensions		Approx. Weight (lb)
Cat. No.	Description		Diam. (in)	Insulating Length (ft)	Approx. Weight (lb)
RH1760	Universal pole with one spline, tie wire assist and rubber cap		32	1.25"	3.86
RH1760-1	Universal pole with one spline and rubber cap		32	1.25"	2.87
RH1760-2	Rigid splice pole, two sections with spline at top end and rubber cap at base end and tie wire assist		32	1.25"	4.63
RH1760-4	Universal pole with two splines and tie wire assist		32	1.25"	4.41

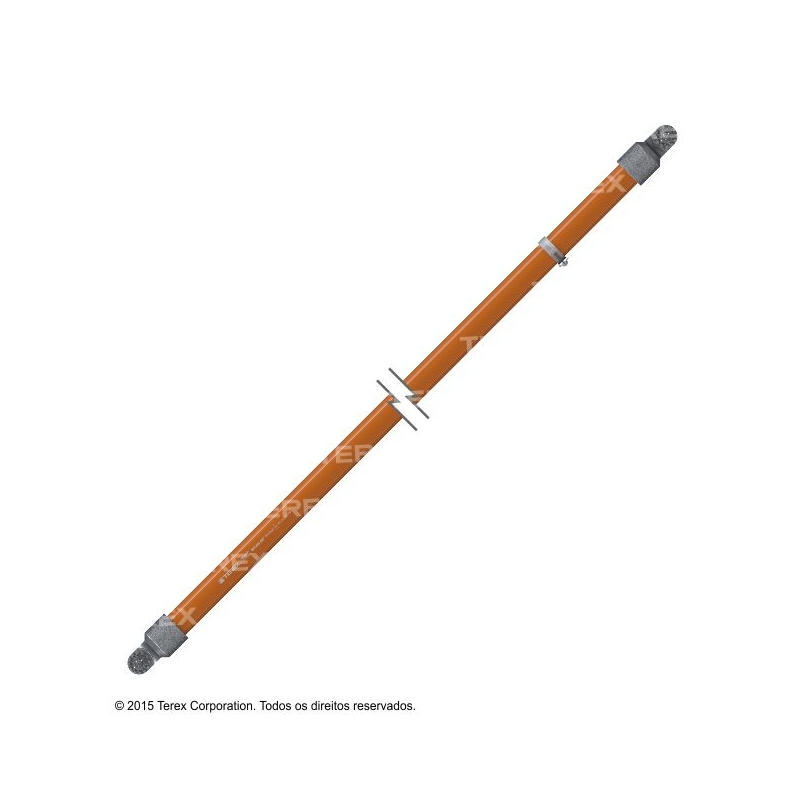

RH1760-10	Pole with two splines and pole hanger		32	1.25"	4.85
RH1760-12	Pole with two splines and pole hanger		32	1.25"	5.51
RH1760-14	Pole with two splines and pole hanger		32	1.25"	6.28
RH1790-8	Universal stick with 2 splines		38	1.25"	6.61
RH1790-10	Universal stick with 2 splines		38	1.5"	7.28
RH1790-12	Universal stick with 2 splines		38	1.5"	8.16
RH1790-14	Universal stick with 2 splines		38	1.5"	9.04
RT403-0752	Sectional Universal Pole, two sections:	3 m (10 ft) top section	32	1.25"	10.47
	Sectional Universal Pole, two sections:	3 m (10 ft) bottom section	38
	with rigid splice, universal spline at top and rubber base cap
