Lever Type Wire Cutter

Description

Used for cutting aluminum ACSR, ASC and copper wires, these cutters are assembled with Ritzglas® insulating poles.

Also available a hinged-type lever cutter, six different traditional models with lever-type system and two models with the innovative system of lever combined with adjustable ratchet.

FLV02818-1 is only used for light-duty applications and must be used exclusively for tasks performed by rubber glove method.

Lever-type models are provided with a special reinforced fiberglass rod which operates the blades.

Levers are plastic-coated and their quick action offers linemen added cutting force to cut conductors sizes according to the below table.

HINGED TYPE LEVER CUTTER

Cat. No.

Maximum
Conductor
Size

Dimensions

Approx. Weight (lb)

Diam.
(in)

Total Weight
Length (ft)

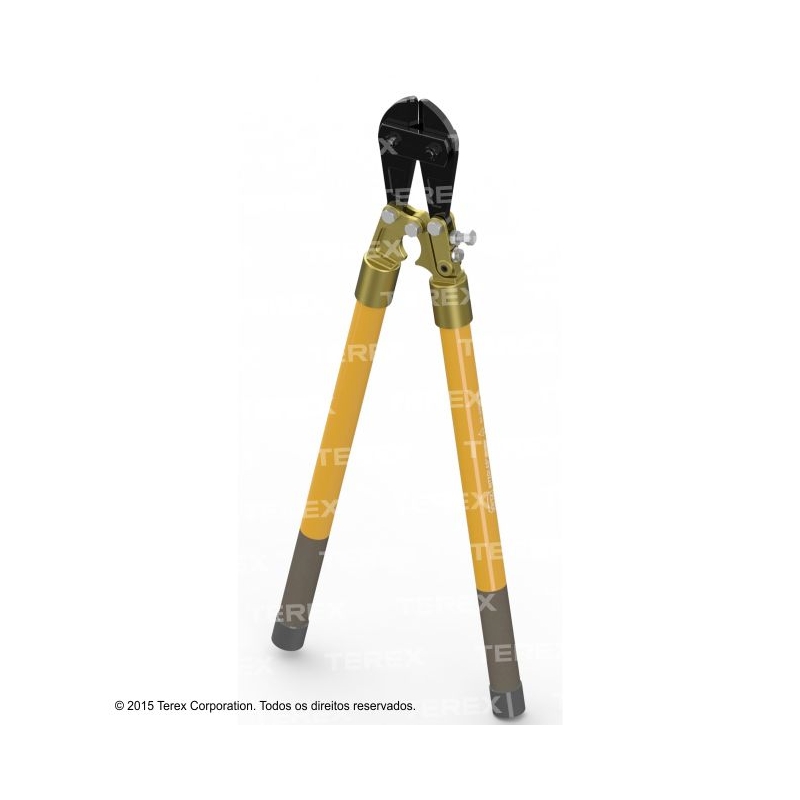

 FLV02818-1

1/0 ACSR
diam. 10.11 mm (0.5")

1.25"

2.5

5.51

LEVER TYPE WIRE CUTTER

Cat. No.

Maximum
Conductor Size

Stick Dimensions

Approx.
Weight (lb)

Diam.
(in)

Total Weight
Length (ft)

Insul.
Length (ft)

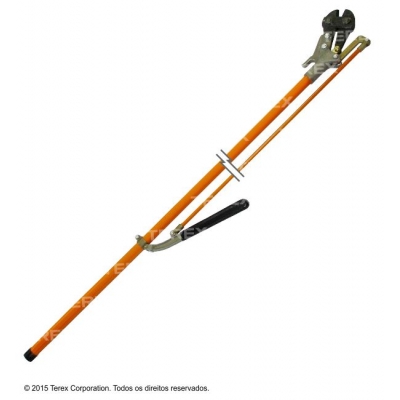

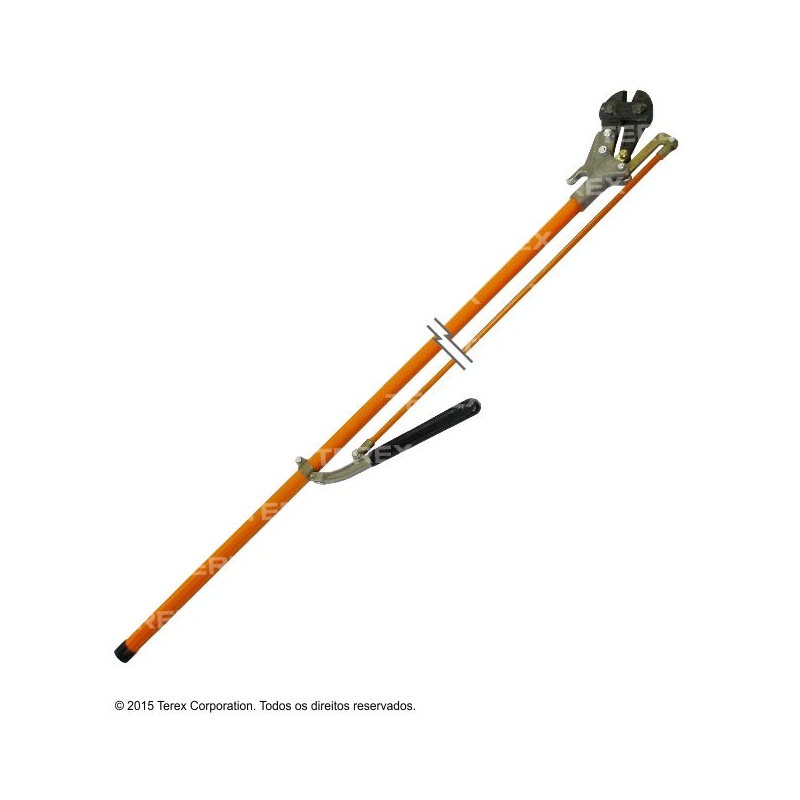

 RH1871-6

1/0 ACSR
diam. 10.11 mm (0.4")

1.25"

6.5

4.0

8.82

 RH1873-4

4/0 ACSR
diam. 14.31 mm (0.5")

1.5"

4.5

2.5

11.90

 RH1875-4

336.8 MCM ACSR
diam. 18.83 mm (0.75")

1.5"

4.5

2.5

13.67

 RH1875-6

336.8 MCM ACSR
diam. 18.83 mm (0.75")

1.5"

6.5

4.0

15.00

RATCHET CABLE CUTTER

Cat. No.

Maximum Conductor
Size

Stick Dimensions

Approx. Weight (lb)

Diam.
(in)

Total Weight
Length (ft)

Insul.
Length (ft)

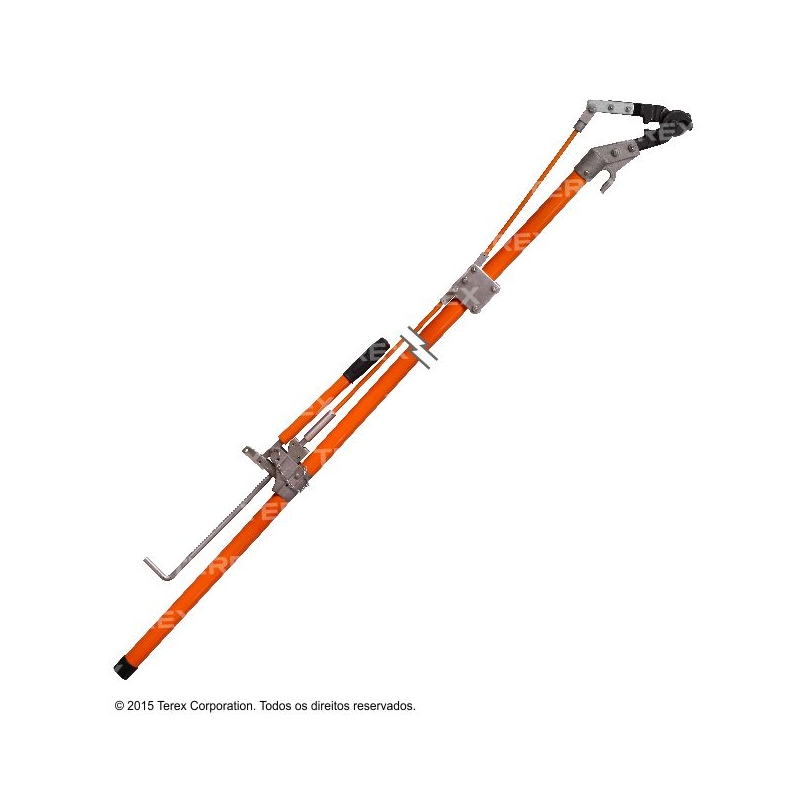

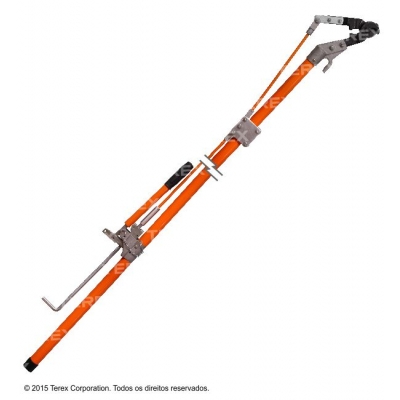

 RC403-1382

556 MCM ACSR
diam. 23.5 mm (0.08 ft)

1.5"

6.5

2.5

11.46

 RC403-1384

556 MCM ACSR
diam. 23.5 mm (0.08 ft)

1.5"

8.5

4.5

12.13

 These cutters construction with a plastic rotating system, allows the action mechanism to run smoothly over the Ritzglas® pole and a soft hinging movement of the fiberglass rod.
