Tree Trimmers

Description

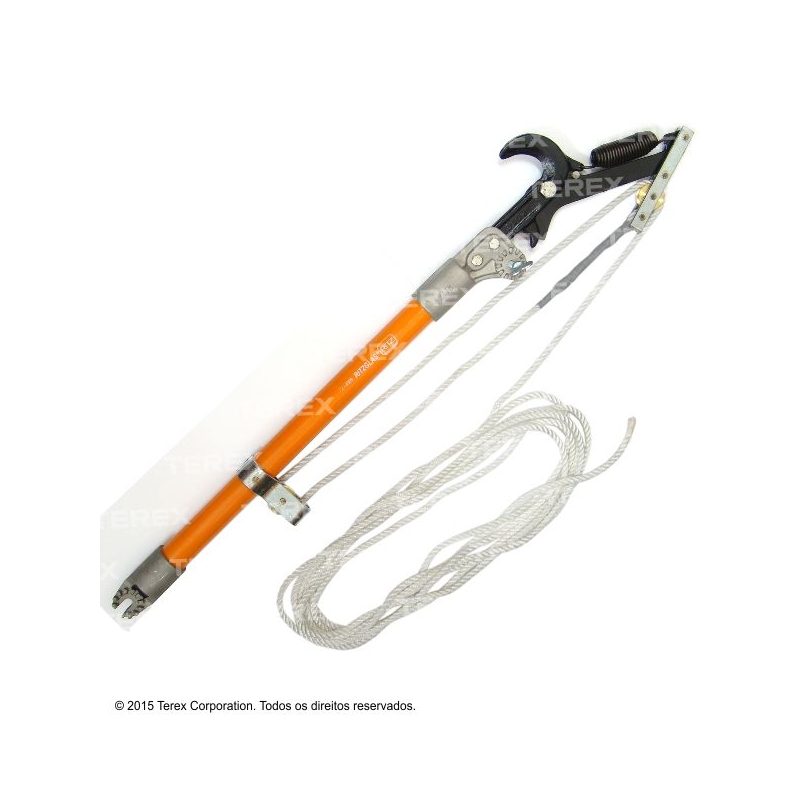

Tree Trimmers are designed to cut tree branches, especially those near the electrical systems in hard-to-reach places.

The sharpened blades are stationary and movable, made of forged steel. The rope and pulley arrangement gives the operator a mechanical advantage of 3 to 1 ratio, e.g.: a 4.5 daN (10 lb) pull on the rope will exert a 13.5 daN (30 lb) force on the cutter head lever.

Ball bearing pulleys are used for easy operation.

Tree trimmers are provided with 7.60 m (25 ft)of rope (Diam. 1/4”).

RH2106-4 allows connection to complementary sticks by universal heads.

A universal pruning saw can be added to the universal fitting at the side on the headmount.

TREE TRIMMERS

Cat. No.

Stick with

Dimensions

Approx.
Weight (lb)

Diam.
(in)

Work
Length (ft)

 RH2106-4

Ritzglas® tree trimmer, with
universal fitting

1.25"

2.0

3.75

ACCESSORIES



Cat. No.

Description

Approx. Weight (lb)




 RM4455-26A

Universal Pruning Saw

0.80



 VMR-I

Middle section (Sectional Hot Stick type)

2.65



 VMR-P

Handle section (Sectional Hot Stick type)

3.20
