Tower Type Saddle

Description

Tower type saddles are used to support wire tongs, masts, rope blocks or hoists for insulator string displacement on towers.

These saddles are firmly fastened to the brackets of the metallic structure, by four wingnut tightened hooks.

Common Saddles

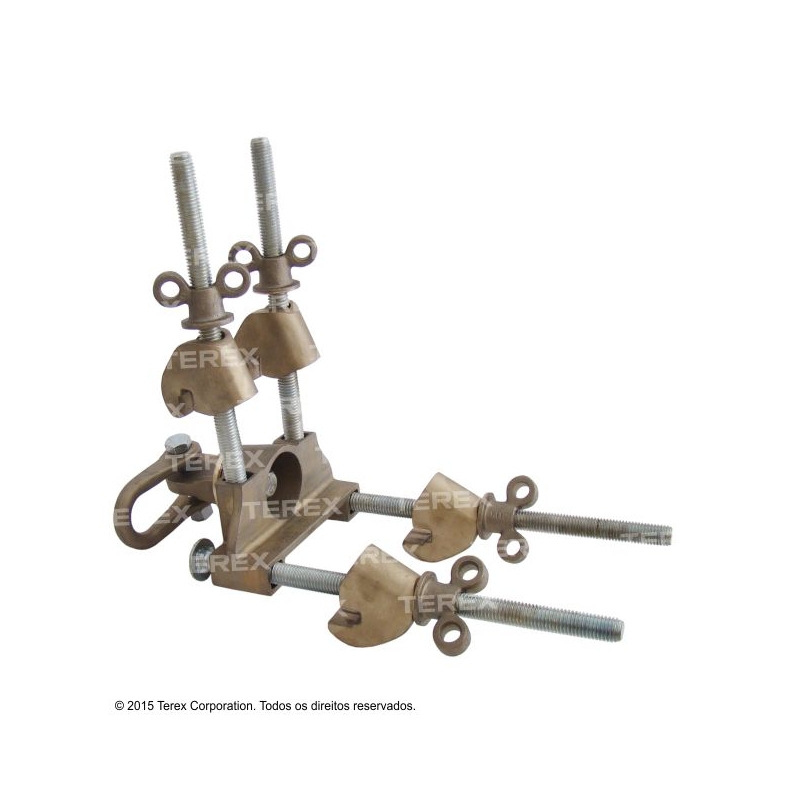

The RM4742 saddle possesses a bronze clevis attached to its body allowing rope blocks to be fastened, through a pivot connecter.

The (RM4742-1 a RM4742-4), models possess pole clamps of various diameters for a firm and proper attachment to the poles, at any angle

The RT400-1413, is similar to the RM4742 model, differing only on the length of the hooks, designed for lager angle-iron tower legs in larger towers.

Light saddles

Light saddles have the same characteristics as the common ones. Yet are manufactured in aluminum alloy, which makes them practical and easy to instal.

Common saddles may be integrally replaced by light saddles.

TOWER TYPE SADDLES

Cat. No.

Description

connection capacity

Work Load (lb)

Approx. Weight (lb)

 RM4742

Saddle without pole clamp

3" x 3" a 7" x 7"

1000

12.13

 RM4742-1

Saddle with 38 mm (1.5") pole clamp

3" x 3" a 7" x 7"

1000

13.78

 RM4742-2

Saddle with 51 mm (2") pole clamp

3" x 3" a 7" x 7"

1000

13.89

 RM4742-3

Saddle with 64 mm (2.5") pole clamp

3" x 3" a 7" x 7"

1000

14.33

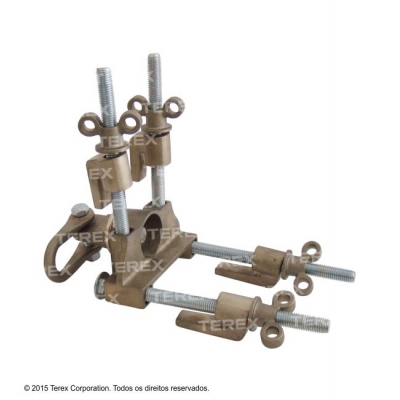

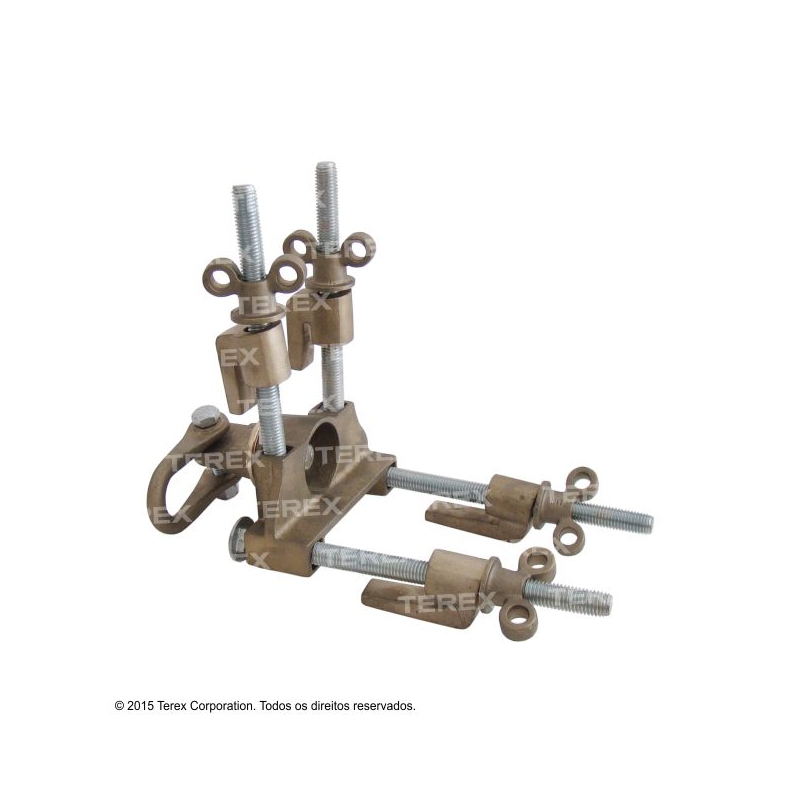

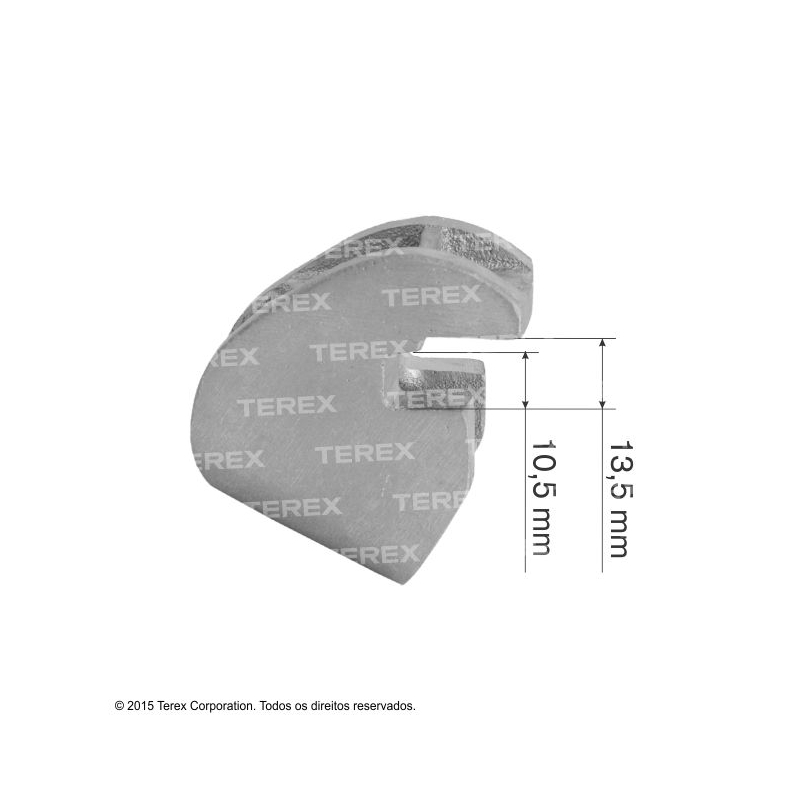

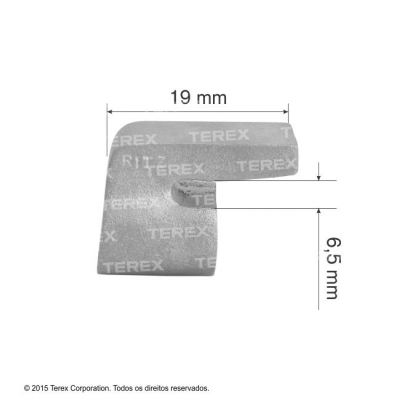

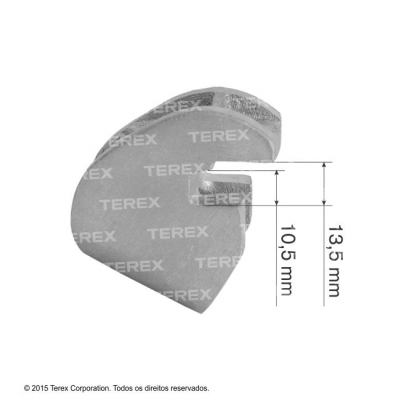

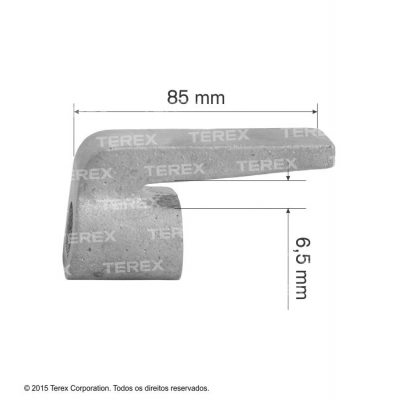

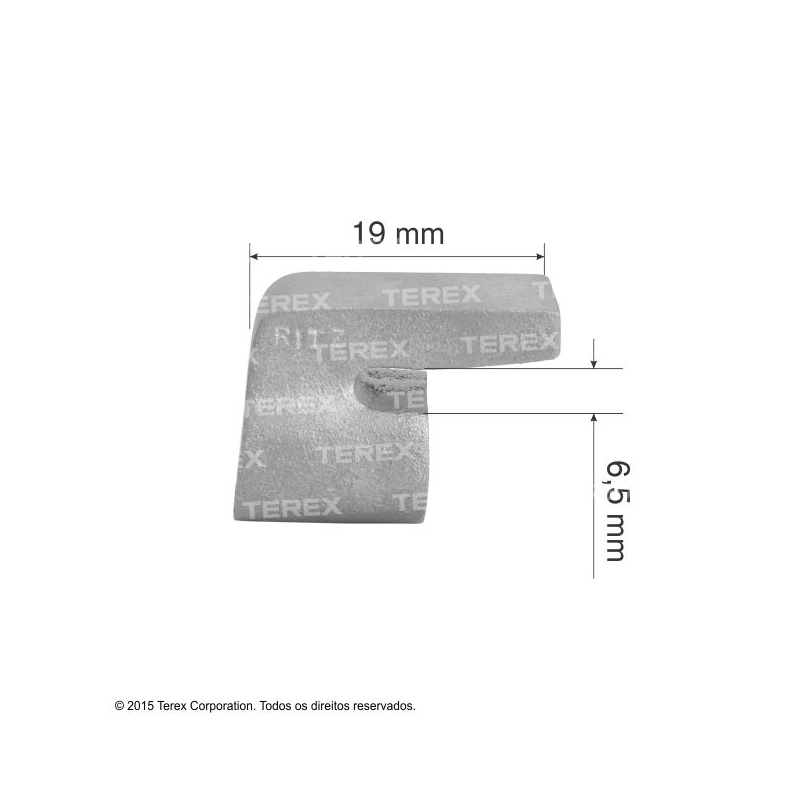

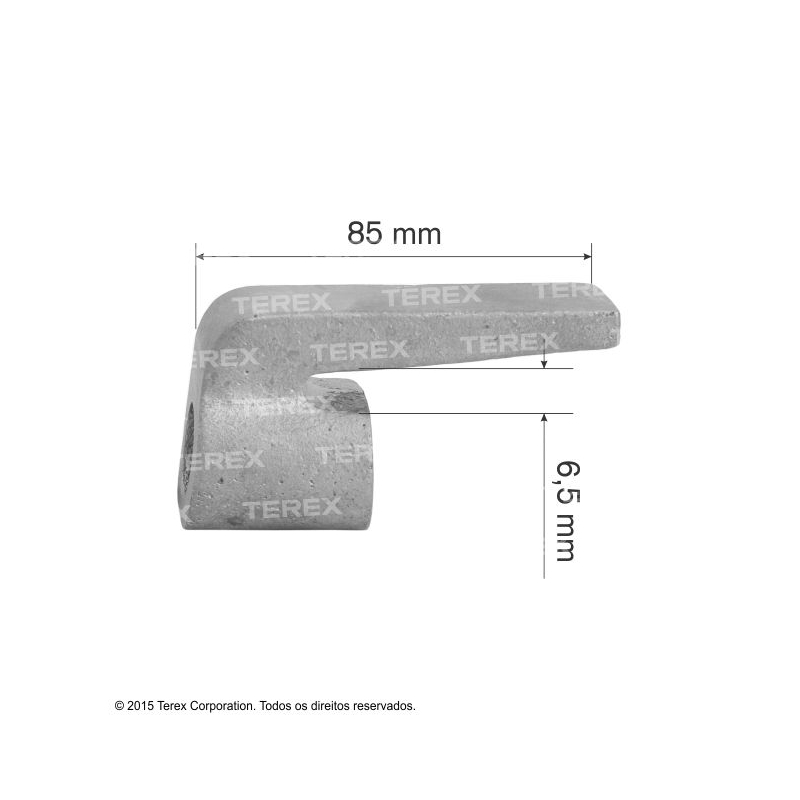

 RT400-1413

Saddle without pole clamp, with small clamps and two big ones.

3" x 3" a 7" x 7"

1000

12.79
