The Dual Auxiliary Arm is designed for use where a change of poles, crossarms or insulators is necessary.
The Dual Auxiliary Arm is lightweight and easily assembled. On regular construction, or alley arm construction, this tool can be used as a side arm.
NOTE
When the Dual Auxiliary Arm is used on voltages above 15 kV and the arm is to support energized conductors during unstable weather conditions, it is recommended that insulators (RM4805-7) be added to the wire holders for increased creepage distance, in case of sudden rainfall.
It is also recommended that when the arm is to be left up overnight or during a period of possible rain, the arm should be wiped with a Silicone- Soaked Hot Stick Wiping Cloth (RM1904).
DUAL AUXILLIARY ARM
|
Cat. No.
|
Description
|
Insulating
Length (ft)
|
Approx. Weight (lb)
|
|

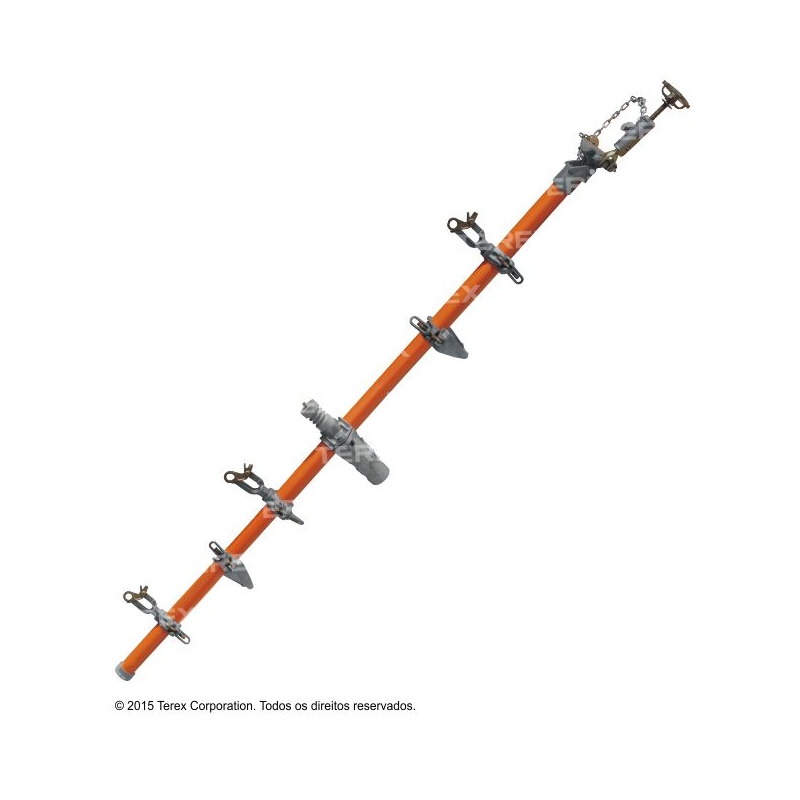

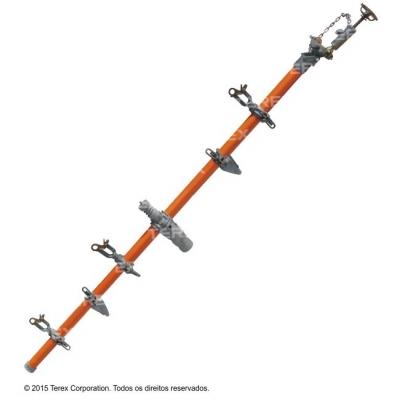

RC400-0075
|
Dual Auxiliary Arm, with Wheel
Binder & 1" Fork Wireholder
|
9.70
|
|
The Dual Auxiliary Arm is composed of the following tools:
- 01 pc diam. 64 mm Ritzglas® pole and pole type saddle, with chain binder;
- 03 pcs RM4805-17 - Fork-type wireholder of 25.4 mm (1") opening, without insulator
- 02 pcs RC400-0331 Wire tong stirrup;
- 01 pc RC400-0562 Dual Auxiliary Arm "T" with insulator.
Accessory Tools required for these types of applications
SIDE ARM
- 01 Wire tong RH4647-12 (A)
- 02 Wire tongs RH4646-8 (B)
- 01 Pole type saddles with extension and 64 mm (2.5") RM4740-18W (C)
- 01 Pole type saddle with clevis RM4740-15W (E)
- 01 Saddle, clamp and extension for 51 mm (2") pole RM4740-17W (F)
- 01 Double block RC400-0914 (G)
- 01 Wire tong band RM1729-1 (H)
LIFTING ARM
- 01 Wire tong RH4647-12 (A)
- 02 Wire tongs RH4646-8 (B)
- 02 Pole type saddles with extension and 64 mm (2.5") RM4740-18W (C)
- 01 64 mm (2.5") Wire tong pole clevis RM1728-5 (D)
PART AND COMPONENTS
|
Cat. No.
|
Description
|
Approx. Weight (lb)
|
|
RE400-0008
|
38 mm (1-1/2") Fork-type wireholder without insulator
|
2.87
|
|

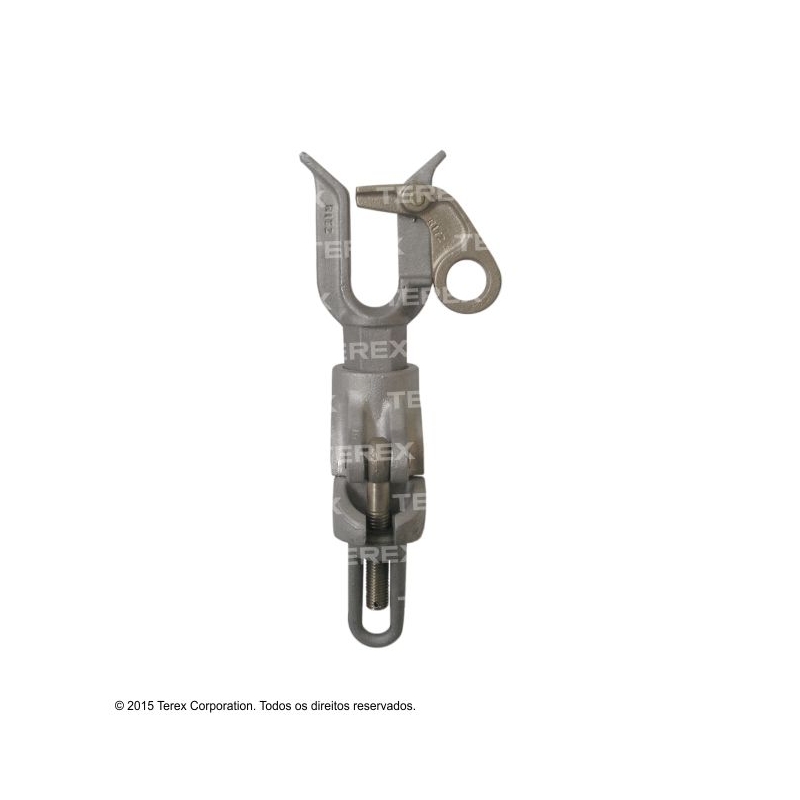

RM4805-17
|
25 mm (1") Fork-type wireholder without insulator
|
1.98
|
|
RE400-0009
|
38 mm (1-1/2") Fork-type wireholder with insulator
|
3.86
|
|
RM4805-15
|
25 mm (1") Fork-type wireholder with insulator
|
2.98
|
|
RC400-0331
|
Diam. 64 mm (2.5") Wire tong stirrup
|
2.09
|
|
RM1728-5
|
64 mm (2.5") Wire tong pole clevis
|
3.31
|
|

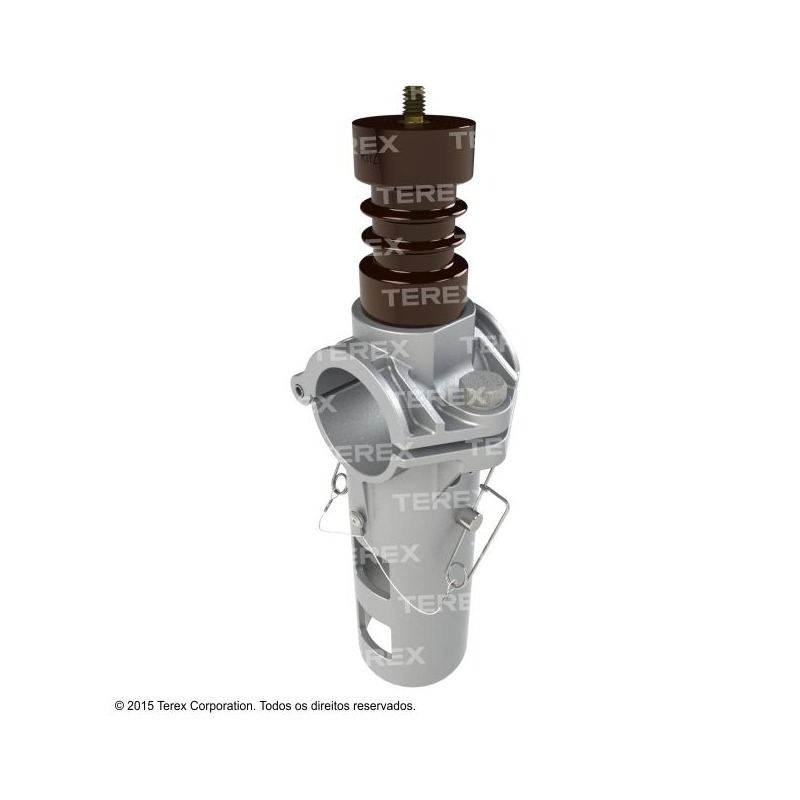

RC400-0562
|
Dual Auxiliary Arm "T" with insulator
|
5.29
|
|

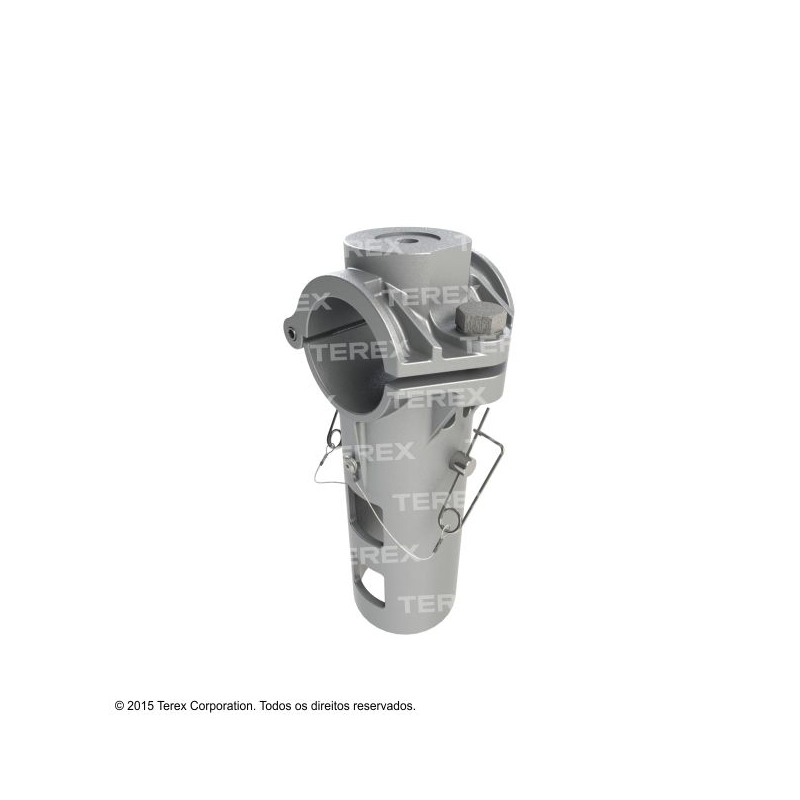

FLV00714-2
|
Dual Auxiliary Arm "T" without insulator
|
4.30
|
TOOLS APPLICATION

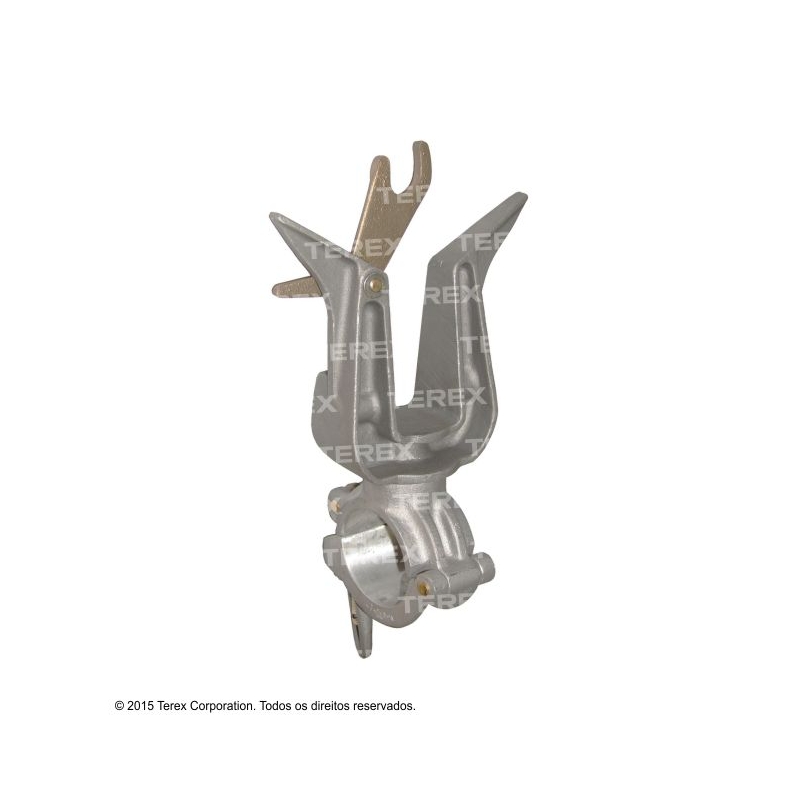

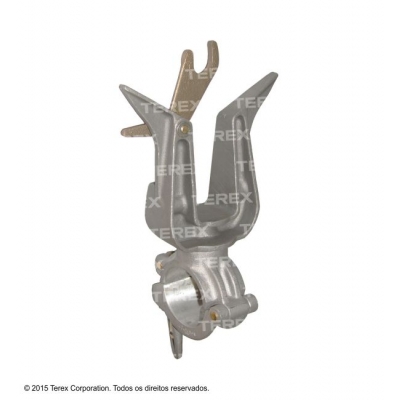

- RE400-0008 (1-1/2” without insulator) - RM4805-15 (1” with insulator)
- RE400-0009 (1-1/2” with insulator) - RM4805-17 (1” without insulator)
The wireholders feature a 25 mm and 38 mm (1” or 1-1/2”) opening. They have a counterbalanced latch which closes automatically behind the conductor to hold it as the conductor is lowered into the wireholder. The latch must be swivelled with an insulated hand tool to release the conductor.
The wireholders are available with or without insulator and are provided with a 64 mm (0.21 ft) pole clamp for attachment to the crossarm of the dual auxiliary arm..

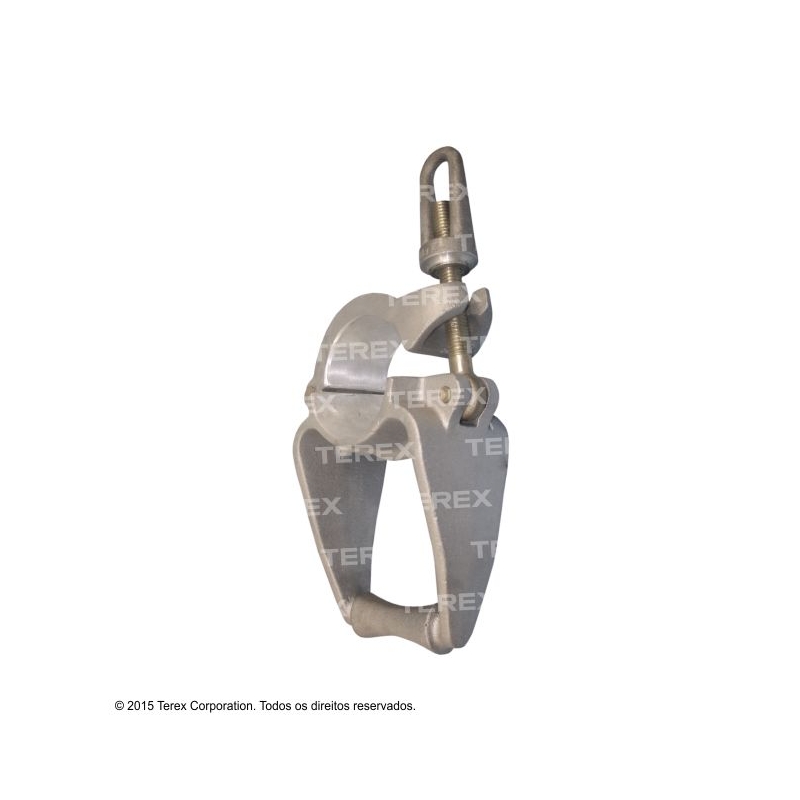

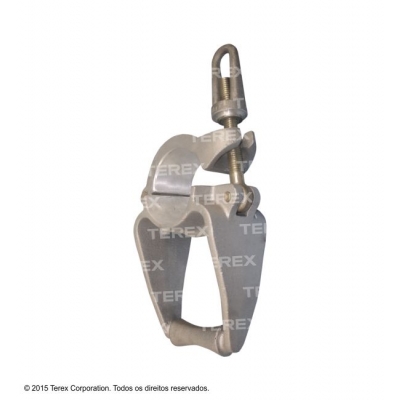

- RC400-0331 (Ø 64 mm - 2.5")
The wire tong stirrup can be ordered separately either as a replacement part or to be used with the existing equipment. It is intended for connection of the wire-tong braces of the dual auxiliary arm, using its pole band. Manufactured in light-weight aluminum alloy, easy to handle.

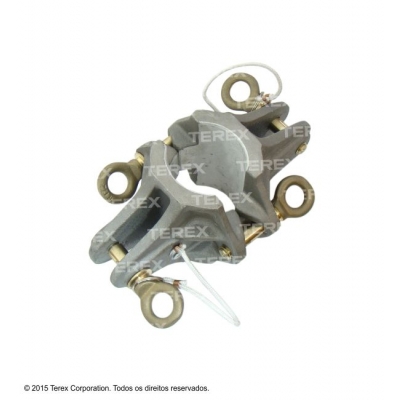

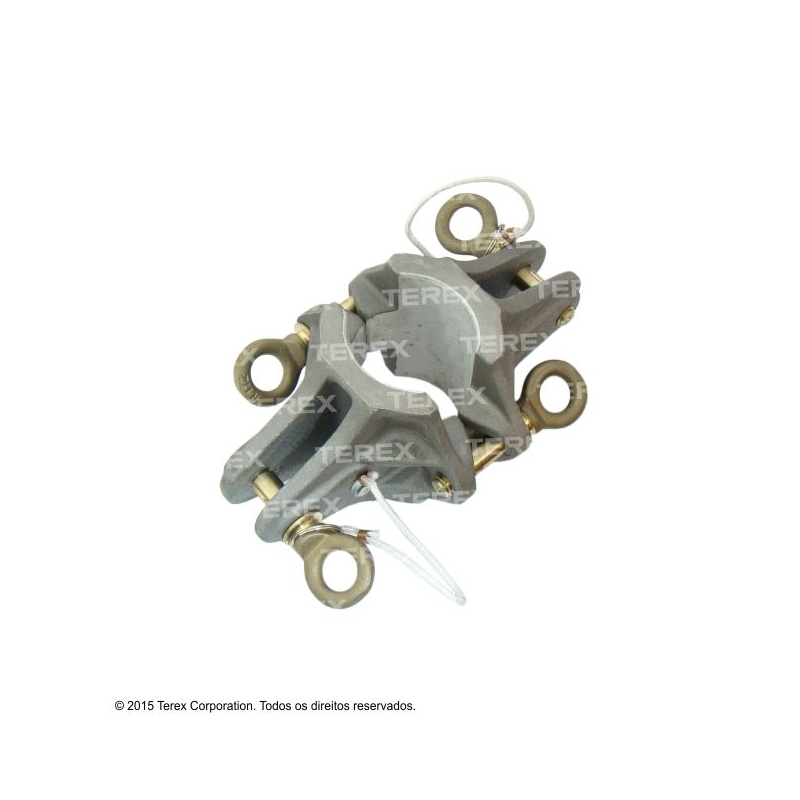

- RM1728-5
The wire tong pole clevis clamps around the vertical wire-tong supporting an auxiliary crossarm and engages butt rings of the two wire tongs used as side braces.
Manufactured in aluminum alloy, the two parts are assembled together with two eye-bolts, as one single piece.
Nominal working capacity: 1000 kgf (1000 daN)

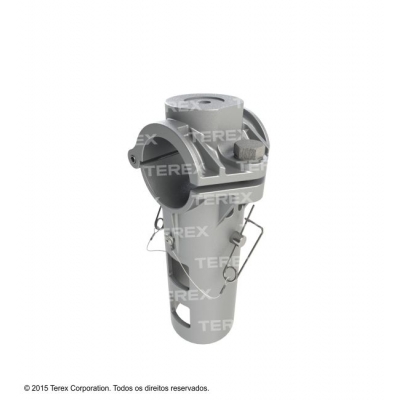

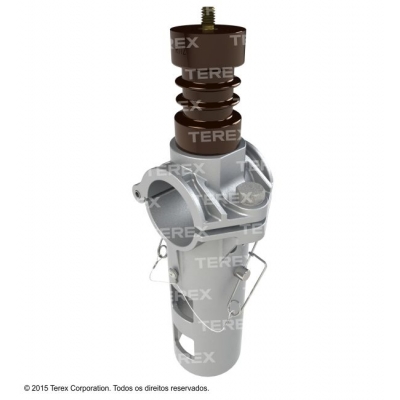

- RC400-0562 - FLV00714-2
The dual Auxiliary Arm "T" is to be used specifically with the lifting arm application type.
