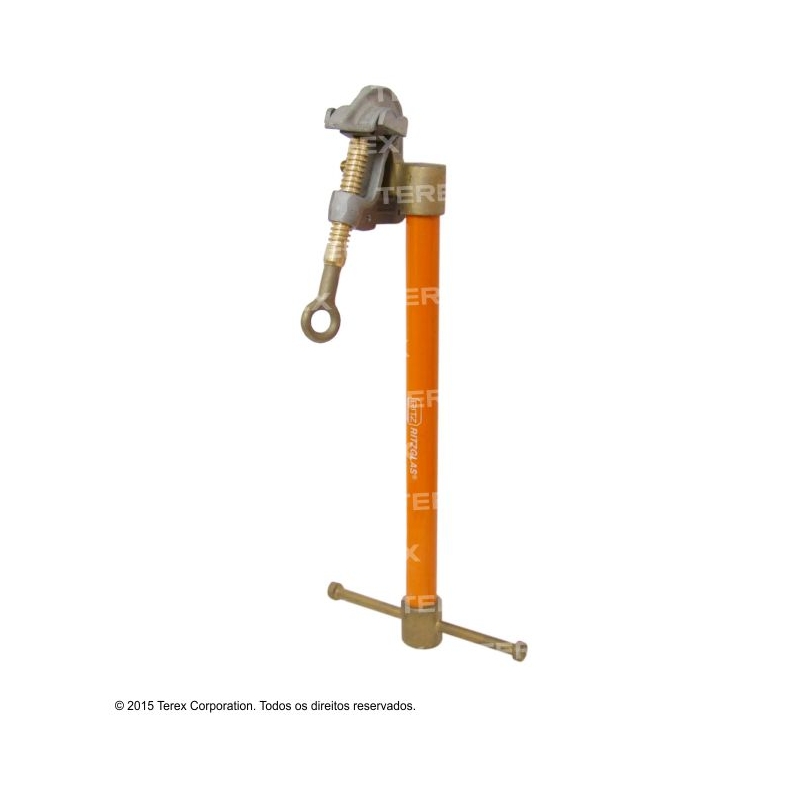

Insulating Hanger

Description

The insulating hanger is crucial for installation of the temporary jumper on hot lines, so that linemen do not have to hold on to the energized jumper cable, while switching to a different position. It serves as a parking stand for one end of the jumper, without energizing it, so the other end can be handled and installed with total safety.

The Insulating Hanger is provided with two diameter 12 x 64 mm (0.5" x 0.20 ft) cooper alloy double stud fitting. Diameter 25 x 320 mm (1" x 1 ft) Ritzglas® pole provides the insulation.

Clamp with eye-screw for operation with a hot stick provides installation onto cable.

INSULATING HANGER

Cat. No.

Description

Approx. Weight (lb)

 RS1600-7

Insulating Hanger for temporary jumper up to 34.5 kV

2.20
