Accessories for Ladder Support

Description

The ladder supporting accessories provide quick, easy and safe installation of Hot Line Ladders on almost every type of structure.

These sets have been designed to be attached to metallic, wooden or concrete structures, vertically and horizontally, with diam. 64 mm (2.5") (or larger) siderail ladders.

The components need to be ordered separately or as replace pieces.





The diagram below shows a typical installation and the work loads with the different attachment points.



“X”=Distance between
the attachment points (ft)

Total maximum
working load (lb)

Overall length
of the ladder (ft)

8.00

500

16.00

12.00

400

24.00

16.00

290

32.00

NOTE

For assemblies requiring ladders longer than 5 m (16 ft), an additional supporting equipment must be installed..



COMPONENTS TO SUPPORT THE LADDERS

Cat. No.

Description

Approx. Weight (lb)

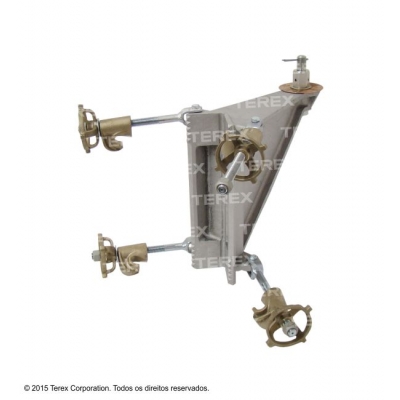

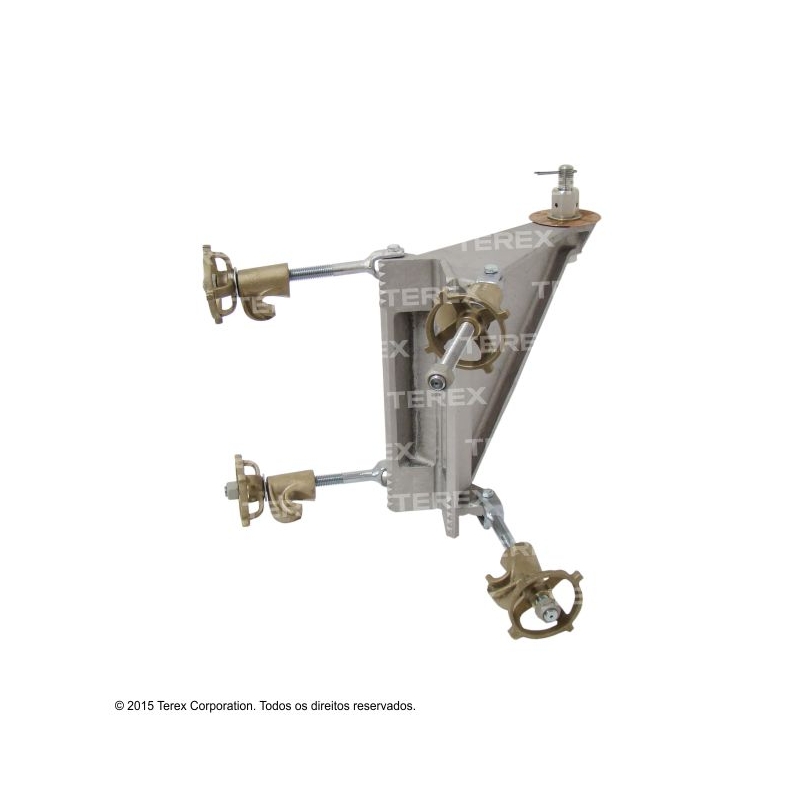

 RE402-0525

Saddle for vertical attachment on metallic structure

24.80

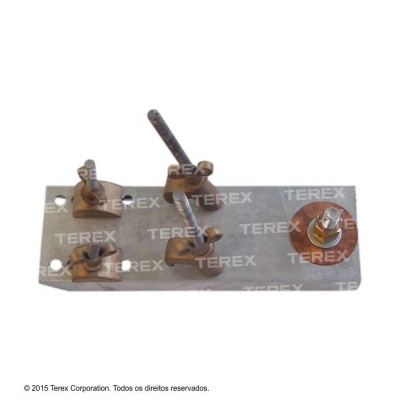

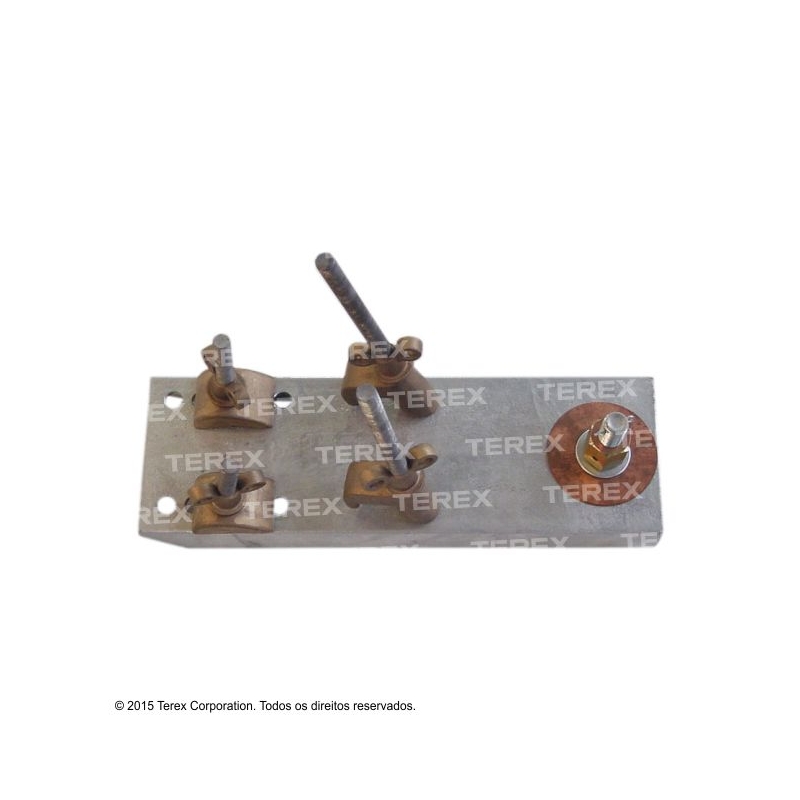

 RE402-0087

Saddle for horizontal attachment on metallic structure

25.35

 RE402-0526

Base of the vertical pole attachment saddle

26.21

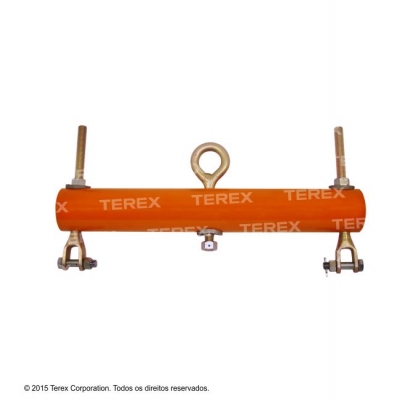

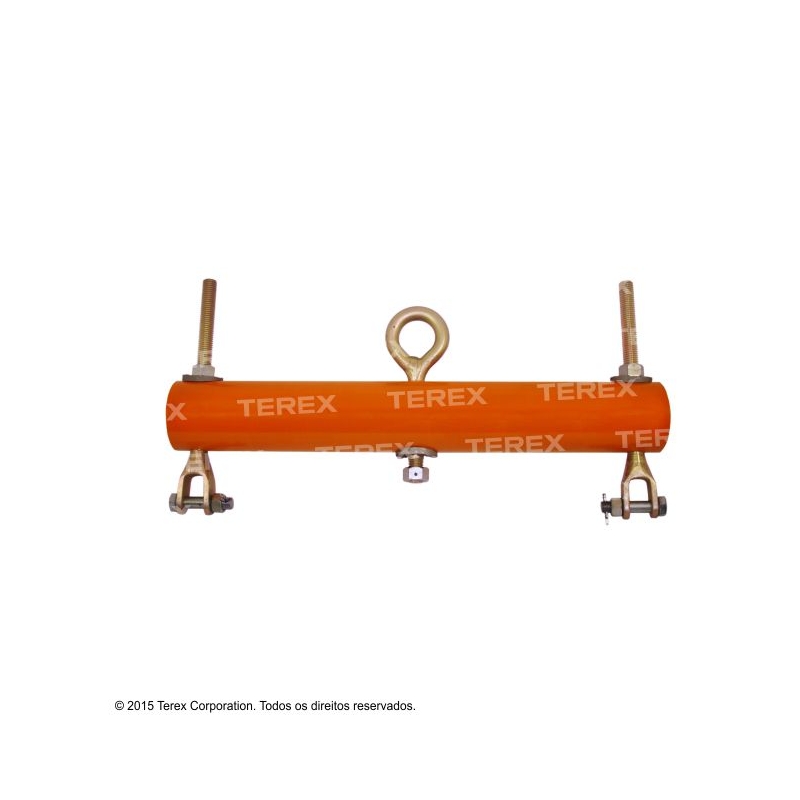

 RE402-0099

Spreader Bar

8.38

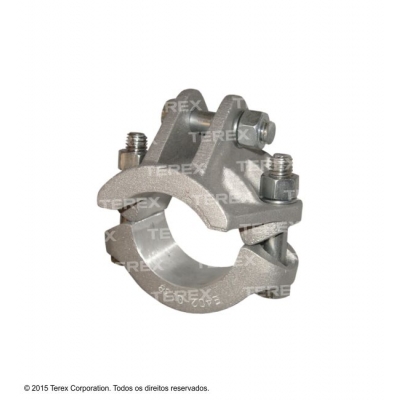

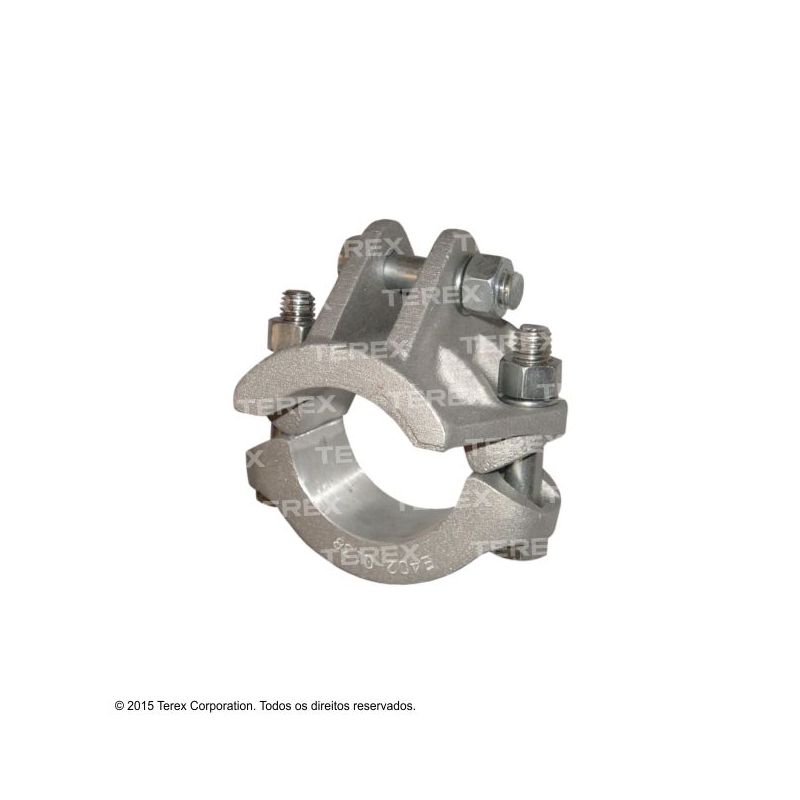

 RE402-0138

64 mm (2.5") ladder clamp

1.74

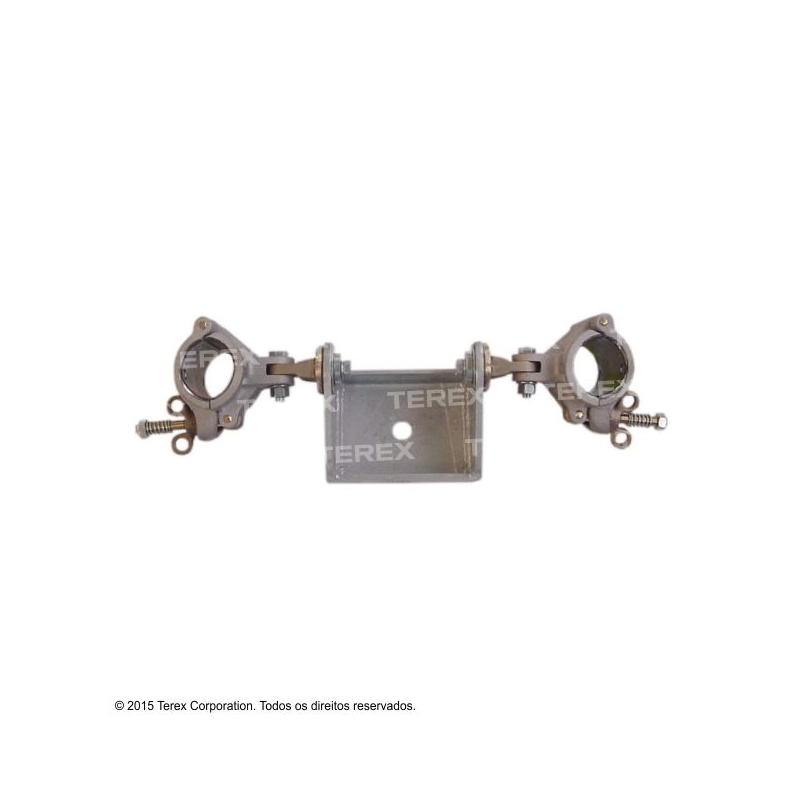

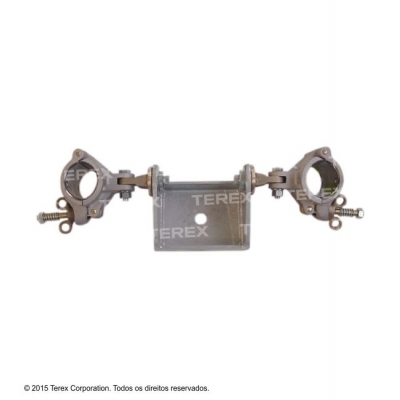

 RE402-0568

Support ladder with 64 mm (2.5") pole clamp

14.55

 RE402-0569

Support ladder with 51 mm (2") pole clamp

14.33

DOUBLE CLAMP

Cat. No.

Diam. (in)

Approx. Weight (lb)

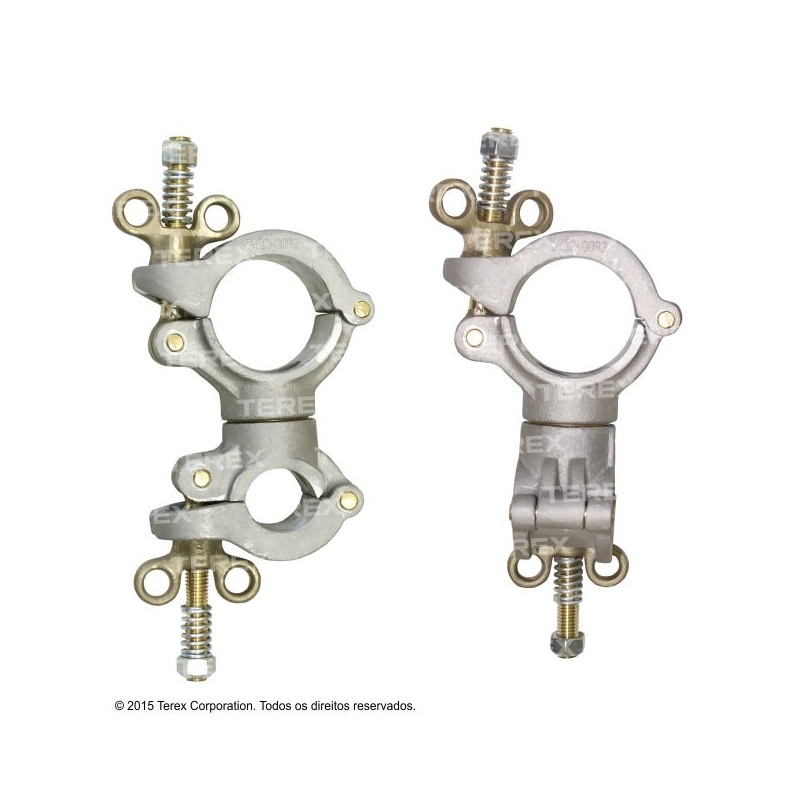

 RE402-0092

2.5" / 1.5"

2.87

 FLV03550-2

2.5" / 1.25"

2.65

 FLV03550-6

2.5" / 3"

3.31

 FLV03550-7

1.5" / 2.0"

2.98

Diam. 32 MM (1.25”) SWIVEL STICK

Cat. No.

Insulating Length (ft)

Rated Work Load (lb)

Approx. Weight (lb)

 RE402-0141

11.52

3500

8.60

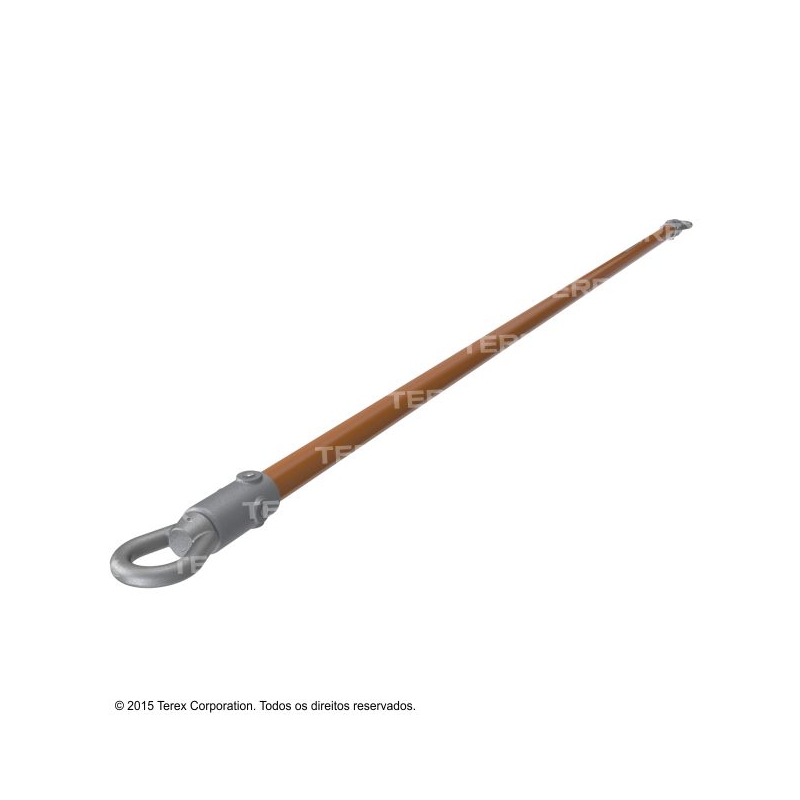

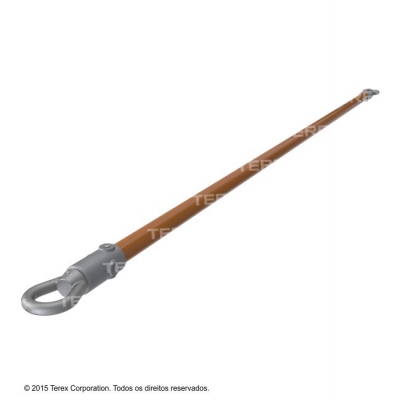

 RT402-0899

5.61

3500

4.19

 RT402-0900

7.58

3500

5.51

 RT402-0901

9.55

3500

7.05
