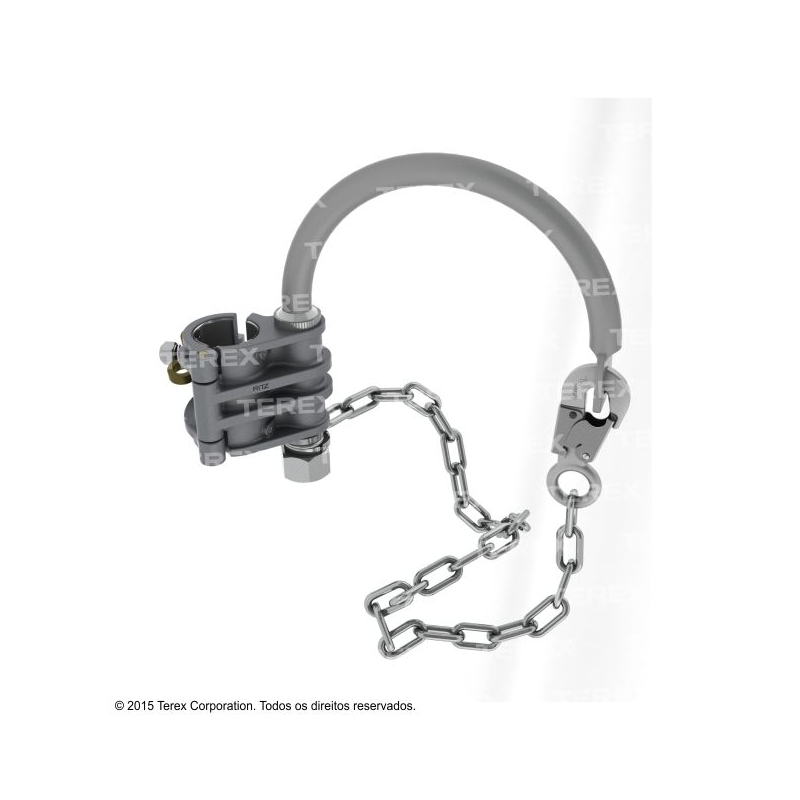

Adjustable Ladder Hook

Description

Adjustable ladder hooks can be easily adapted to the side rails of the Hot Line Ladders and Platform Ladder platform.

This accessory converts a diam. 51 or 64 mm (2" or 2.5") side rail ladder into a hook ladder, or enables the attachment of the ladder to inclined structures.

Hooks are swiveling and installed using clamps, allowing installation at the most convenient position on the structure.

Hooks are made of diam. 25.4 mm (1”) galvanized steel and installed on aluminum clamps. Complementary steel chains are provided with a safety locking system.

COMPOSITION OF THE LADDER ADJUSTABLE HOOK

- 01 Steel Hook;

- 01 Steel chain with safety locking system;

- 01 Aluminum alloy clamp.

LADDER ADJUSTABLE HOOK

Cat. No.

Diam. (in)
Side Rails

Maximum Load Capacity
(each pair) (lb)

Approx.
Weight (lb)

8” Hook
(203 mm)

14” Hook
(356 mm)

18” Hook
(457 mm)

RH4904-1

-

-

2"

1250

10.36

-

RH4924-1

-

2"

1000

12.35

RH4905-1

-

-

2.5"

1250

10.58

-

RH4925-1

-

2.5"

1000

12.57

-

-

RH4945-1

2.5"

750

14.55
