Pole Cover

Description

Used for insulating protection when installing or replacing poles.

Provided with polypropylene rope grips for easy installation and removal, internal ribs, which help to avoid abrasion on its surface during handling and highly contribute to an extended working life.

The 1.20 m and 1.80 m (3.94 and 5.91 ft) models are provided with one nylon button, which enables connecting two or more units to protect a longer section of the pole.

COVER-UP FOR POLES UP TO dia. 150 mm (5.9”)

Cat. No.

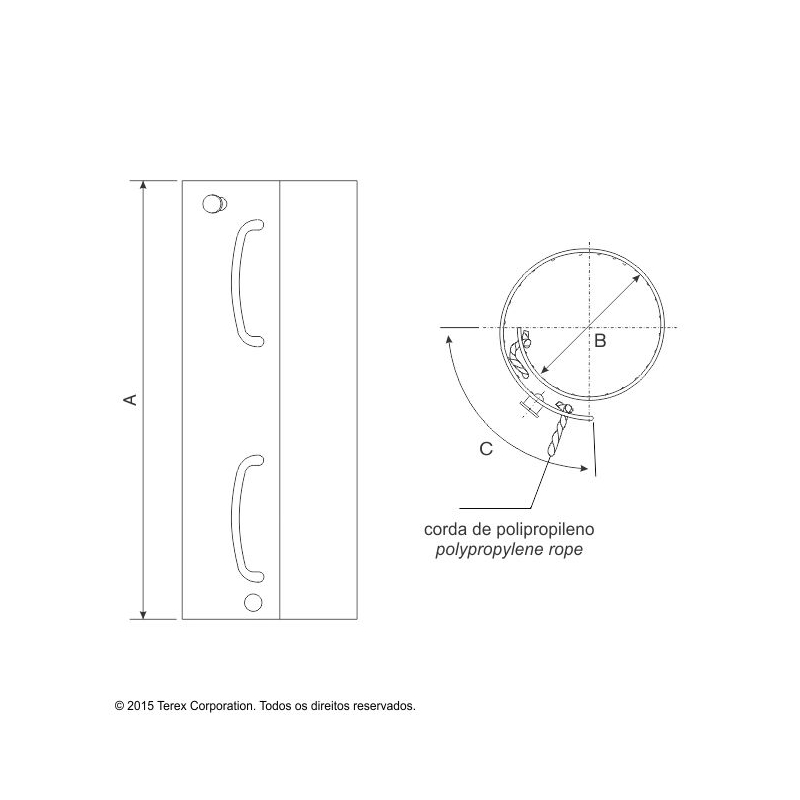

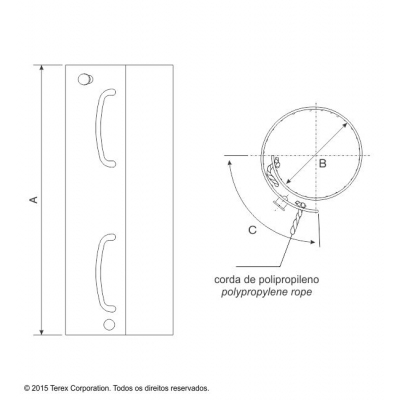

Dimensions (ft)

Approx. Weight (lb)

(A)

(B)

(C)

 RC406-0548

1.0

0.5

~0.4

1.54

 RC406-0549

2.0

0.5

~0.4

2.65

nominal voltage: 36.6 kV (phase-to-phase)

COVER-UP FOR POLES UP TO dia. 300 mm (11.8”)

Cat. No.

Dimensions (ft)

Approx. Weight (lb)

(A)

(B)

(C)

 RC406-0028

1.0

1.0

~0.4

2.54

 RC406-0029

2.0

1.0

~0.4

5.18

 RC406-0030

3.9

1.0

~0.4

10.69

 RC406-0000

5.9

1.0

~0.4

15.87

nominal voltage: 36.6 kV (phase-to-phase)

COVER-UP FOR POLES UP TO dia. 230 mm (9”)

Cat. No.

Dimensions (ft)

Approx. Weight (lb)

(A)

(B)

(C)

 RM4937-1

1.0

0.7

~0.6

2.20

 RM4937-2

2.0

0.7

~0.6

4.30

 RM4937-4

3.9

0.7

~0.6

8.71

 RM4937-6

5.9

0.7

~0.6

13.12

nominal voltage: 36.6 kV (phase-to-phase)
