Round Cover

Description

Due to its versatility, these covers are used for protection of pole ends, braces, crossarms, lightning arresters, etc.

Since there is no specific application for these covers, special attention must be given in every situation, in order to verify the real protection offered.

Provided with polypropylene rope grips to ease installation and removal with insulating gloves.

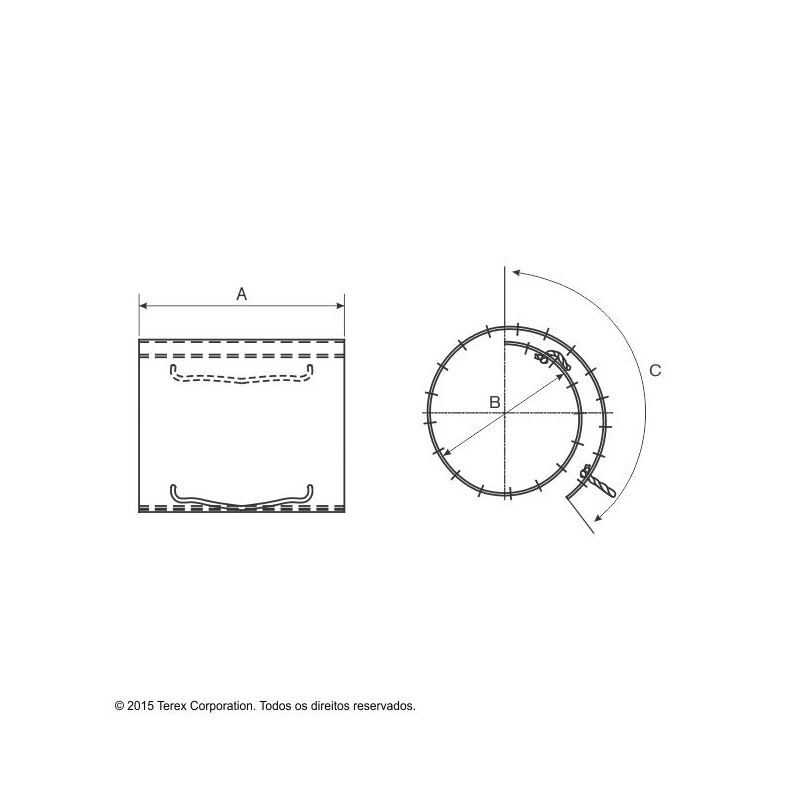

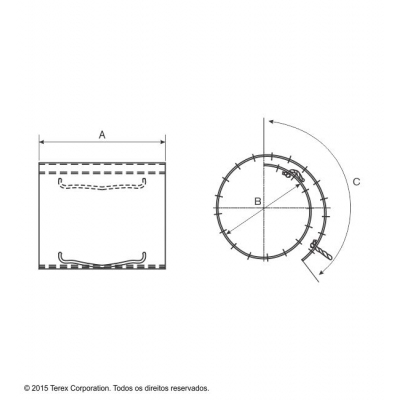

Cat. No.

Dimensions (ft)

Approx. Weight (lb)

(A)

(B)

(C)

 COB11176-1

1.0

0.3

~0.6

0.88

 COB11176-2

2.0

0.3

~0.6

1.76

 COB11176-3

3.0

0.3

~0.6

2.65

 COB11176-4

3.9

0.3

~0.6

3.53

 COB04487-1

1.0

0.5

~0.4

1.10

 COB04487-2

2.0

0.5

~0.4

1.98

 COB04487-3

3.0

0.5

~0.4

2.87

 COB04487-4

3.9

0.5

~0.4

3.97

nominal voltage: 26.4 kV (phase-to-phase)
