Conductor Cover, Pin Insulator Cover, & Disc Insulator Covers

Description

Protective Conductor Covers

The Protective Conductor Covers are those offering a larger protection area on energized parts, therefore they are used more often when performing Hot Line works.

Available in several models to meet the requirements of different types of electrical systems with rated voltages up to 48.3 kV, according to the following models.

The ends are built with male and female designs enabling the firm connection of two or more units, or connection to other types of covers, such as pin insulator covers and disc insulator covers.

Specifically the models RP406-0184 / RC406-0181GA / RC406-0514GA allow connection with rubber insulating conductor covers.

The metallic eye-rings are intended for installation of the covers with the Hot Stick Method, therefore some models are supplied with such connectors. Specifically the covers models RP406-0184 and COB03335-1 represent a solution for linemen installing the covers by the Rubber Glove Method.

By using the universal head attached to the end of the pole, it is possible to previously adjust the installation angle of the cover.

Pin Insulator Cover-Up

The pin insulator Cover-Up are intended to protect the energized conductor attached to the pin or post insulator, normally used together with the Conductor Covers to which they can be attached.

Available in several models, varying according to the application and working voltage class.

Some of them are provided with metallic brackets for installation with Hot Stick Method and some are provided without metallic brackets, for installation with Rubber Glove Method.

Disc Insulator Cover-Up

The disc insulator Cover-Up is designed to protect the energized parts connected to the disc insulator on tension strings.

Provided with end connections, one end connects at the insulator and the other connects the Conductor Cover.

It can be used for both standards insulators and polymeric type.

PROTECTIVE COVER-UP SET

CONDUCTOR / PIN INSULATOR / DISK INSULATOR

Cat. No.

Application

Description

Approx. Weight (lb)

 RP406-0184

Conductor

for conductors up to dia. 25 mm (1"),
only method to contact

3.31

 RC406-0181GA

Conductor

for conductors up to dia. 25 mm (1"),
method for distance

4.41

 RC406-0182L

Pin Insulator

Height 229 mm (0.75 ft). With metallic bracket for hot stick installation

2.65

nominal voltage: 26.4 kV (phase-to-phase)

PROTECTIVE COVER-UP SET

CONDUCTOR / PIN INSULATOR

Cat. No.

Application

Description

Approx. Weight (lb)

 RC406-0514GA

Conductor

for conductors up to dia. 25 mm,
method for distance

4.74

nominal voltage: 36.6 kV (phase-to-phase)

PROTECTIVE COVER-UP SET

CONDUCTOR / PIN INSULATOR / DISK INSULATOR

Cat. No.

Application

Description

Approx. Weight (lb)

 RM4946

Conductor

To be installed up to dia. 25 mm conductor by Hot stick method (1")

2.76

 COB03335-1

Conductor

To be installed up to dia. 25 mm
conductor by barehand method only (1")

1.98

 RM4947

Pin Insulator

With metallic bracket

1.54

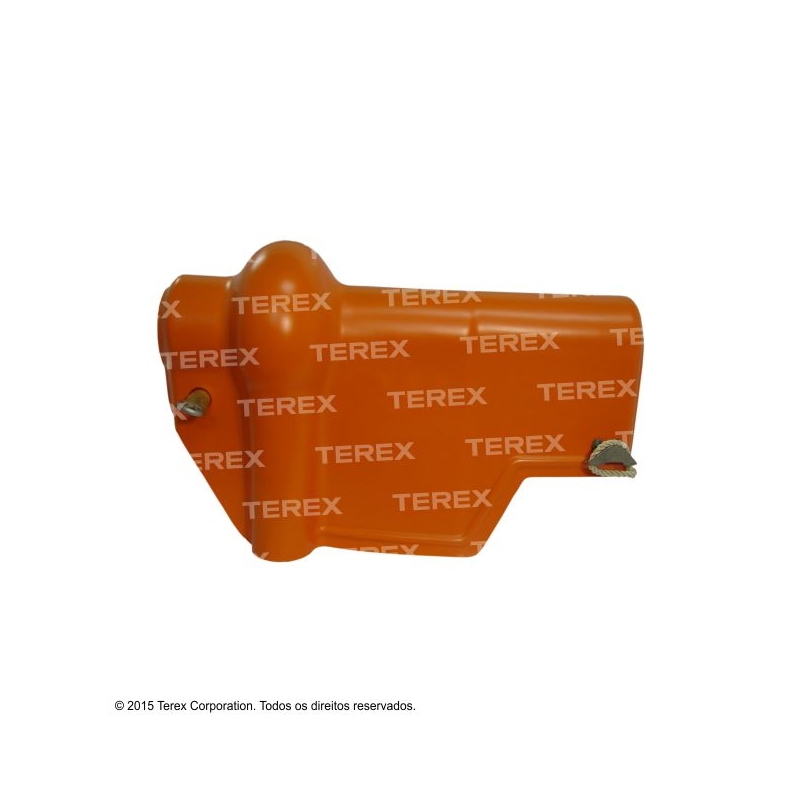

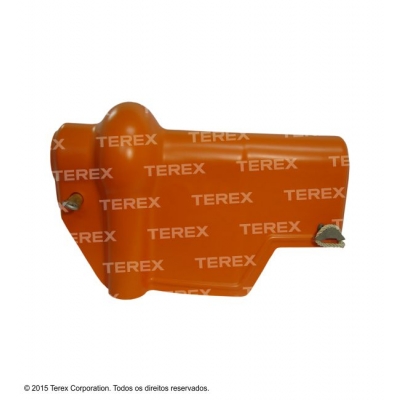

 COB11400-1

Disc Insulator

Dead end, Polymer, Porcelain Rigid
and Disc Insulators to dia. 160 mm (6")

2.87

nominal voltage: 26.4 kV (phase-to-phase)

PROTECTIVE COVER-UP SET

CONDUCTOR  / DISK INSULATOR

Cat. No.

Application

Description

Approx. Weight (lb)

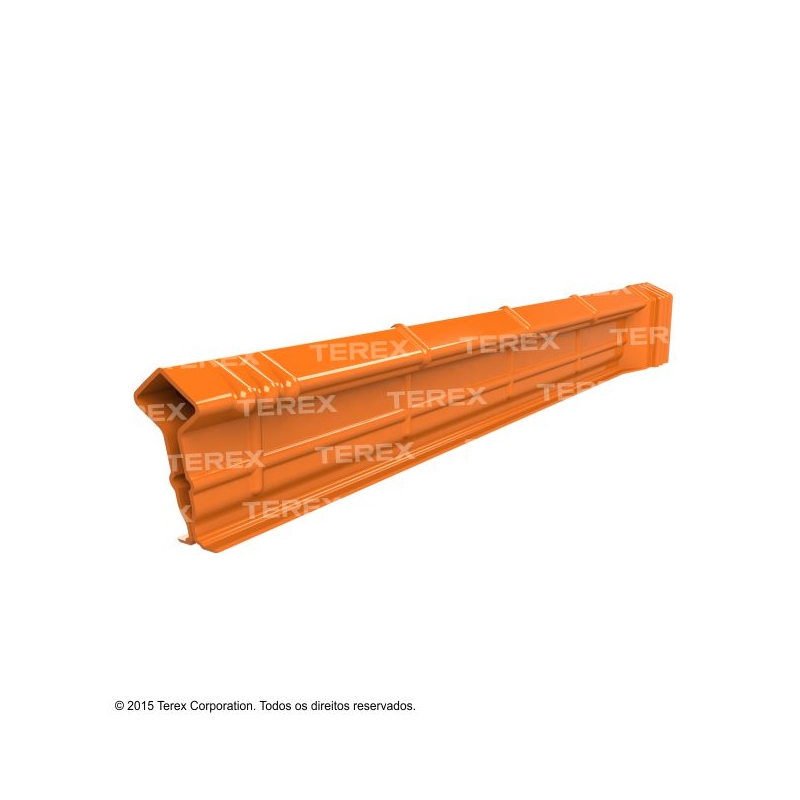

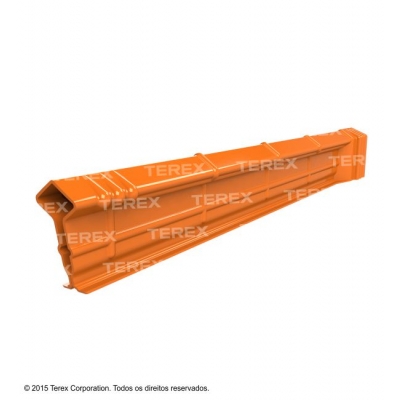

 COB08835-1

Conductor

To be installed up to dia. 25 mm conductor by barehand method only (1")

5.51

 RM4948

Pin Insulator

With metallic bracket

2.87

nominal voltage: 36.6 kV (phase-to-phase)

PROTECTIVE COVER-UP SET

CONDUCTOR / PIN INSULATOR

Cat. No.

Application

Description

Approx. Weight (lb)

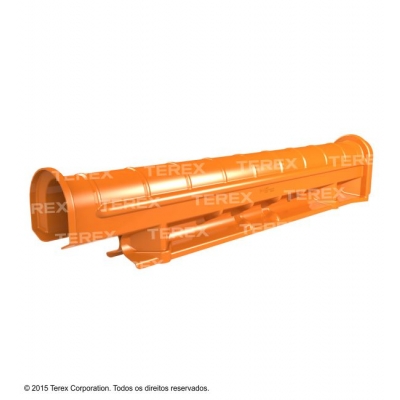

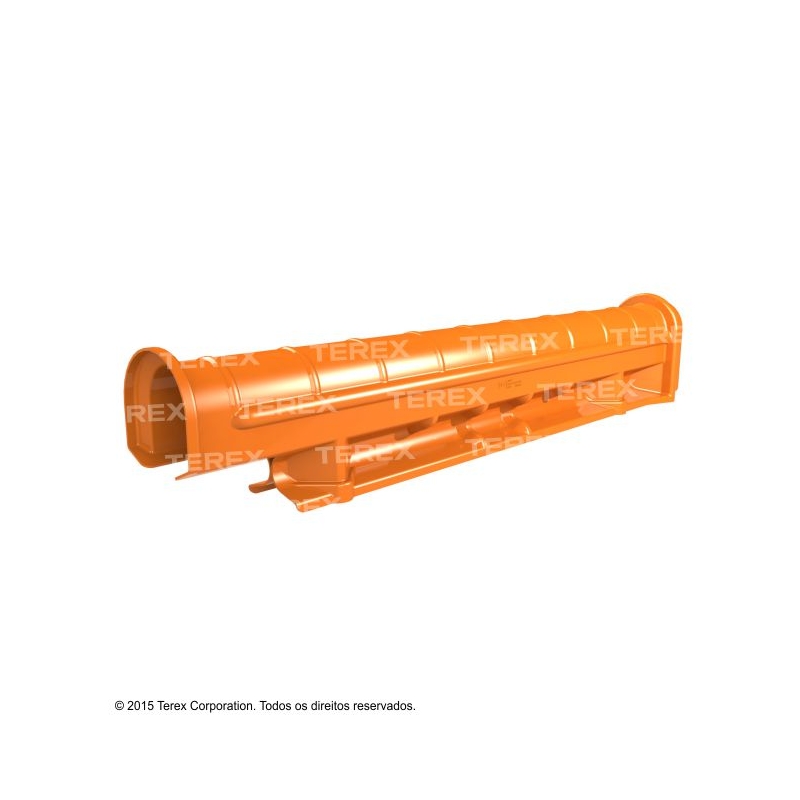

 RM4931

Conductor

To be installed up to dia. 45 mm conductor by hot stick method (1.8")

9.26

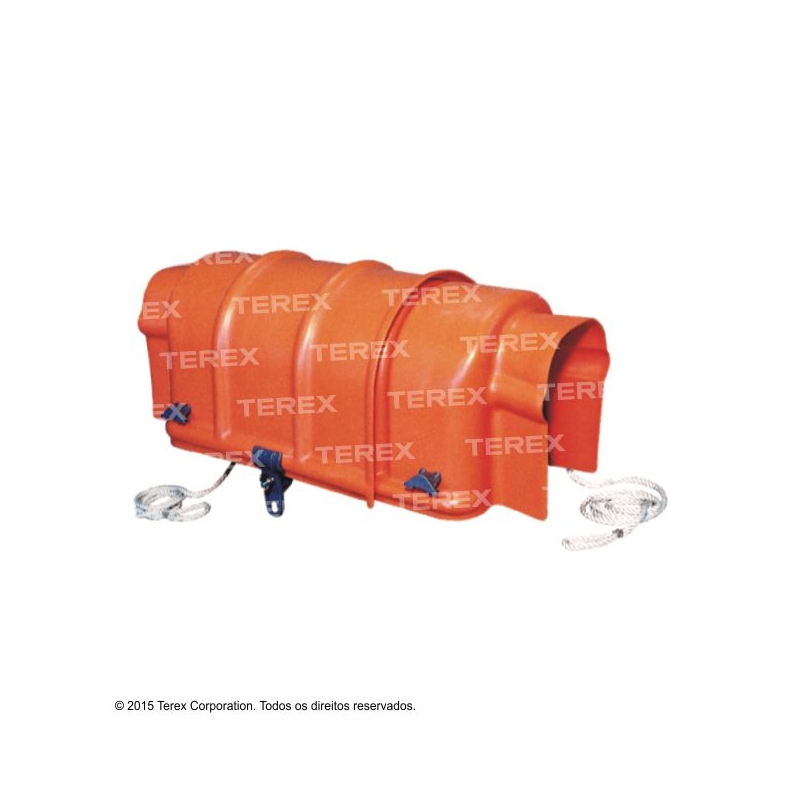

 RC406-0046

Pin Insulator

With holders for hot stick method

8.60

nominal voltage: 48.3 kV (phase-to-phase)
