Hot Line Tester

Description

Electronic instrument to detect the absence of alternating voltage in distribution lines, substations, and transmission lines, with bare conductors.

It is required due to the high voltage spikes when system power is restored. Thus, the electrician can carry out safety procedures while the system is de-energized.

Developed in accordance with the IEC61243-1 international standard, it includes an operation testing system and standby status

·        Frequency of Operation: 50 Hz

HOT LINE TESTER

Cat. No.

Voltage Range

Voltage Class

Color of Tester

Approx.
Weight* (lb)

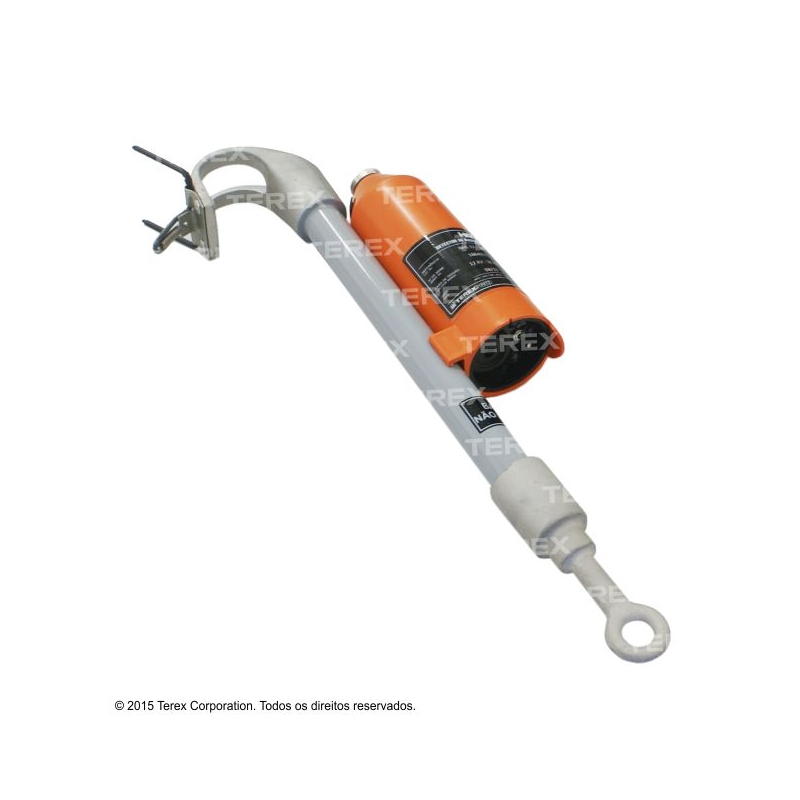

 NHL 10-40

10 kV - 40 kV

Medium

Orange

1,59

 NHL 20-80

20 kV - 80 kV

Medium/High

Orange

1,59

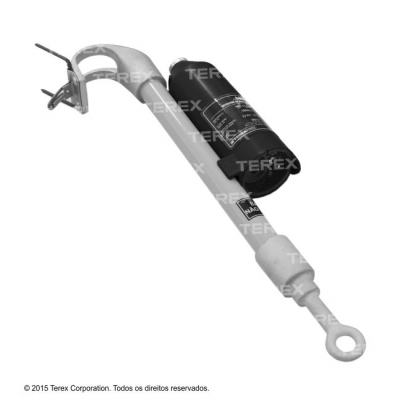

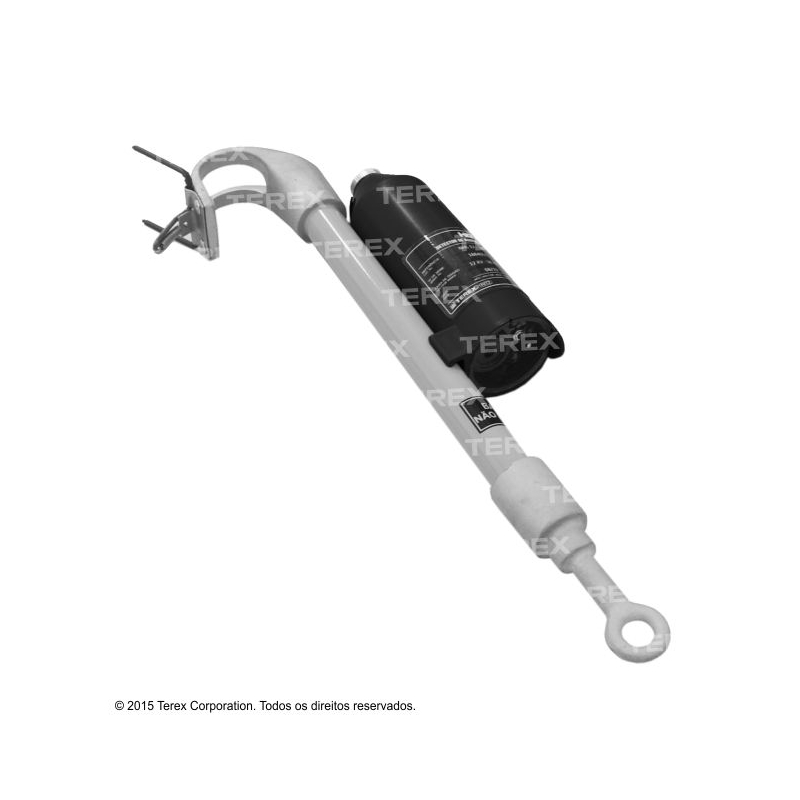

 NHL 60-240

60 kV - 240 kV

High

Black

1,59

*Weight without case

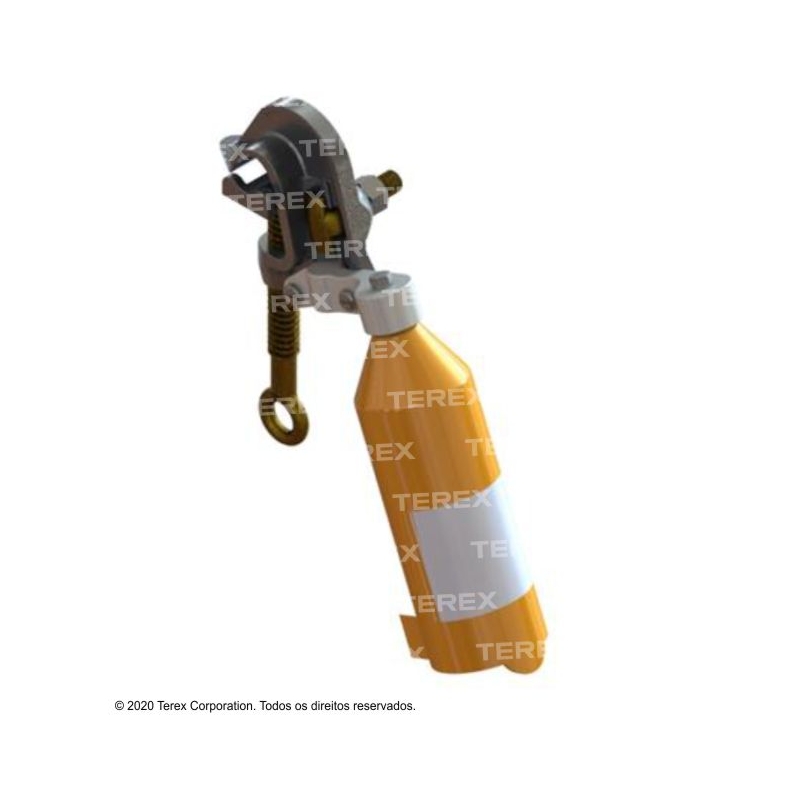

The clamp mounted instrument model can be used in bare conductor networks or compact networks.

HOT LINE TESTER



Cat. No.

Voltage Range

Voltage Class

Color of Tester

Approx.
Weight* (lb)

NHL 10-40/GR

10 kV - 40 kV

Medium

Orange

1,65

*Weight without case
