The Sectional Hot Stick is usually supplied with a universal head, which is suitable for the use of tools for operation of cut-out switches, as well as operational heads and several universal tools, specially designed for various applications, such as:
- knife-switches operation
- fuse-switches operation
- fuse cartridge removal and installation
- voltage tester handling
- installation and removal of temporary grounding equipment and live line clamps
- Life wire installation
- Pruning trees
- Cleaning of Networks
- Light bulb replacement, etc
The Sectional Hot Stick is made of Ritzglas® poles.
In order to make the handling, storage and transportation more practical, the Sectional Hot Stick is composed of standardized sectional elements, which are interchangeable, and attached with quick spring-action locking pins.
The total length suitable for each working voltage class can be obtained by adding more sections, which can be up to 5 sections, per the table below:
Two models of different diameters are available:
- standard model: dia. 38 mm (1.5") handle and middle sections and dia. 32 mm (1.25") top section
- light model: dia. 32 mm (1.25") handle and middle sections and dia. 25 mm (1") top section
SECTIONAL HOT STICKS SECTIONS
|
Cat. No.
|
Description
|
Dia.
(in)
|
Length (ft)
|
Approx. Weight (lb)
|
|
Working
|
Total
|
|

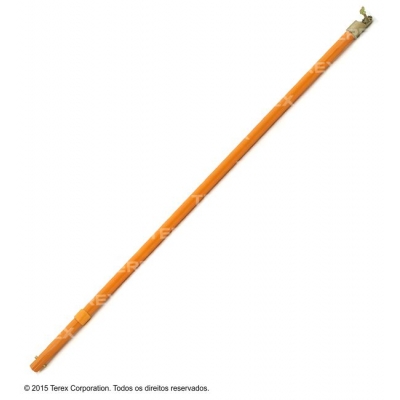

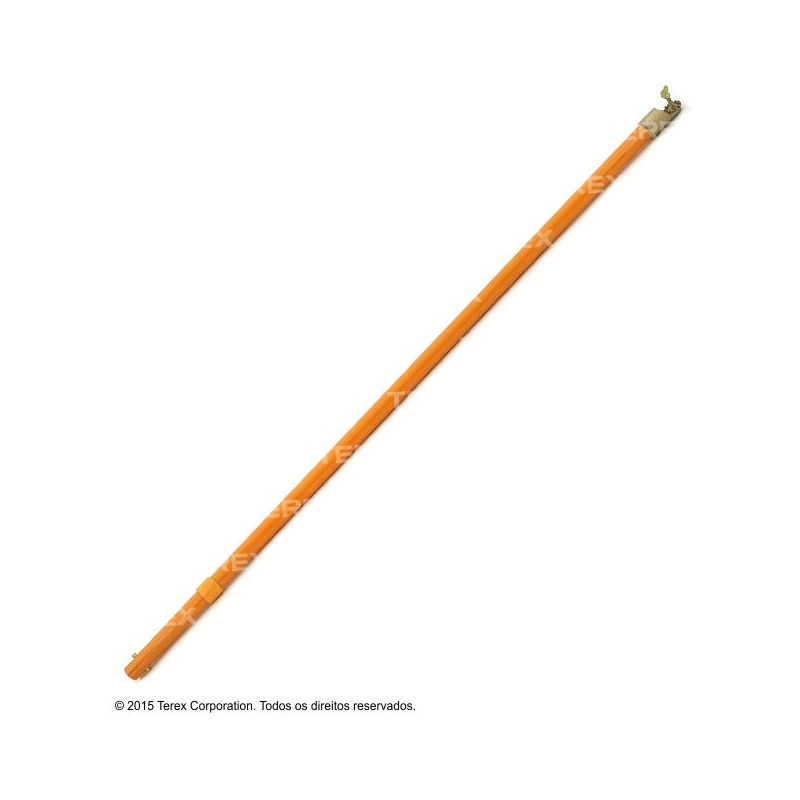

VMR-S
|
Top section
|
1.25"
|
4.1
|
4.8
|
2.54
|
|
VMR/L-S
|
Light top section
|
1.0"
|
4.1
|
4.8
|
1.87
|
|

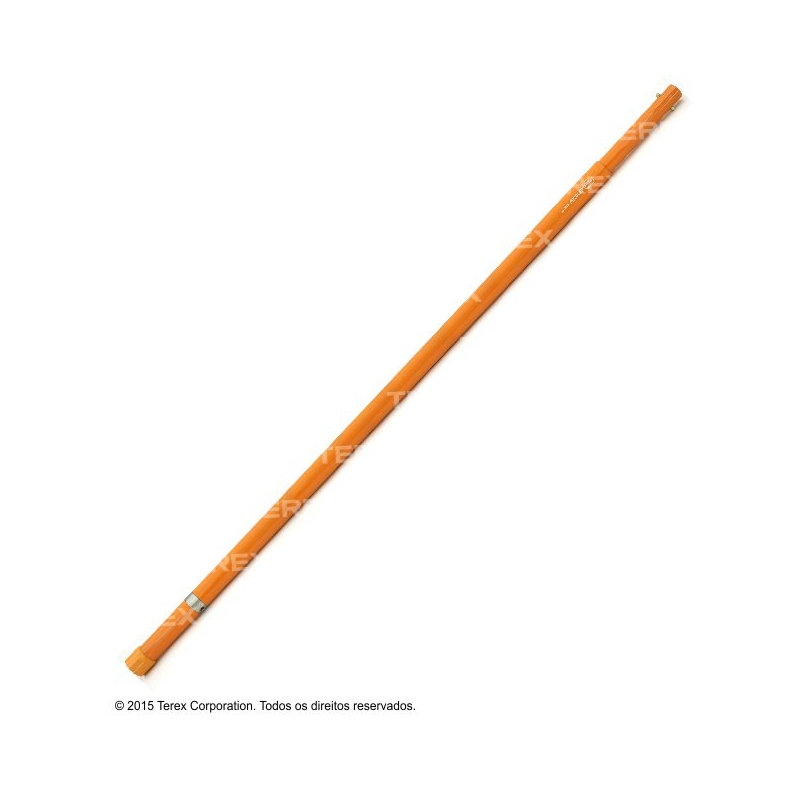

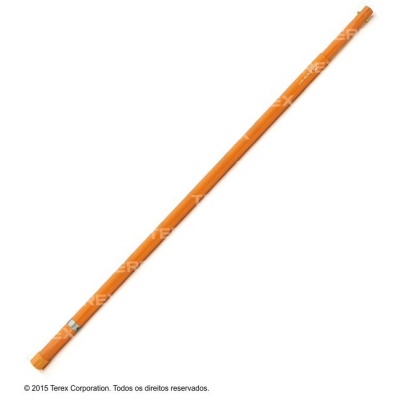

VMR-I
|
Middle section
|
1.5"
|
4.1
|
4.8
|
2.65
|
|
VMR/L-I
|
Light middle section
|
1.25"
|
4.1
|
4.8
|
1.76
|
|

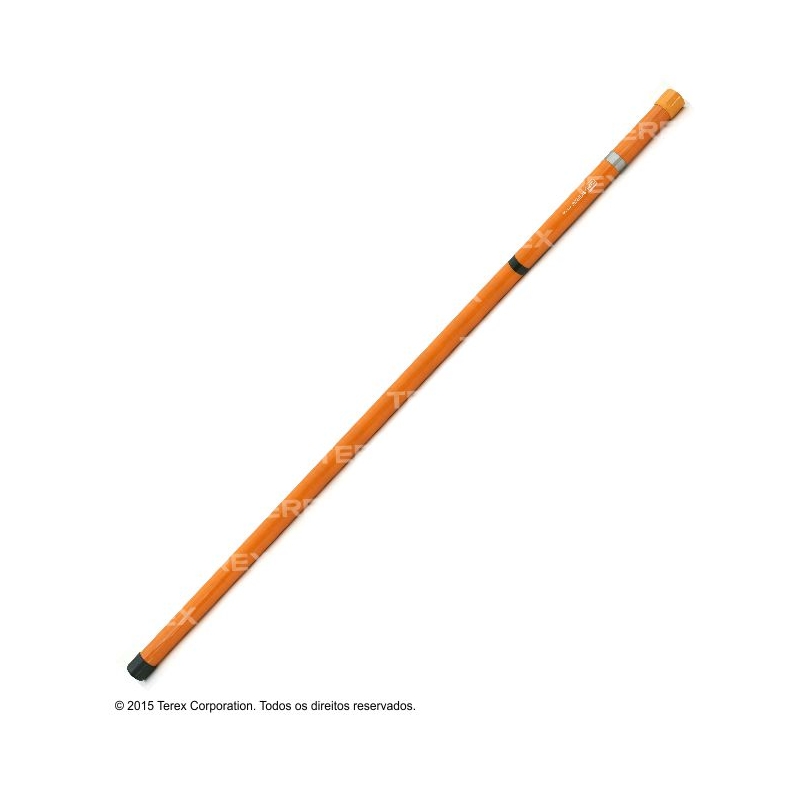

VMR-P
|
Handle section
|
1.5"
|
4.8
|
4.8
|
2.43
|
|
VMR/L-P
|
Light handle section
|
1.25"
|
4.8
|
4.8
|
1.54
|
SECTIONAL HOT STICKS
|
Cat. No.
|
Quantidade de Elementos
|
Max.
Length
(m /ft)
|
Approx. Weight (lb)
|
|
Handle
|
Dia.
|
Middle
|
Dia.
|
Top
|
Dia.
|
Total
|
|
VMR-15
|
1
|
32 (1.25")
|
-
|
-
|
-
|
-
|
1
|
4.10
|
2.09
|
|
VMR-15/L
|
1
|
25 (1")
|
-
|
-
|
-
|
-
|
1
|
4.10
|
1.65
|
|
VMR-30
|
1
|
38 (1.5")
|
-
|
-
|
1
|
32 (1.25")
|
2
|
8.85
|
4.96
|
|
VMR-30/L
|
1
|
32 (1.25")
|
-
|
-
|
1
|
25 (1")
|
2
|
8.85
|
3.42
|
|
VMR-45
|
1
|
38 (1.5")
|
1
|
38 (1.5")
|
1
|
32 (1.25")
|
3
|
13.00
|
7.61
|
|
VMR-45/L
|
1
|
32 (1.25")
|
1
|
32 (1.25")
|
1
|
25 (1")
|
3
|
13.00
|
5.18
|
|
VMR-70
|
1
|
38 (1.5")
|
2
|
38 (1.5")
|
1
|
32 (1.25")
|
4
|
17.06
|
10.25
|
|
VMR-70/L
|
1
|
32 (1.25")
|
2
|
32 (1.25")
|
1
|
25 (1")
|
4
|
17.06
|
6.94
|
|
VMR-90
|
1
|
38 (1.5")
|
3
|
38 (1.5")
|
1
|
32 (1.25")
|
5
|
21.16
|
12.90
|
|
VMR-90/L
|
1
|
32 (1.25")
|
3
|
32 (1.25")
|
1
|
25 (1")
|
5
|
21.16
|
|
For safe procedures, the OSHA standards about minimum distances must be considered.
