U Shape Ladder

Description

Regular and extension ladders with “U”- shape fiberglass siderails rungs with sliding-proof grooves.

UV and weather resistant. Marked with yellow and black caution straps.

Intended for maintenance on de-energized structures or hot stick maintenance on systems of maximum 15 kV voltage class.

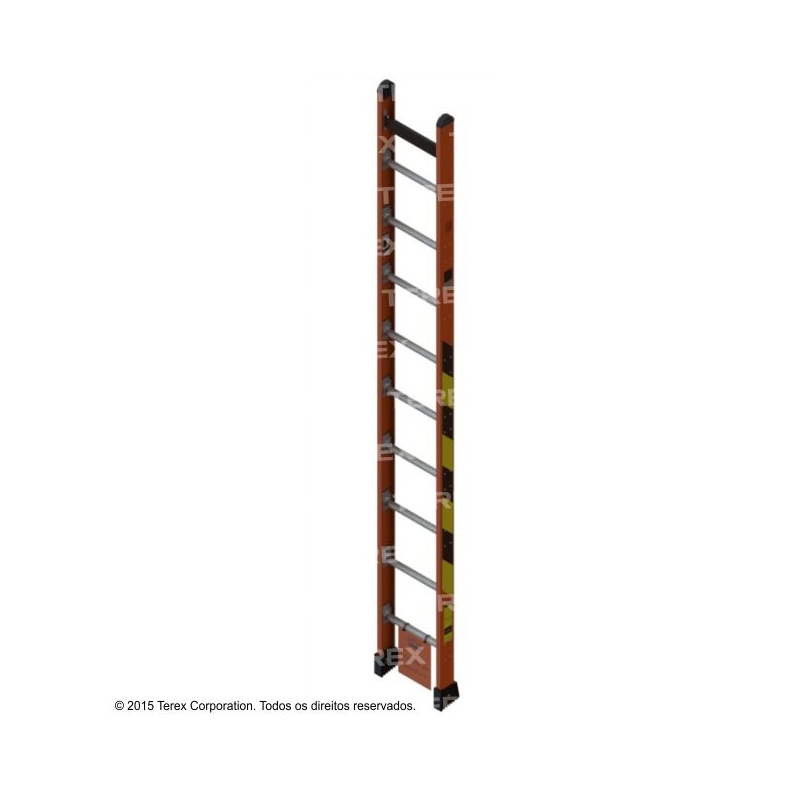

REGULAR LADDER



Cat. No.

Work Length (ft)

Qty. of
Rungs

Approx. Weight (lb)

 ES/PU-29-CN-SB

10.15

9

20.28

 ES/PU-32-CN-SB

11.10

10

22.27

 ES/PU-35-CN-SB

12.10

11

24.25

 ES/PU-38-CN-SB

13.10

12

26.24

 ES/PU-41-CN-SB

14.00

13

28.22

 ES/PU-44-CN-SB

15.00

14

30.20

 ES/PU-47-CN-SB

16.00

15

32.19

 ES/PU-50-CN-SB

17.00

16

34.17

 ES/PU-53-CN-SB

18.00

17

36.16

 ES/PU-56-CN-SB

19.00

18

38.14

 ES/PU-59-CN-SB

20.00

19

40.12

 ES/PU-62-CN-SB

21.00

20

42.11

 ES/PU-65-CN-SB

22.00

21

44.09

Width between siderails: 320 mm (1.05 ft)

Cat. No.

Work Lenght (ft)

Nº de
Degraus

Peso Aprox. (kg)

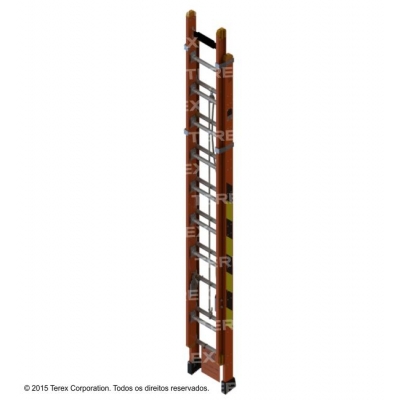

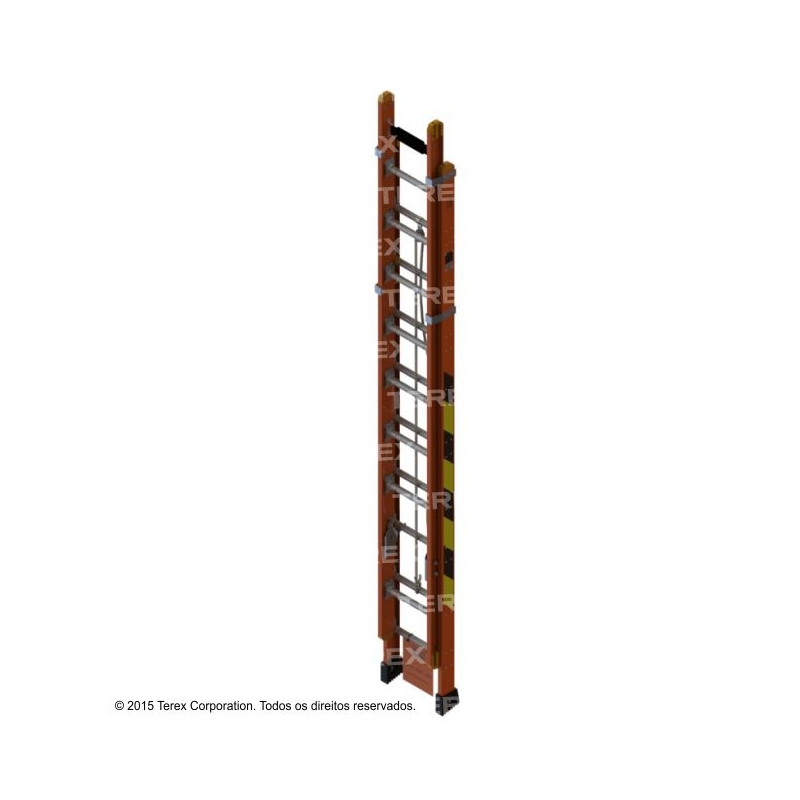

Retracted

Extended

 EE/PU-35-CN-SB

8.80

12.00

11

35.27

 EE/PU-41-CN-SB

9.70

14.00

13

39.02

 EE/PU-47-CN-SB

10.80

16.00

15

40.79

 EE/PU-53-CN-SB

12.00

18.00

17

46.74

 EE/PU-59-CN-SB

13.10

20.00

19

50.71

 EE/PU-65-CN-SB

14.00

22.00

21

54.67

 EE/PU-71-CN-SB

15.00

24.00

23

58.42

 EE/PU-77-CN-SB

16.00

26.00

25

62.39

 EE/PU-84-CN-SB

17.00

28.00

27

66.14

 EE/PU-90-CN-SB

18.00

30.00

29

69.89

 EE/PU-97-CN-SB

20.00

33.00

33

74.96

Width between side rails:

Top Section - 293 mm (0.95 ft)

Bottom Section - 320 mm (1.05 ft)

Distance between rungs: 300 mm (1 ft)
